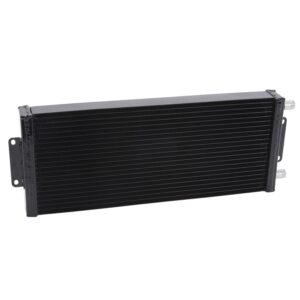

Supercharger Heat Exchanger

Edelbrock heat exchanger part #15569 is a dual pass/single row design and delivers 44,600 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #is a Dual Pass/Single Row Universal Heat Exchanger with the following dimensions (24in. W x 16.5in. H x 2.12in. D) with 4 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

Additional Attributes:

GTIN: 00085347155699
BTU Rating: 44600 btu/hr
Construction: Dual Pass
Finish: Black Powder Coated
Grade Type: Performance
Inlet Port Outside Diameter: 0.75
Inlet Port Quantity: 1
Length: 24
Material: Aluminum
Mounting Hardware Included: No
Mounting Hole Diameter: M6 x 1.0
Mounting Hole Quantity: 4
Outlet Port Outside Diameter: 0.75
Outlet Port Quantity: 1
Quantity: Sold Individually
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Row Quantity: Single
Thickness: 2.12
Width: 16.5

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 31 x 21 x 4 inches
Weight: 10 PG
