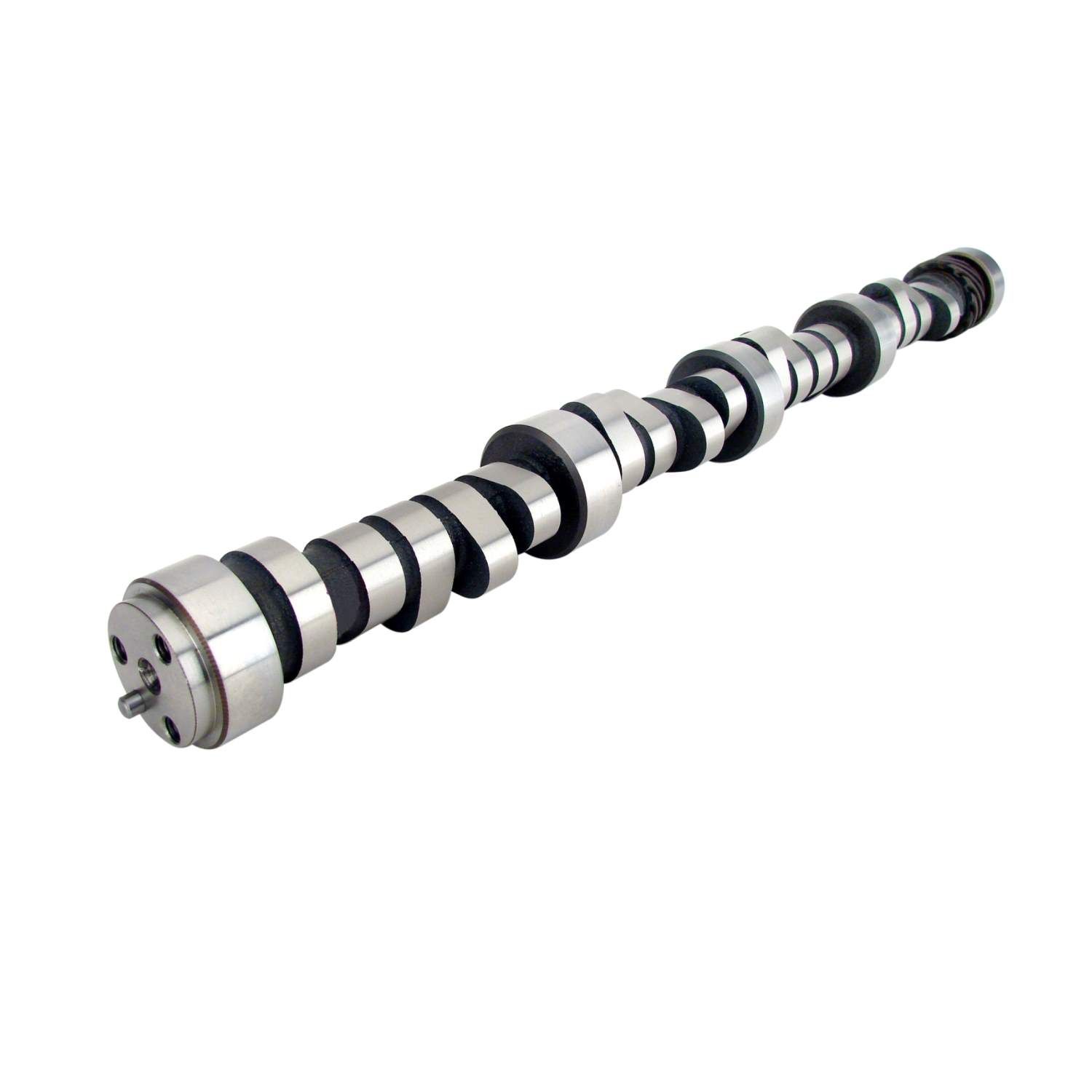

Xtreme Marine 254/260 Hydraulic Roller Cam for Chevrolet Big Block GEN VI

Additional Attributes:

GTIN: 00036584082378
Grind Number: XM308HR
Advertised Exhaust Duration: 314
Advertised Intake Duration: 308
Amazon ASIN: N/A
Assembly Lubricant Included: No
Basic Operating RPM Range: 3,500-6,500
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade: CL01-461-8
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Camshaft Series: Xtreme Marine
Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
Exhaust Duration at .050 inch Lift: 260
Exhaust Valve Lift: 0.575
Grind Number: XM308HR
Intake Duration at .050 Inch Lift: 254
Intake Valve Lift: 0.575
K-Kit Upgrade: K01-461-8
Lifter Type: Hydraulic Roller
Lifters Included: No
Lobe Separation: 112
SK-Kit Upgrade: SK01-461-8
Usage: Marine
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.2 x 2.9 x 2.7 inches
Weight: 10.8027 PG
