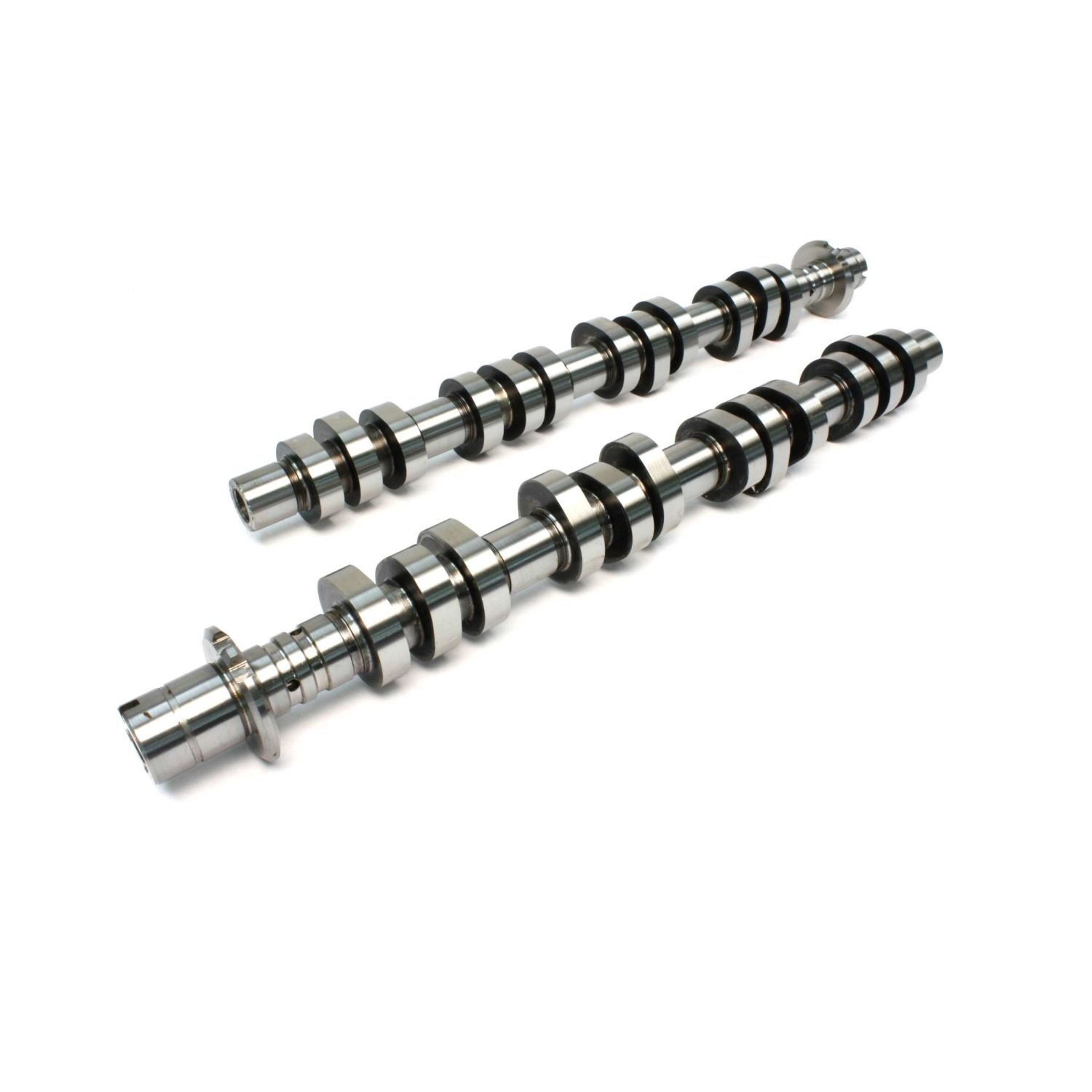

XFI VSR 214/227 Hydraulic Roller Cams for Ford 4.6/5.4L Modular 3 Valve

Additional Attributes:

GTIN: 00036584131762
Grind Number: XE253H-14
Advertised Exhaust Duration: 270
Advertised Intake Duration: 253
Amazon ASIN: B001O0BYA0
Assembly Lubricant Included: No
Basic Operating RPM Range: 850-6,200
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller Swinging Follower
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: XFI VSR (Valve Springs Required)
Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
Exhaust Duration at .050 inch Lift: 227
Exhaust Valve Lift: 0.47
Grind Number: XE253H-14
Intake Duration at .050 Inch Lift: 214
Intake Valve Lift: 0.481
Lifter Type: Hydraulic Roller Swinging Follower
Lifters Included: No
Lobe Separation: 114
Usage: Street/Performance
Valve Springs Required: Yes

Extended Information:

Emissions : 2
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 28.34 x 6.45 x 3.38 inches
Weight: 15.4 PG
