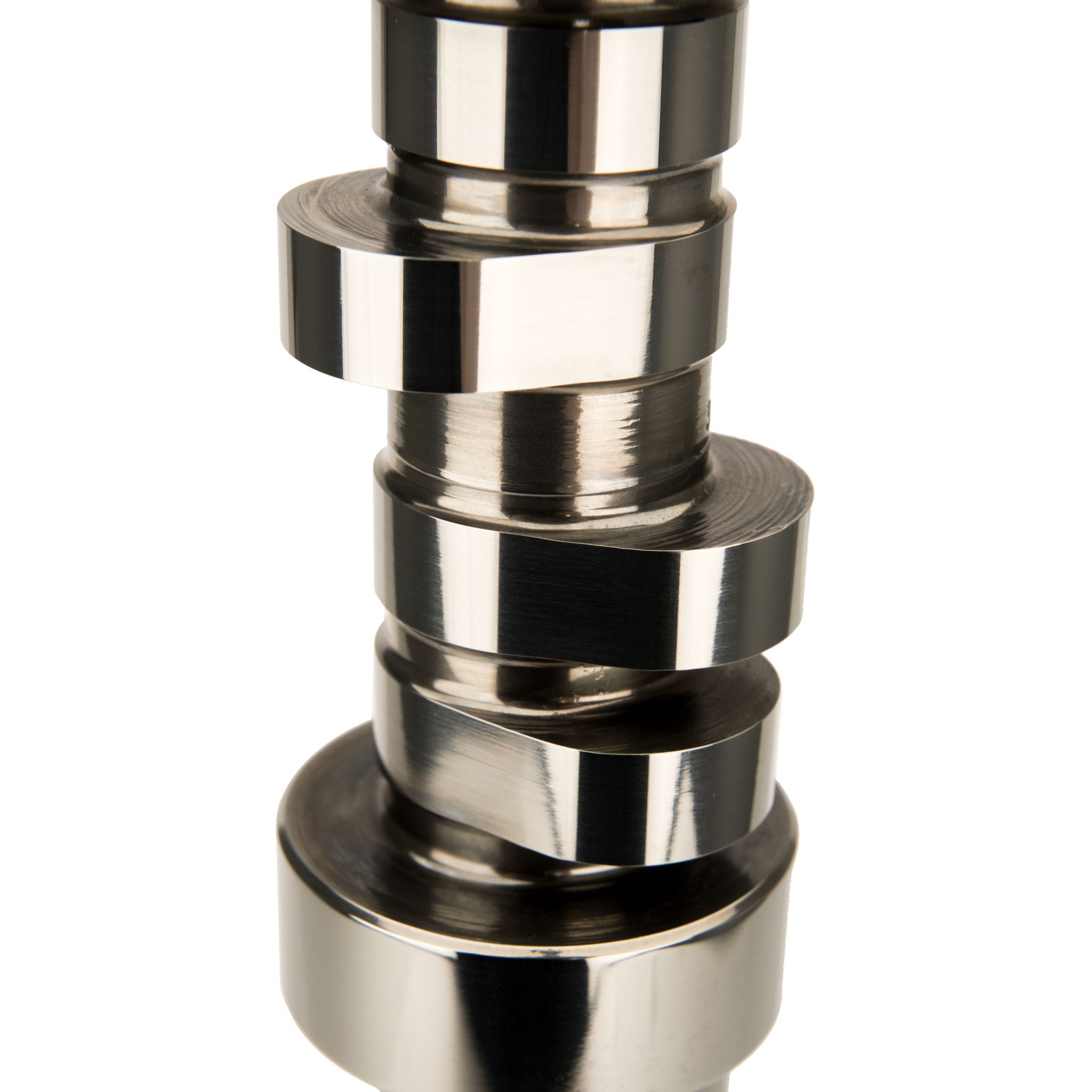

XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LS GEN IV

Additional Attributes:

GTIN: 00036584237907
Grind Number: 266PIIHR14
Advertised Exhaust Duration Deactivation Cylinders: 290
Advertised Exhaust Duration Non-Deactivation Cylinders: 278
Advertised Intake Duration Deactivation Cylinders: 278
Advertised Intake Duration Non-Deactivation Cylinders: 266
Amazon ASIN: B0066SUNFW
Assembly Lubricant Included: No
C.A.R.B. E.O. Number: N/A
C.A.R.B. E.O.: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: XFI AFM
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 228
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 226
Exhaust Valve Lift Deactivation Cylinders: 0.5
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Grind Number: 266PIIHR14
Intake Duration at .050 Inch Lift Deactivation Cylinders: 216
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 214
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Lifters Included: No
Lobe Separation: 114
Usage: Street/Performance
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 3 x 2.75 inches
Weight: 10 PG
