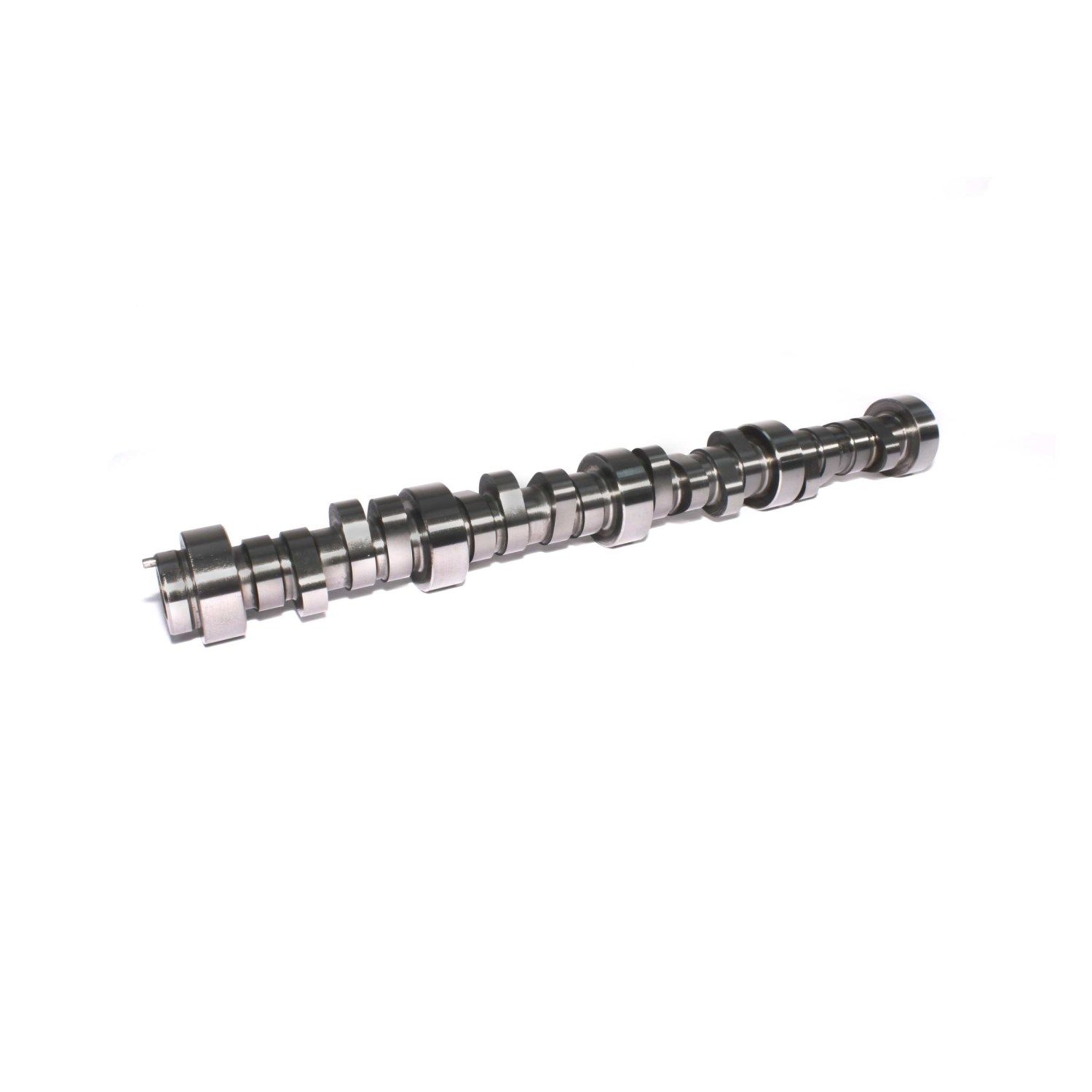

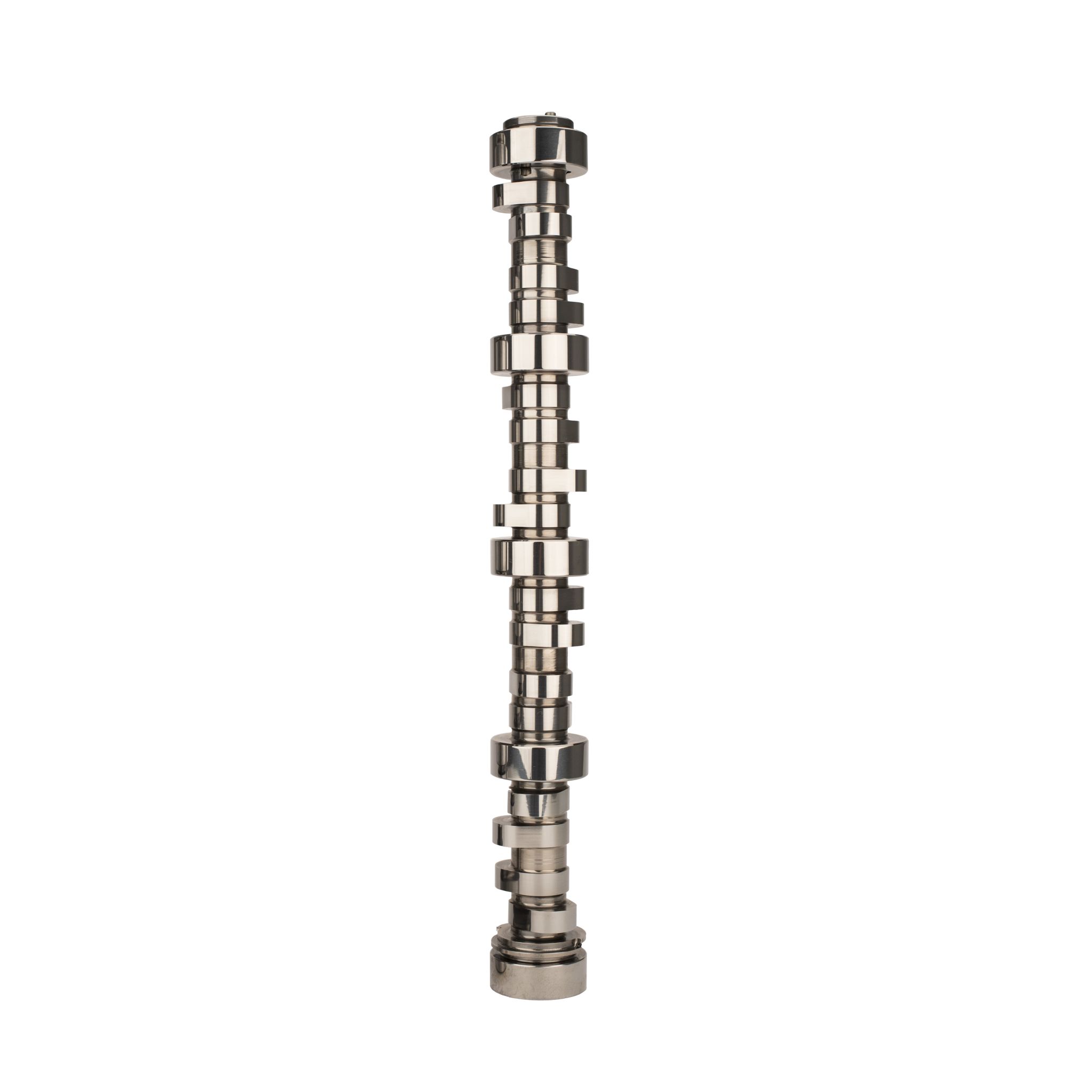

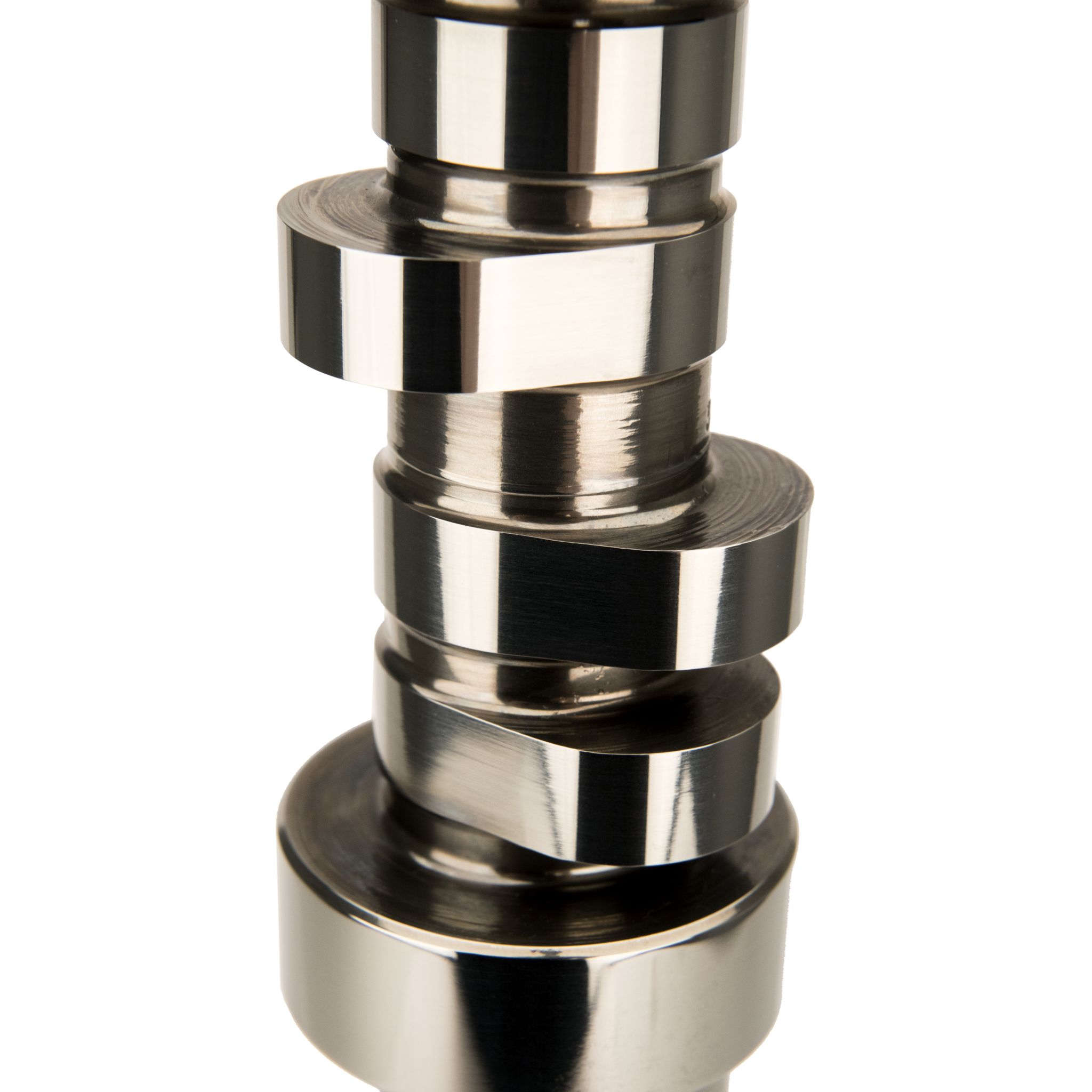

XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT

Additional Attributes:

GTIN: 00036584238003
Grind Number: 262AFM15
Advertised Exhaust Duration Deactivation Cylinders: 286
Advertised Exhaust Duration Non-Deactivation Cylinders: 274
Advertised Intake Duration Deactivation Cylinders: 275
Advertised Intake Duration Non-Deactivation Cylinders: 262
AFM Delete Camshaft Core Prefix: 146-
Amazon ASIN: B0066ST5MO
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,600-6,300
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: XFI AFM
Engine Family: GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014)
Engine RPO Compatibility: LS4, L76, L77, LH6, LY5, LMG, LFA
Exhaust Duration at .050″ Deactivation Cylinders: 224
Exhaust Duration at .050″ Non-Deactivation Cylinders: 222
Exhaust Valve Lift Deactivation Cylinders: 0.5
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Grind Number: 262AFM15
Intake Duration at .050″ Deactivation Cylinders: 212
Intake Duration at .050″ Non-Deactivation Cylinders: 210
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Lifter Type: Hydraulic Roller
Lifters Included: No
Lobe Separation: 115
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 3 x 2.75 inches
Weight: 10 PG
