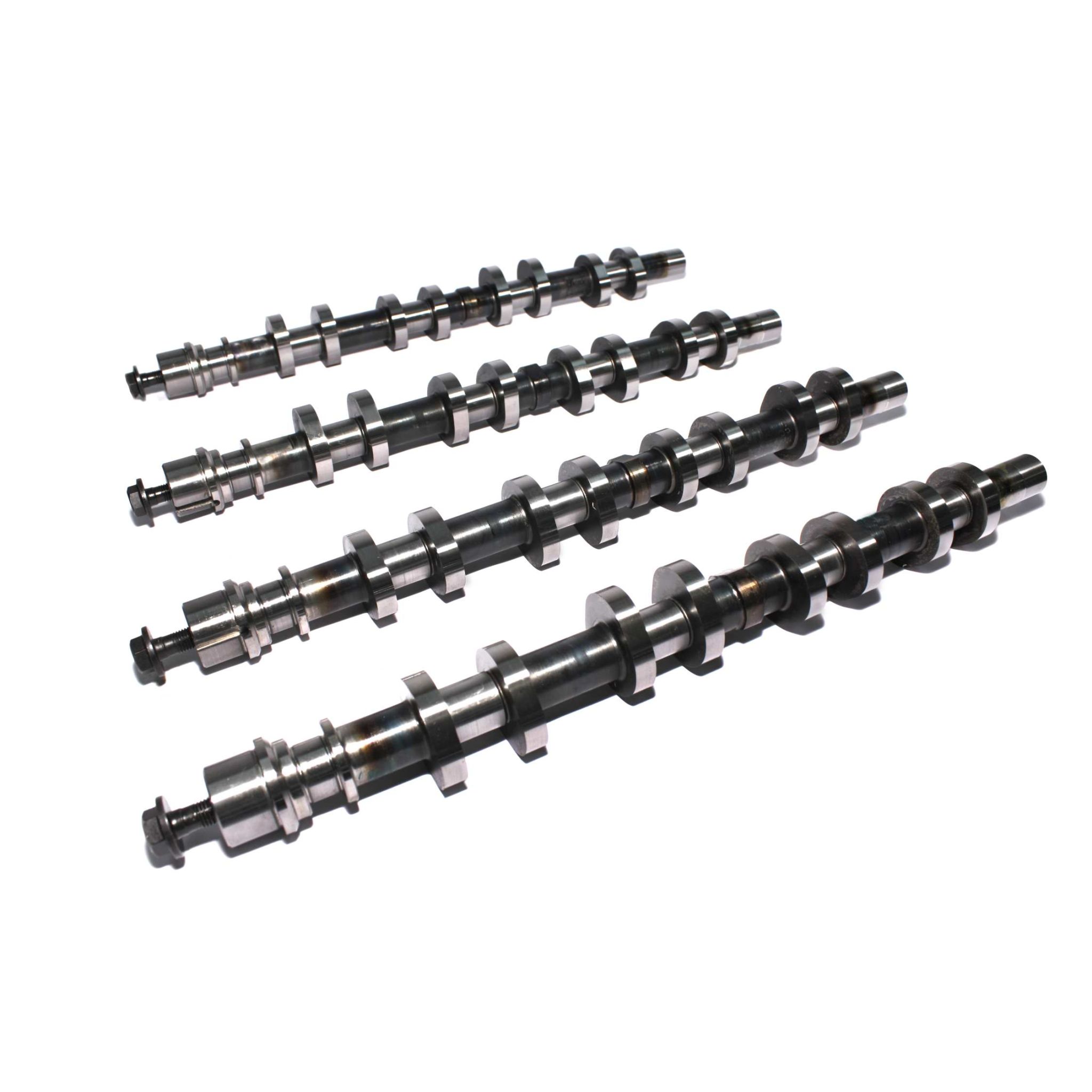

XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V

Additional Attributes:

GTIN: 00036584096740
Grind Number: XE258BH-116
Advertised Exhaust Duration: 259
Advertised Intake Duration: 257
Amazon ASIN: B000P5G4L4
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,200-5,800
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller Swinging Follower
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: XE-R Supercharged and Nitrous
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Exhaust Duration at .050 inch Lift: 224
Exhaust Valve Lift: 0.45
Grind Number: XE258BH-116
Intake Duration at .050 Inch Lift: 222
Intake Valve Lift: 0.475
Lifter Type: Hydraulic Roller Swinging Follower
Lifters Included: No
Lobe Separation: 116
Usage: Street/Performance
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.5 x 6.12 x 6.12 inches
Weight: 28.2 PG
