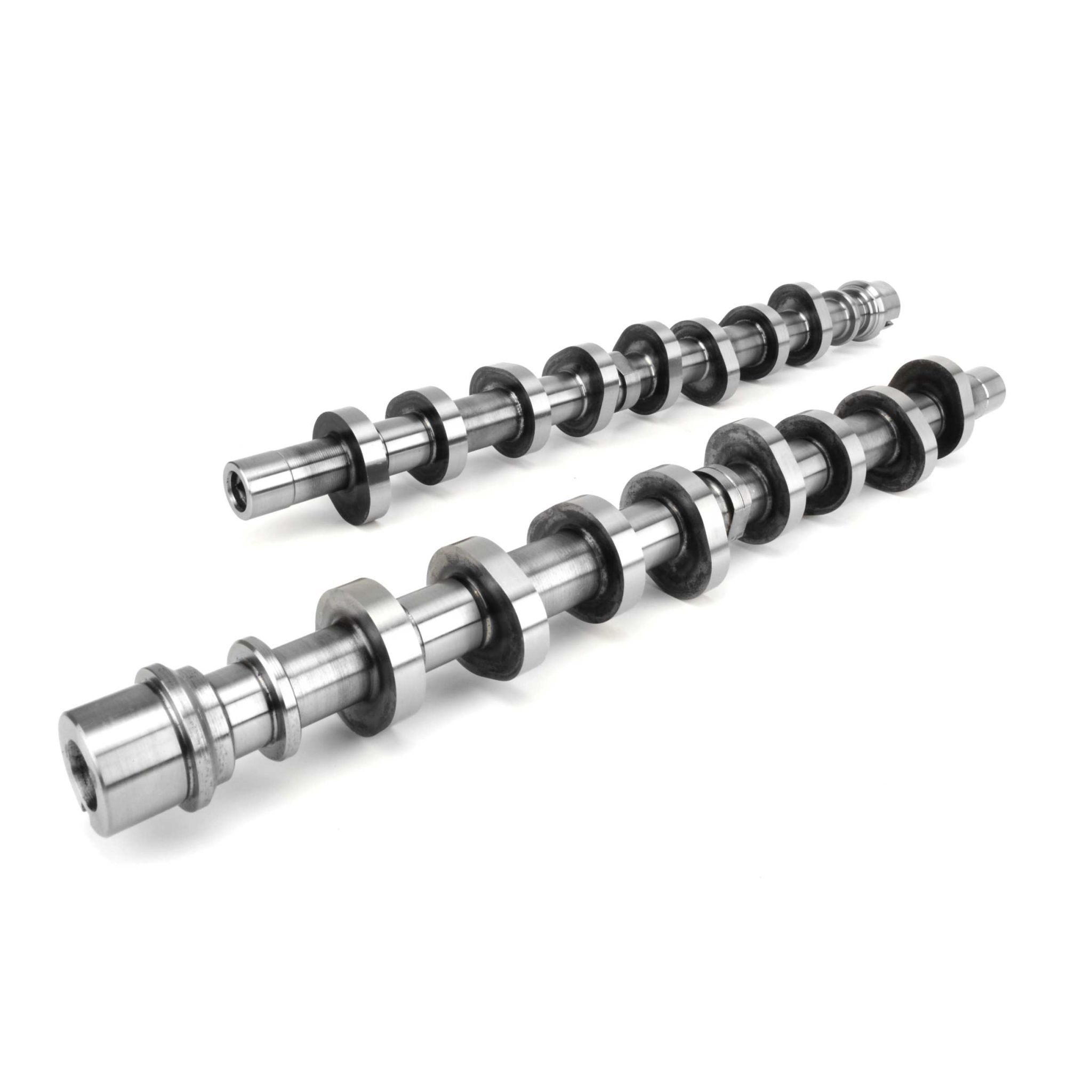

XE 234/238 Hydraulic Roller Cams Ford 4.6/5.4L Modular 2 Valve w/ PI Heads

Additional Attributes:

GTIN: 00036584072737
Grind Number: XE270AH
Advertised Exhaust Duration: 274
Advertised Intake Duration: 270
Amazon ASIN: B000CIU9N8
Assembly Lubricant Included: No
Basic Operating RPM Range: 1,800-5,800
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller Finger Follower
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Camshaft Series: Xtreme Energy
Engine Family: Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)
Exhaust Duration at .050 inch Lift: 238
Exhaust Valve Lift: 0.55
Grind Number: XE270AH
Intake Duration at .050 Inch Lift: 234
Intake Valve Lift: 0.55
Lifter Type: Hydraulic Roller Finger Follower
Lifters Included: No
Lobe Separation: 113
Usage: Street/Performance
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25 x 6 x 3 inches
Weight: 13.5 PG
