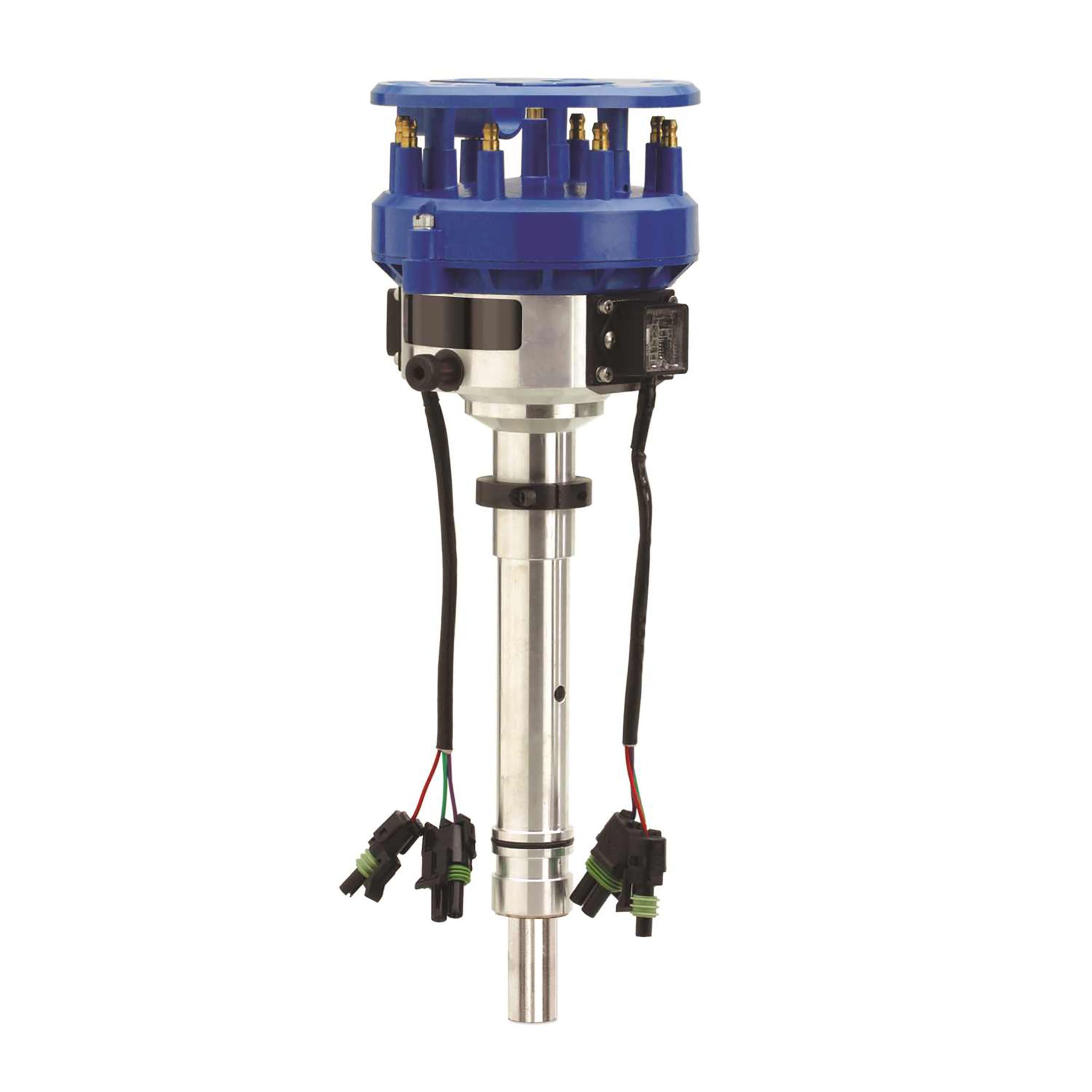

XDi Pro Race Distributor for Chevrolet Small and Big Block

When it comes to high end circle track racing where engines demand the most stable timing and reliable trigger signals, FAST XDi Pro Race Distributors are the only choice. These distributors are engineered from the inside-out to deliver the precise control and superspeedway endurance race teams require. For the most reliable and accurate trigger signal, we incorporated dual optical trigger pickups. The signal from these optical pickups is then synthesized into a common magnetic trigger signal that can be used with most racing ignitions such as the E6 series. A stainless steel trigger wheel is incorporated which also allows for modifications so a custom cylinder-to-cylinder timing order could be created. The wiring is routed into Weatherpak connectors that will plug into common wiring harnesses for sealed and locked connection. For high RPM endurance, the stainless steel distributor shaft rides in a ball bearing guide with a double lip seal for advanced oil and vacuum control. Each distributor is supplied with a bolt-down distributor cap, wire retainer and rotor. A FAST E6 race series ignition control is required. Distributor gear is NOT supplied.

Additional Attributes:

GTIN: 00021174041323
Advance Type: None, Locked Out
C.A.R.B. EO Number: N/A
C.A.R.B. Exempt?: No
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cap Color: Black
Cap Style: Male/HEI
Computer-Controlled Compatible: Yes
Distributor Gear Rotation: Clockwise
Engine Family/Fitment: SBC / BBC
Housing Finish: Natural
Housing Material: Billet Aluminum
Ignition Box Required: Yes
Includes Distributor Gear: No
Mechanical Tach Drive: No
Shaft Diameter: 0.491
Shaft Material: Stainless Steel
Slip Collar: Yes
Trigger Type: Dual Optical Triggers

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Discontinued

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 17.5 x 8 x 10.5 inches
Weight: 5.4 PG
