X-Line Performance Aluminum Radiator, fits Subaru WRX/STI 2001-2007

When properly maintained, the Subaru flat-four is well known for its substantial power and impressive reliability. Proper regulation of coolant temperature is key to extending the life of your EJ-powered Subaru. Highly modified turbocharger setups and aggressive driving can result in high temperatures, which increases wear on internal engine components. The X-Line Performance Aluminum Radiator is engineered specifically for the 2001-2007 Subaru WRX and STI and features a large three-row core and full aluminum construction. This design yields optimal temperatures even in the most demanding environments.–This radiator also features a 100% brazed aluminum core with TIG-welded end tanks for increased durability, longevity, and a substantial increase in coolant capacity. The large three-row core enhances surface contact, resulting in improved efficiency, improved heat transfer, and lower engine coolant temperatures for your Subaru. The Mishimoto Subaru WRX and STI radiator includes a high-pressure 1.3 bar radiator cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. Additionally, a second radiator cap is included for use on the expansion tank. Included with this radiator is a Mishimoto magnetic drain plug that removes metal fragments circulating in the coolant system, thus further protecting your engine. Whether you are looking for a reliable stock replacement radiator or a heat exchanger efficient enough for track abuse, the Mishimoto Subaru WRX and STI X-Line Performance Aluminum Radiator is an ideal choice. As with all our products, this radiator is backed by the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00748354803297
Install Difficulty: 3
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Large three-row aluminum core provides additional coolant capacity, substantial coolant surface contact, and optimal coolant temperatures even in the most demanding environments
SellingPoint02: Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
SellingPoint03: Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
SellingPoint04: Increased coolant capacity directly results in improved cooling efficiency

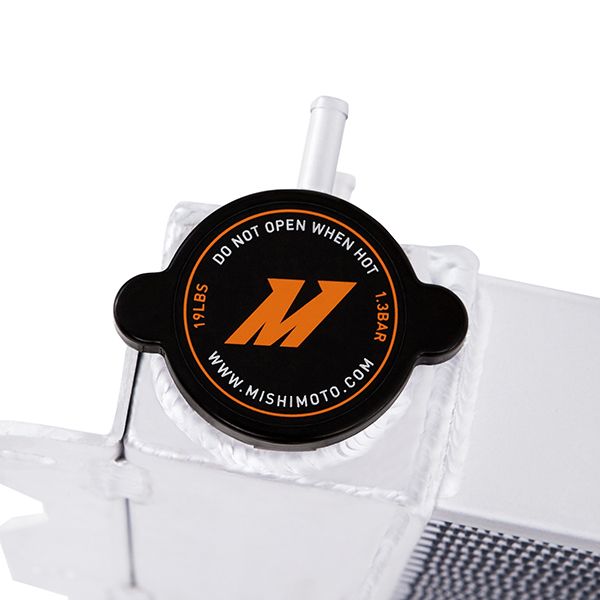

SellingPoint05: Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system
SellingPoint06: Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
SellingPoint07: Includes magnetic drain plug to prevent metal fragments and debris from circulating in coolant system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Saab 9-2X H4 (2.0L) 2005–Saab 9-2X H4 (2.5L) 2006–Subaru WRX H4 (2.0) 2002-2005–Subaru WRX H4 (2.5) 2006-2007–Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Chassis Codes: GD
TechSpec Core Height (in): 27.24
TechSpec Core Length (in): 13.54
TechSpec Core Thickness (in): 2
TechSpec DPI: 2703
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: EJ205–EJ255–EJ257
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: (1) Mishimoto Radiator–(1) Mishimoto Two-Way Radiator Cap–(1) Mishimoto One-Way Radiator Cap–(1)1/16-inch NPT Plug–(1) Magnetic Drain Plug–Fan Mounting Hardware–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 1.5
TechSpec Material: N/A
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.–Caution–The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).–It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact support@mishimoto.com.– Due to the additional thickness of our 3-row X-Line radiator, trimming the upper hose may be necessary.–For 2002-2003 Subaru WRX models built before 7/2002, remove fill neck overflow nipple and replace with 1.5875mm NPT plug provided.
TechSpec Outlet (in): 1.5
TechSpec Overall Height (in): 28.4
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (ins): 2.5
TechSpec Rows: 3

Extended Information:

Emissions : 4
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 31.5 x 7 x 23 inches
Weight: 30.55 PG

PDF:

MMRC-13-ONWY_Install-Guide
