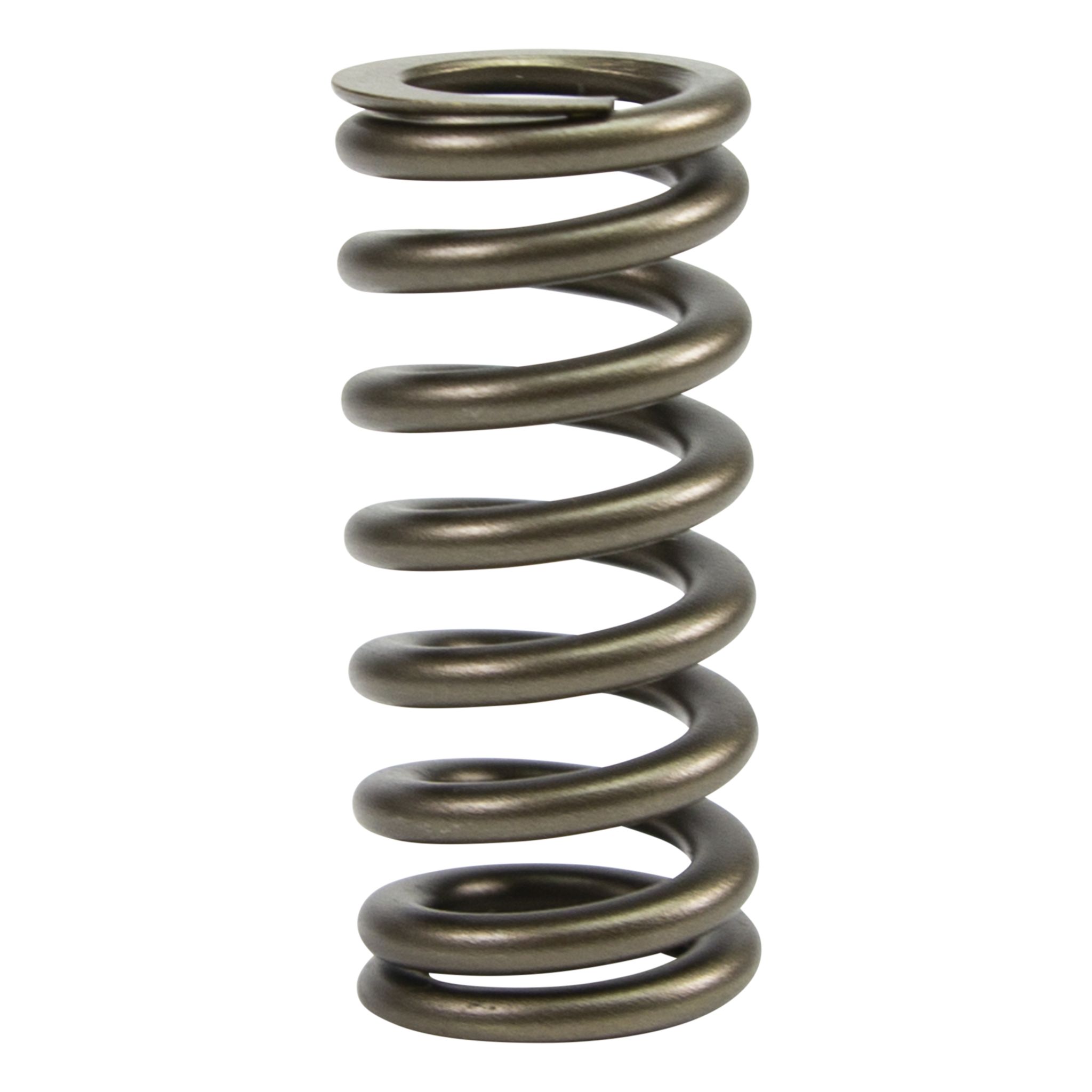

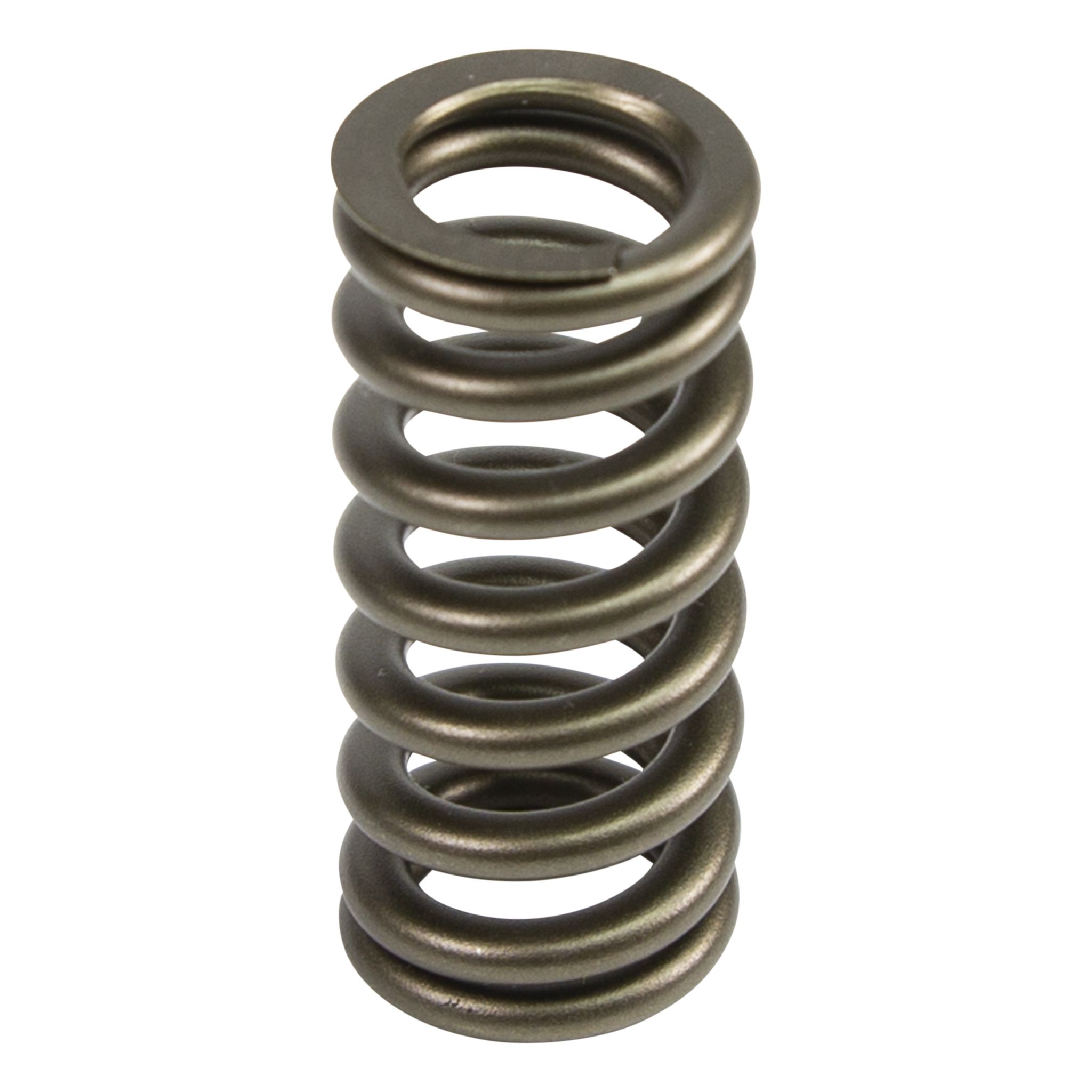

Valve Spring for Powerstroke 6.0/6.4

Additional Attributes:

GTIN: 00036584413448
Bottom Inside Diameter: 0.647
Bottom Outside Diameter: 1.01
Coil Bind Height: 1.19
Compatible Retainers: –
Compatible Shims: 4809
Compatible Spring Seat / Seals: P/N 535
Damper: –
Installed Height: 1.77
Number of Springs: Single
Open Load: 300@1.270
Seat Pressure: 140
Spring Rate: 320
Spring Style: Straight
Top Inside Diameter: 0.647
Top Outside Diameter: 1.01

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 4 x 0.9 inches
Weight: 0.3 PG
