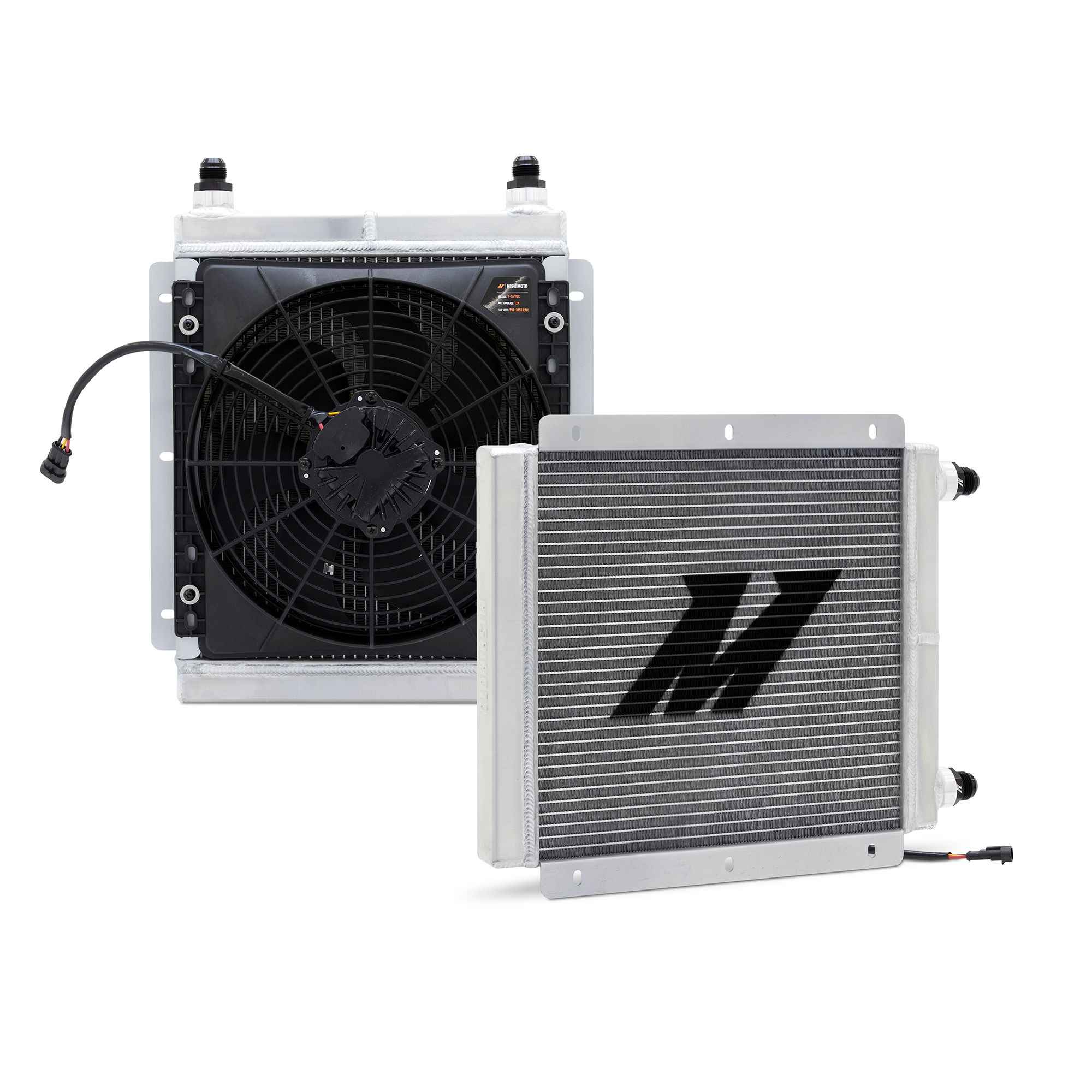

Universal Heat Exchanger Kit, With Integrated 12″ Brushless Fan

Handle your cooling needs with confidence using the Mishimoto Universal Heat Exchanger Kit. Designed to support a wide range of applications, this heat exchanger is the perfect solution for electric vehicle systems, coolant systems, oil cooling, and more. It features a high-efficiency tube-and-fin core engineered to handle high pressure while delivering reliable, long-term performance. A powerful 12” brushless fan rated for 1,177 CFM comes pre-mounted in an integrated shroud to ensure optimal airflow and superior heat dissipation in even the most demanding environments. This system is fully compatible with our Universal Fan Controller(hyperlink to MMFAN-PWM-UBK) for precise thermal management. All necessary hardware and mounting brackets are included, and this heat exchanger comes back by the Mishimoto Lifetime Warranty, so you can buy with peace of mind.

Additional Attributes:

GTIN: 00840197725290
Amp Draw (Running): 9.2 (Peak Amps: 12)
Amp Draw (Start): 1
Install Difficulty: N/A
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Universal design can be set up to cool EV applications, coolant, oil, and more
SellingPoint02: Includes 12” brushless fan rated for 1177 CFM with integrated shroud for superior heat dissipation
SellingPoint03: Compatible with our Universal PWM Fan Controller (Hyperlink to MMFAN-PWM-UBK)
SellingPoint04: Features a durable high-pressure tube-and-fin style core for long-lasting performance
SellingPoint05: Includes all necessary fittings and mounting brackets
SellingPoint06: Note: Controller for brushless fan not included.
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec CFM: 1177
TechSpec Core Construction: Tube-And-Fin
TechSpec Core Height (in): 13.7
TechSpec Core Length (in): 14.2
TechSpec Core Thickness (in): 1.9
TechSpec Includes: Attached Fan–(2) Fittings–Heat Exchanger–Mishimoto Lifetime Warranty
TechSpec Inlet: 1 1/16″-12 ORB
TechSpec Max Amps: 12
TechSpec Outlet: 1 1/16″-12 ORB
TechSpec Overall Height (in): 16.2
TechSpec Overall Length (in): 18.1
TechSpec Overall Width (in): 3.76
TechSpec Rows: 34
TechSpec RPM: 900 – 3050
TechSpec Voltage: 9-16 VDC

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: BX
Dimension: 15 x 7 x 18 inches
Weight: 13 PG
