Universal 12V cannister-style w/ primary resistance 1.4 ohms & output of 42000V.

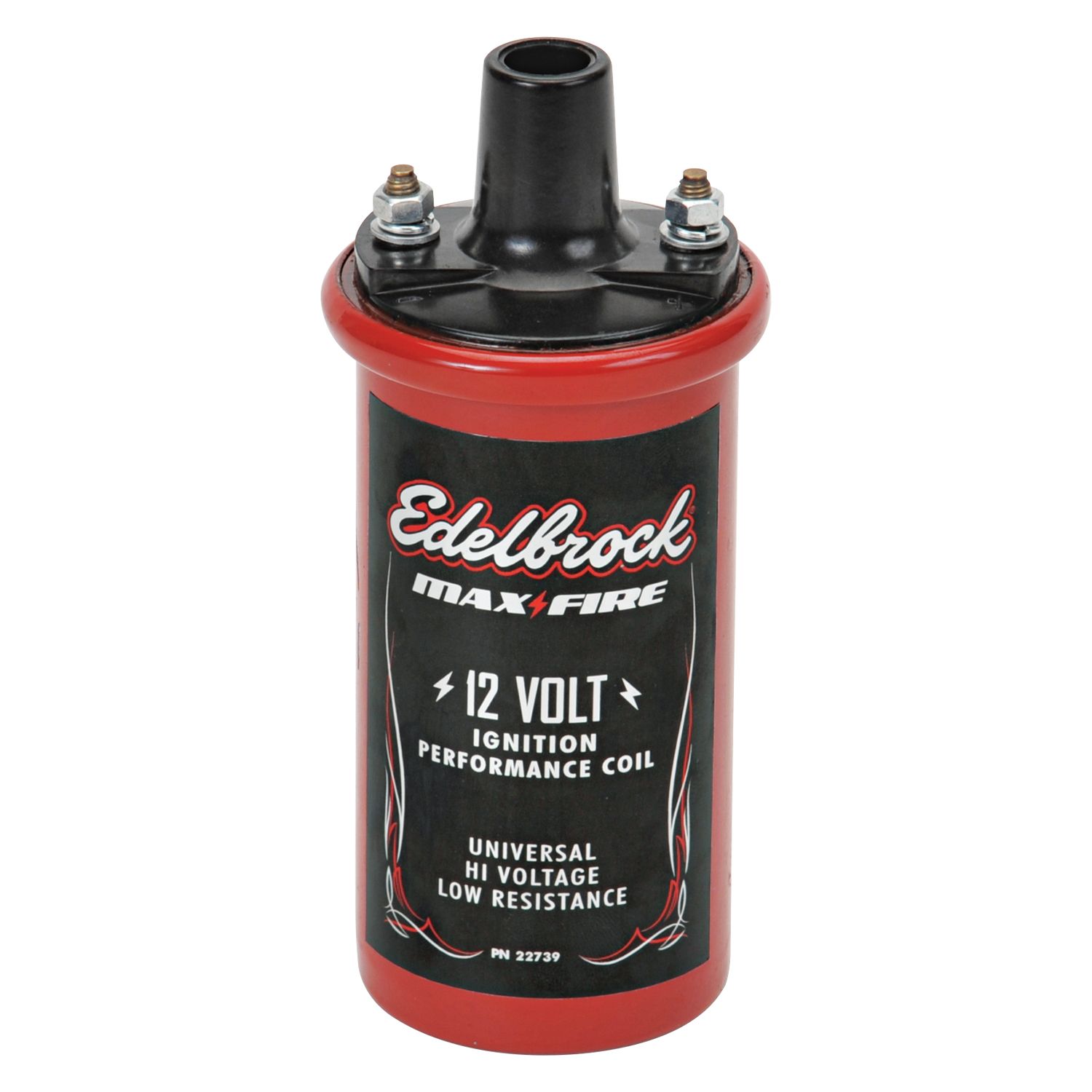

Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM.

Additional Attributes:

GTIN: 00085347227396
7642: 6500
Coil Shape: Round
Coil Type: Canister
Coil Wire Included: No
Connector Gender: Male
Ignition Type: Distributorless
Material: Steel
Maximum Voltage: 42000
Mount Type: Plug
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Position: Cylinder Head
Oil Filled: Yes
Primary Resistance: 1.4
Quantity: Sold Individually
Ratio: 94:1 Turns
Requires External Resistor: No
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Secondary Resistance: 9.2
Terminal Gender: Female
Terminal Quantity: 1
Terminal Type: Socket
Voltage: 12V

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 3.125 x 3.125 x 6 inches
Weight: 2.4 PG
