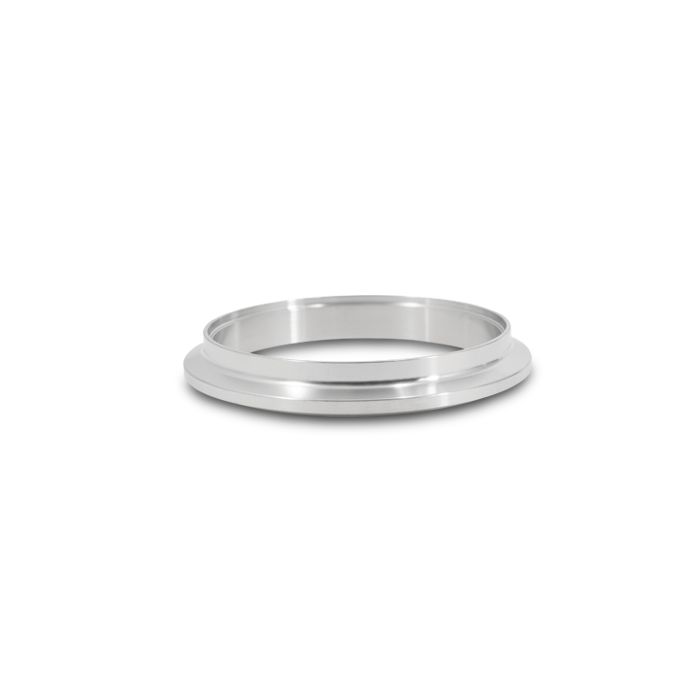

Turbine Outlet Flange for Garrett GT30/35, GTX 30/35, G25-550/660

Vibrant Performance offers a variety of turbo outlet flanges for your custom fabrication projects. Constructed from 304 stainless steel and mild steel, Vibrant flanges are precision laser-cut or CNC-machined to ensure a perfect fit to your turbo components. For Garrett GTX29, GT30 / GTX30, GT35 / GTX35, GT40 / GTX40 90mm O.D. Flange with 81mm diameter mating ring, (suits 3" O.D. tubing)

Additional Attributes:

GTIN: 00690092168803
Add-On: N/A
Apex Width: 3.25
Centering Ring Male Diameter Height: 2
Centering Ring Male Diameter: 81.6
Flange O.D.: 90.16
Material: 304 Stainless Steel
Port I.D.: 74.5
Prop 65 Yes/No: No
Sale Segment: Turbo Flanges and Fittings
Thickness: 12.9
Tube Recess Depth: 2
Tube Recess I.D.: 3
Web Category: Turbine Outlet Flanges

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 8.85 x 5.5 x 0.5 inches
Weight: 0.26 PG
