Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

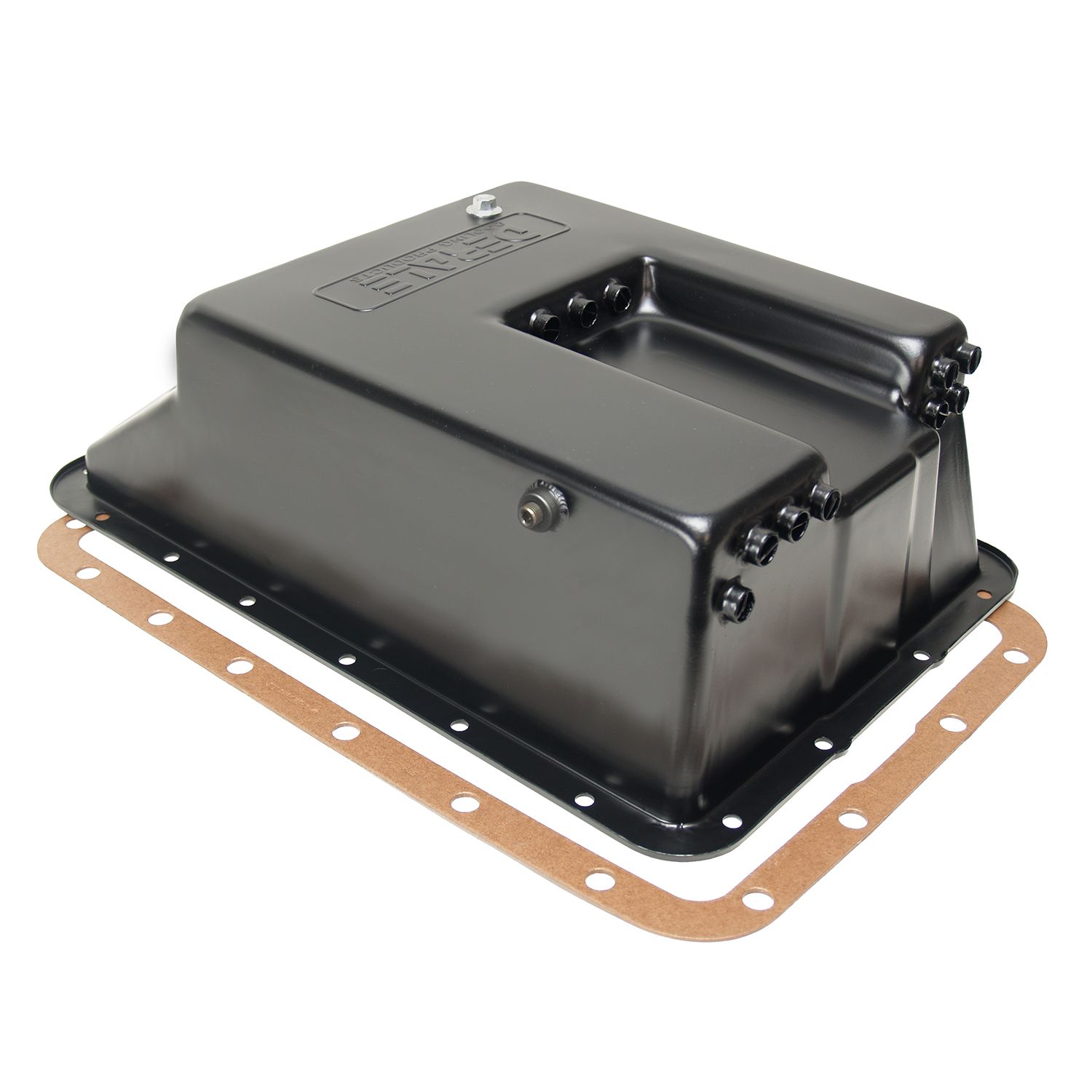

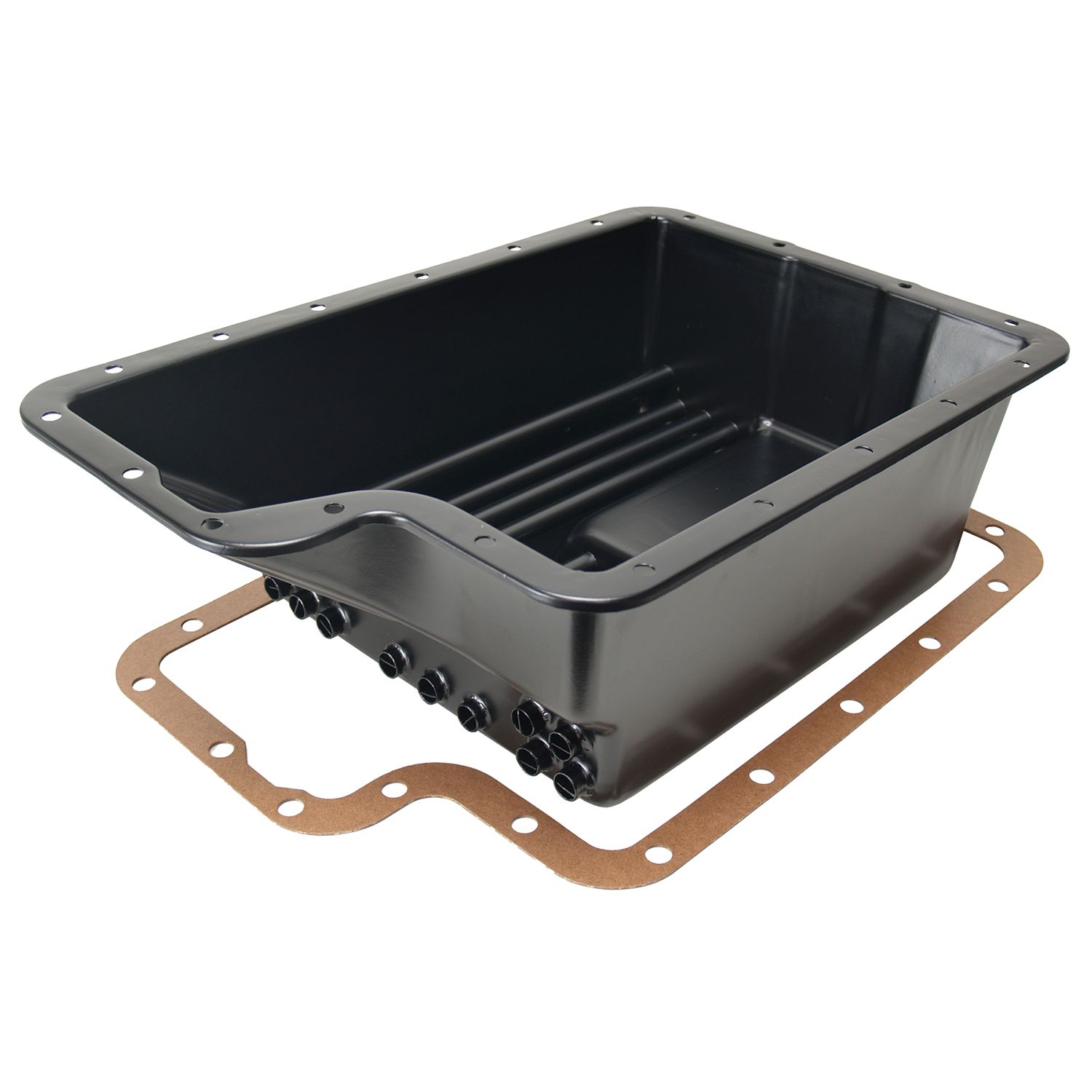

Derale's Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford's E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Additional Attributes:

GTIN: 00083277142086
Color: Black
Pan depth: 6-1/8
Prop 65: Yes
Temp bung size: 1/8 NPT
Tube depth: 4-1/4

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 15 x 22.625 x 7.5 inches
Weight: 14.9375 PG

PDF:

14208
