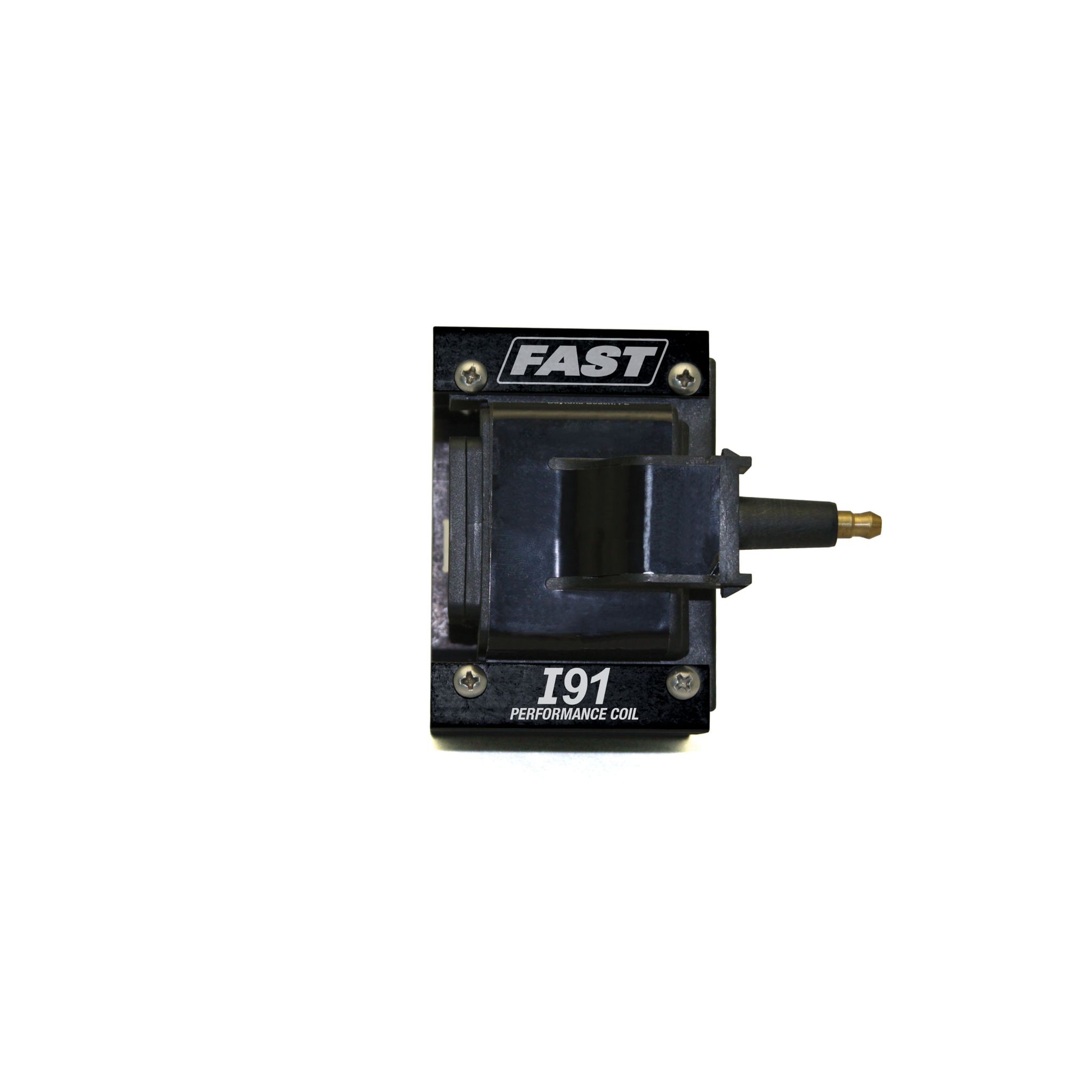

The I91 is a great choice for street an performance applications.

The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.

Additional Attributes:

GTIN: 00021174021080
Ballast Resistor Included: No
C.A.R.B. EO Number: D-255-60
C.A.R.B. Exempt?: Yes
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Color: Black
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Style: E-Core
Coil Wire Attachment: Male/HEI
Coil Wire Included: No
Coil Wire Terminal Quantity: 1
Diameter: N/A
Height: 3
Leakage Inductance: .23 mH
Length: 3.75
Maximum Voltage: 47,000 V
Meets or Exceeds OEM Specs: Yes
Mount Type: Integral
Mounting Bracket Included: Yes
Mounting Position: Any
Oil Filled: No
Peak Current: 380 mA
Primary Inductance: 4.7 mH
Primary Resistance: .40 ohms
Quantity: Sold Individually
Secondary Inductance: 14.4 H
Secondary Resistance: 4.6K ohms
Spark Duration: 280 uS
Terminal Quantity: 2
Turns Ratio: 57:1
Weight: 1.25 lbs
Width: 2.5

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 3 x 4 x 5 inches
Weight: 1.46 PG
