Temporarily Unavailable

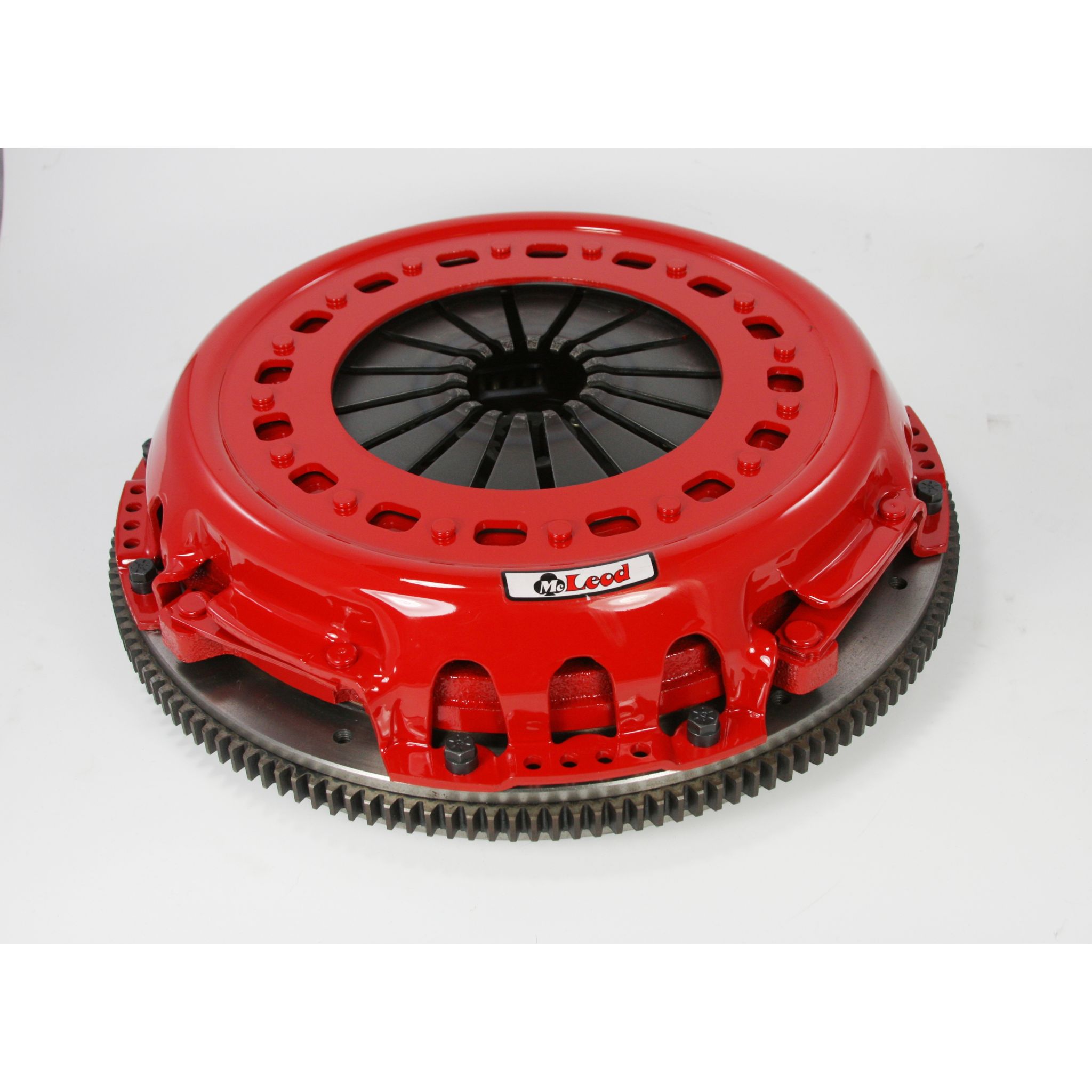

The McLeod Workhorse clutch is available for both gas and diesel applications. Available in 12 1/4 inch and 13 inch kits, the Workhorse is equipped with a heavy duty flywheel, heavy duty pressure plate, and comes with the option of either organic or ceramic discs

Additional Attributes:

GTIN: 00887753015129
Alignment Tool Included: Yes
Clutch Usage: Performance
Disc Diameter (in.): 13.000
Disc Material: Organic
Flywheel Included: Yes
Flywheel Material: Billet steel
Hardware Included: No
Hub Style: Sprung
Pilot Bushing Included: No
Pilot Bushing Material: N/A
Pressure Plate Style: Diaphragm
Spline: 1 1/16In. x 10
Throwout Bearing Included: No
Throwout Bearing Style: Hydraulic
Torque Rating: 750 ft./lbs.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Temporarily Unavailable

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.5 x 14.5 x 5 inches
Weight: 23 PG

PDF:

WorkhorseInstructions
