Suspension Lift Kit

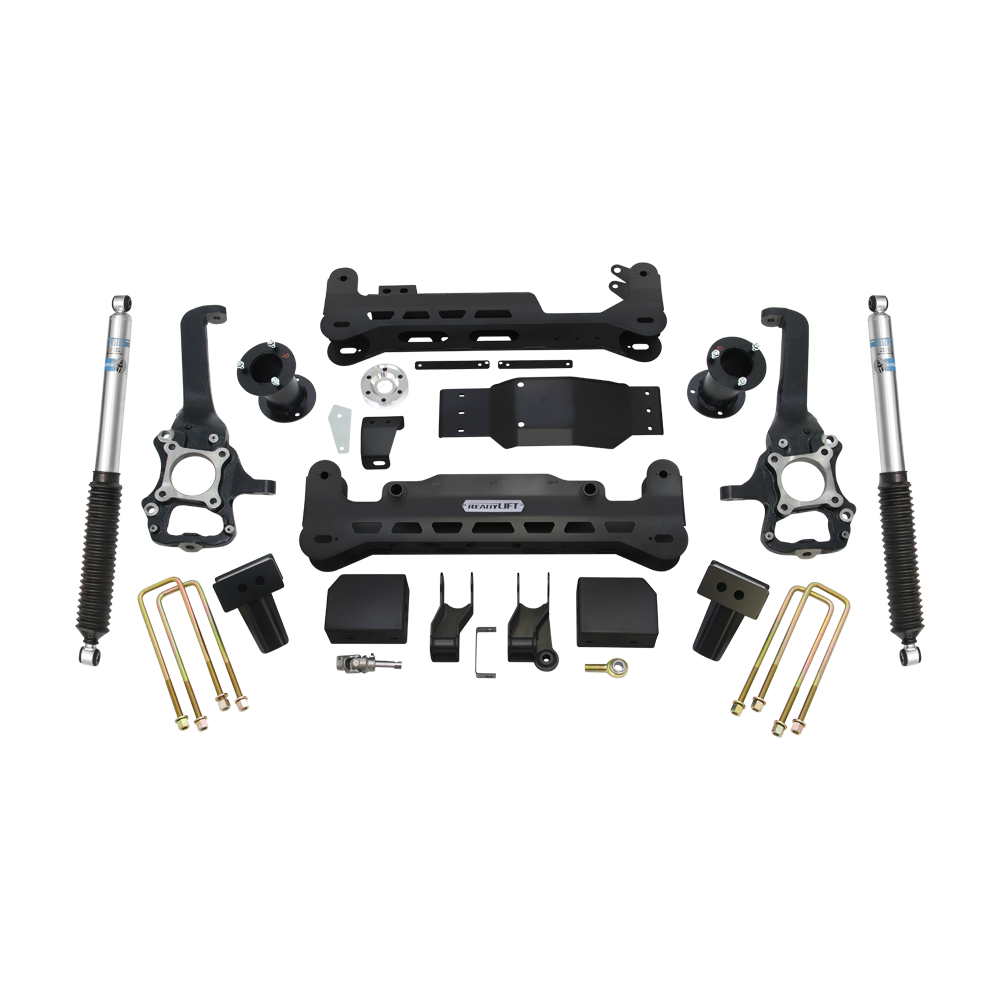

The ReadyLIFT 7" Complete Lift Kit System is specifically designed for 2015-2020 Ford F-150 4WD trucks, offering maximum lift while maintaining factory ride and steering geometry. This premium kit includes a 7.0" front and 5.0" rear lift for rugged off-road strength and on-road comfort. It features precision-designed subframe assemblies that bolt in directly, with minimal welding required. The kit includes heavy-duty cast nodular iron steering knuckles, a patent-pending rack-and-pinion steering drop correction system, and an integrated differential drop bracket system to ensure proper CV axle angles and 4WD performance. One notable feature is the patent-pending fabricated offset steel strut extensions, providing a maximum 7" front lift, while OEM-style rear blocks (total rear lift of 4.0" when installed) maintain ride quality. The kit also includes a steering extension to preserve steering performance, eliminating the need to cut or replace tie rod ends. This no-weld design ensures easy bolt-on installation. Furthermore, the kit incorporates a patent-pending Rack Correction System (RCS) to work with the relocated steering rack, maintaining stock steering geometry. This prevents issues down the road, as cutting tie rods can lead to alignment problems when replacing tie rods with OE replacements. The dropped rack and pinion system allows the truck to retain OEM alignment specs, a stock turning radius, and the stock track width. It even uses factory-style cam plates and can be aligned to factory specifications. The ReadyLIFT 7" Complete Lift Kit System is compatible with stock wheels or most 17" or larger aftermarket wheels with a wheel width of up to 9" and a backspacing of 4.75" – 5.5". Note that this kit is designed for vehicles with a 1-piece driveshaft; for trucks with a 2-piece driveshaft, an alternative rear upgrade solution is available by contacting 877-759-9991.

Additional Attributes:

GTIN: 00804879610311
Shocks Included: Yes
California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 7 Inches
Front or Rear: Front and Rear
Front Shocks: None
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Max Tire Size: 37 Inch
Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
Rear Lift Component: Block
Rear Lift Height: 4 Inches
Rear Shocks: Bilstein 5125

Extended Information:

Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 48.0000 x 22.0000 x 22.0000 inches
Weight: 285.0000 PG
