Supercharger Upgrade Kit

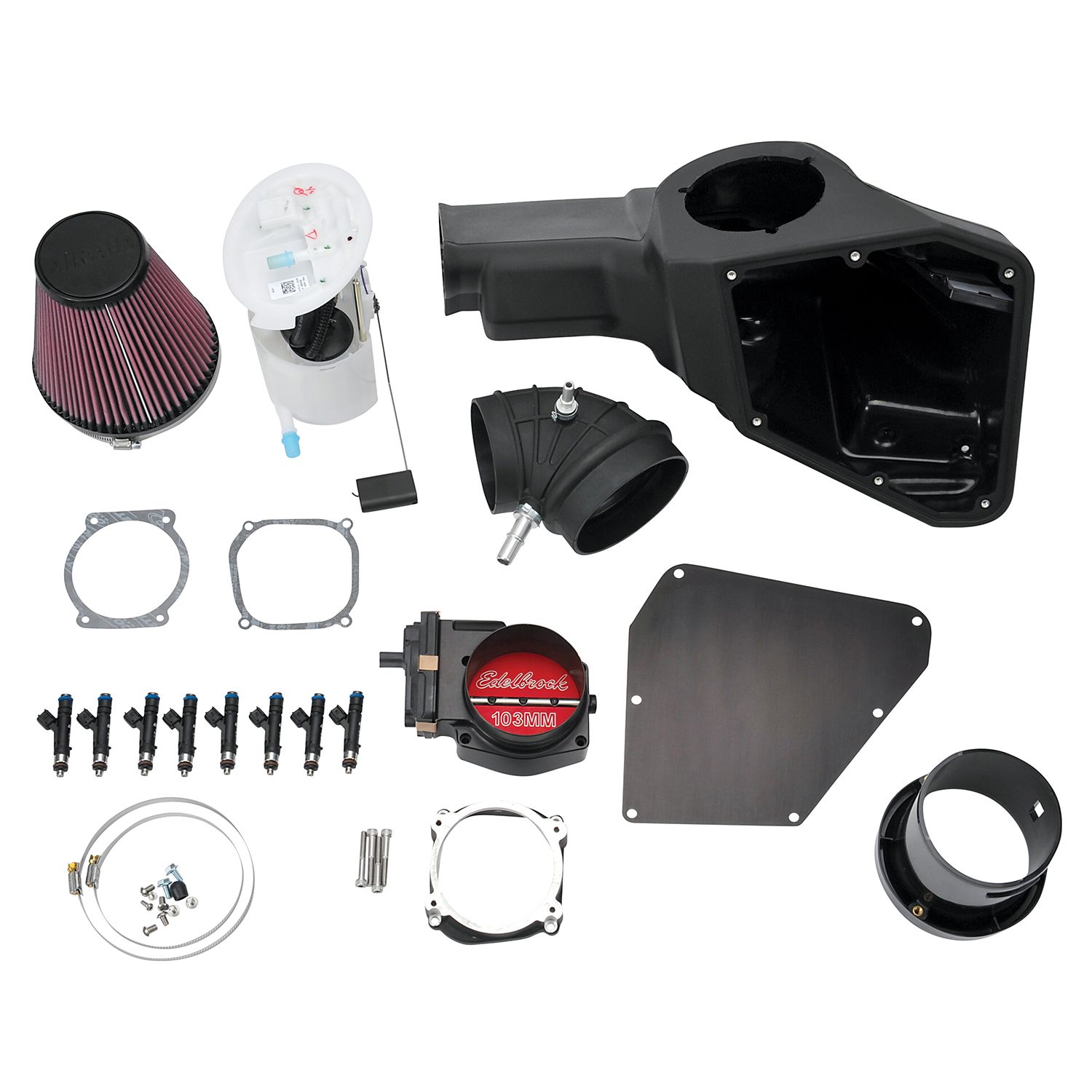

Owners of 2015-2017 Ford Mustangs who have already installed an Edelbrock Stage 1 Supercharger Kit #15838 but want to add even more power can now step up to the next level of performance with the Stage 2 Supercharger Upgrade Kit #15884. With this Stage 2 upgrade kit, your vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage 2 Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this one of Edelbrock's highest rated horsepower systems. Included are a 103mm Throttle Body to replace the 80mm Stage 1 unit, a high-flow air intake system, a 113mm Mass Airflow Sensor Kit with injection-molded housing, larger 78 lb/hr direct-port fuel injectors, and a drop-in 400 LPH fuel pump assembly. Installing the Stage 2 Upgrade Kit does not require removal of the Stage 1 supercharger.

Additional Attributes:

GTIN: 00085347158843
9040: D-215-107
Air Filter Included: Yes
Calibration: Yes
Finish: Black
Fuel Pump Included: Yes
Gasket Or Seal Included: Yes
Maximum Boost Pressure: 15
Maximum Pressure Reading: 15
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2650
System Type: Stage 2 – Street/Strip System
Universal Or Specific Fit: Specific

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 44 x 44 x 26 inches
Weight: 19.8 PG

PDF:

Supercharger_oil_MSDS
