Supercharger Upgrade Kit

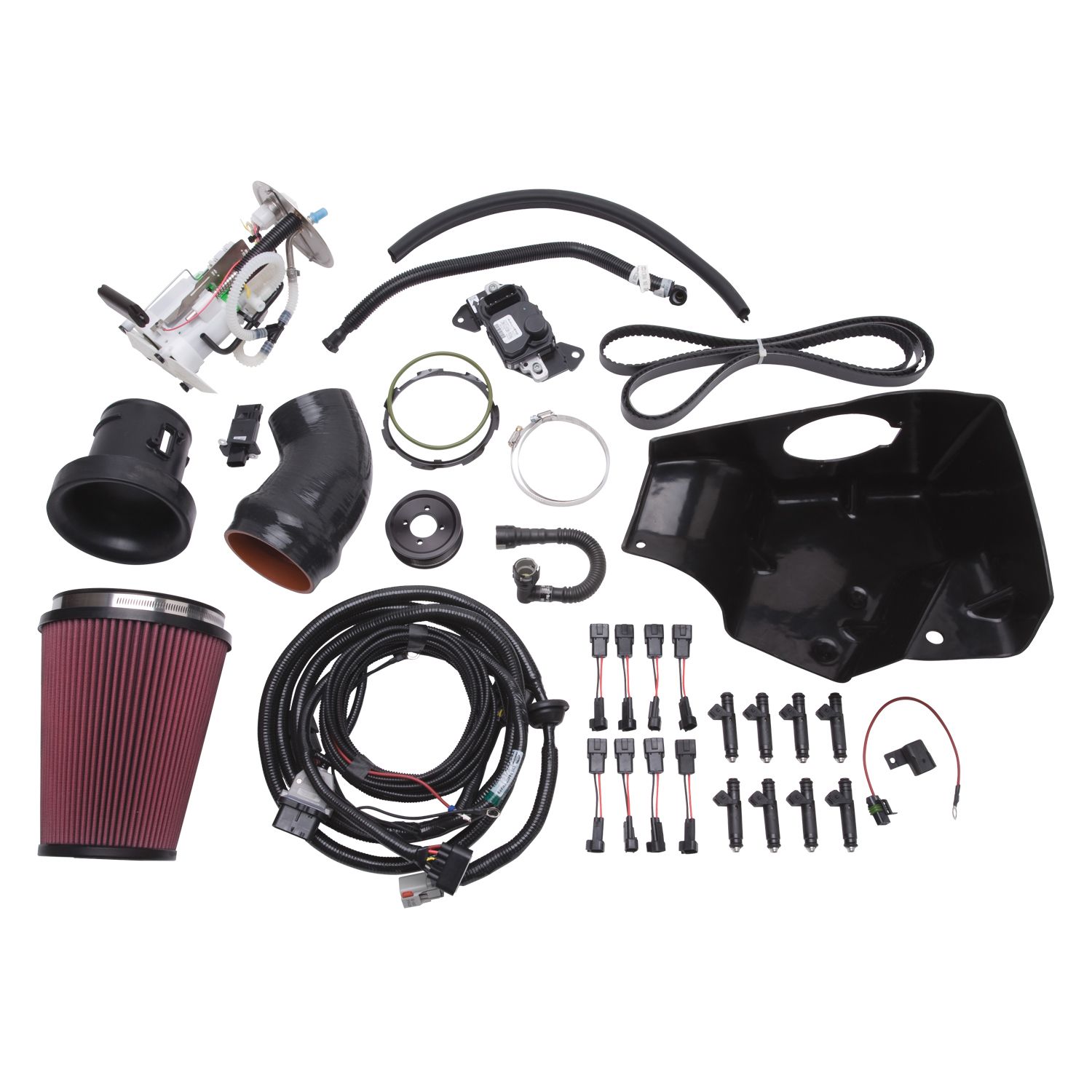

The Edelbrock Stage II Upgrade Kit part #15802 allows customers using the 1580 supercharger (2005-2009 4.6L Mustang) to upgrade to stage 2. The Edelbrock Stage II Upgrade Kit part #15802 includes a 3.25in. supercharger pulley, complete competition air intake system, GT500 fuel pump, injectors w/ adapters, Gatorback belt, and an updated calibration file. This upgrade is intended for racing/off road applications only and is not legal for sale on pollution controlled vehicles. Before a tune can be released complete the disclaimer form and send it back to us in order to receive the appropriate calibration file. This form can also be completed online.

Additional Attributes:

GTIN: 00085347158027
Air Filter Included: Yes
Calibration: Yes
Finish: Black Powder Coated
Fuel Injector Type: 60
Fuel Pump Included: Yes
Gasket Or Seal Included: Yes
Hose Included: Yes
Housing Material: Cast Aluminum
Maximum Horsepower: 529
Maximum Torque: 494
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Outside Pulley Diameter: 3.25
Pulley Belt Width: 6-Rib
Pulley Color: Black anodized
Pulley Groove Quantity: 6-Rib
Pulley Material: Aluminum
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Stage 2 – Street/Strip System
Tensioner Included: No
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 23.5 x 13 x 14.75 inches
Weight: 17.8 PG
