Supercharger Kit

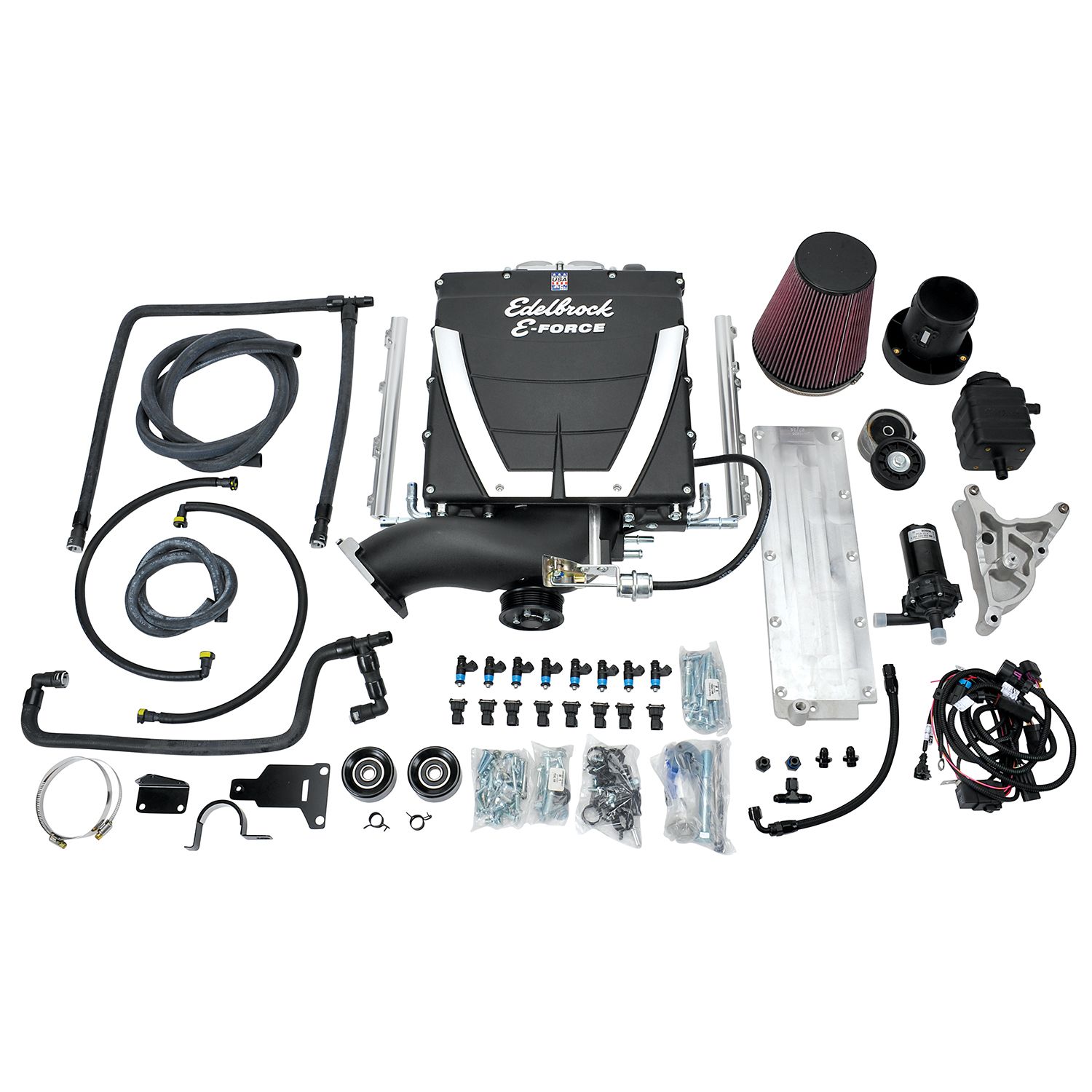

The Edelbrock Universal Supercharger System part #15480 is designed for street rods and muscle cars with LS2 cathedral port cylinder heads and a Truck (88mm Throttle Body) belt offset. Edelbrock system is designed to provide instant and reliable horsepower with low boost for minimum stress on the engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.

Additional Attributes:

GTIN: 00085347154807
Air Filter Included: Yes
Center Housing Cooling Type: Intercooler
Compatibility: Gen IV LS2 Cathedral Port
Finish: Black Powder Coated
Fuel Injector Type: 60
Gasket Or Seal Included: Yes
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Offset Type: Truck (88mm Throttle Body)
Oil Capacity: 150
Outside Pulley Diameter: 3.50
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Universal System
Tensioner Included: Yes
Universal Or Specific Fit: Universal
Vehicle Model: Universal

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 44 x 44 x 32 inches
Weight: 198 PG

PDF:

Supercharger_oil_MSDS
