Supercharger Kit

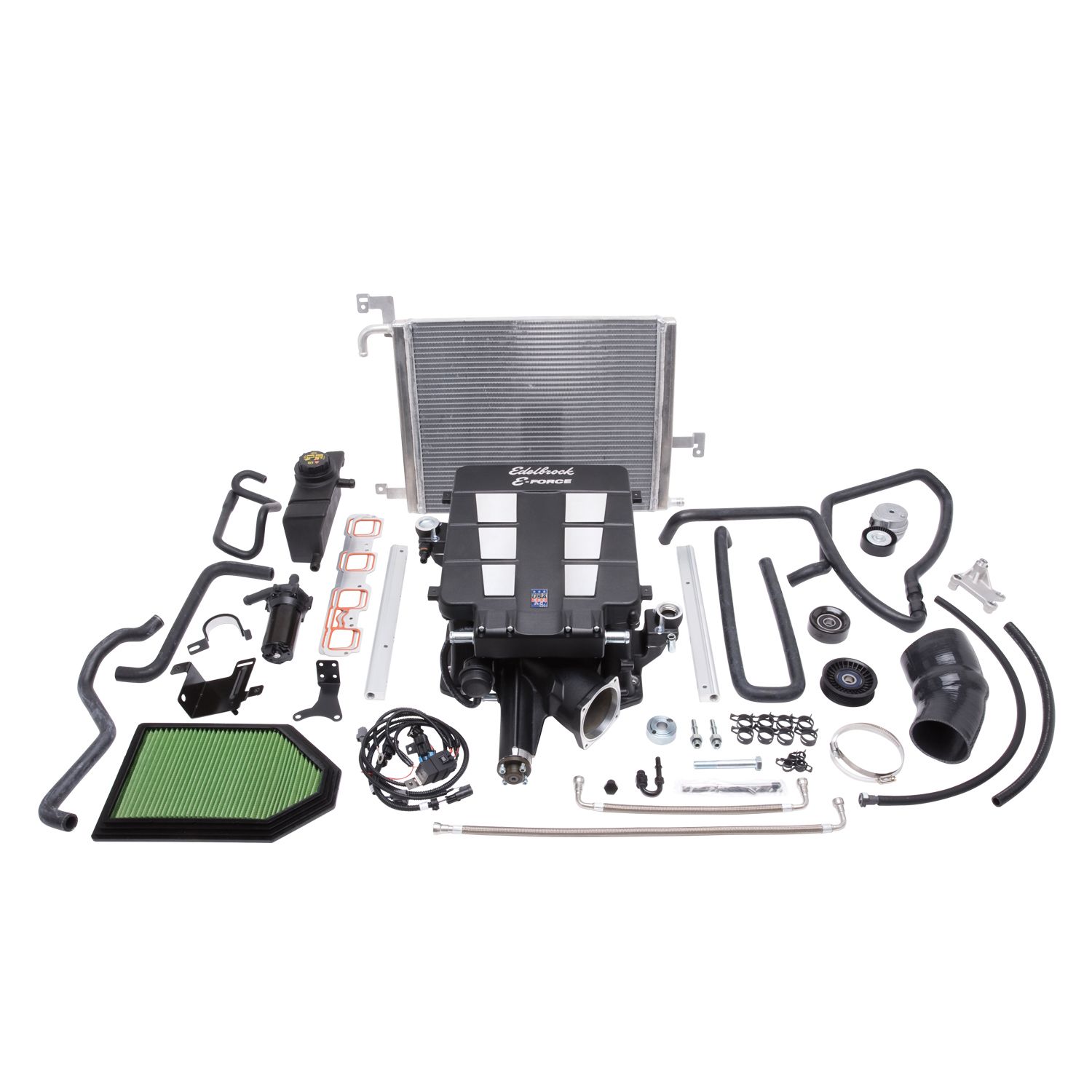

The Edelbrock Supercharger System part #15353 is a Pro Tuner kit that delivers in upwards of 688 RWHP and 601 RWTQ for your 2011-14 6.4L HEMI Chrysler 300, Dodge Charger or Challenger. The part #15353 gives you all the essential components needed to build a custom supercharged race setup. This gives you the flexibility in pulley selection, cold air intake, and more. The part #15353 is for competition racing use ONLY! Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Customer MUST purchase a heat exchanger SEPARATELY. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This unit is NOT supplied with a Programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Additional Attributes:

GTIN: 00085347153534
Air Filter Included: Yes
Calibration: No
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Gasket Or Seal Included: Yes
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Pro-Tuner Racing System
Tensioner Included: Yes
Universal Or Specific Fit: Specific
Vehicle Model: Challenger

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 41.75 x 33.5 x 25.5625 inches
Weight: 182 PG

PDF:

Supercharger_oil_MSDS
