Supercharger Kit

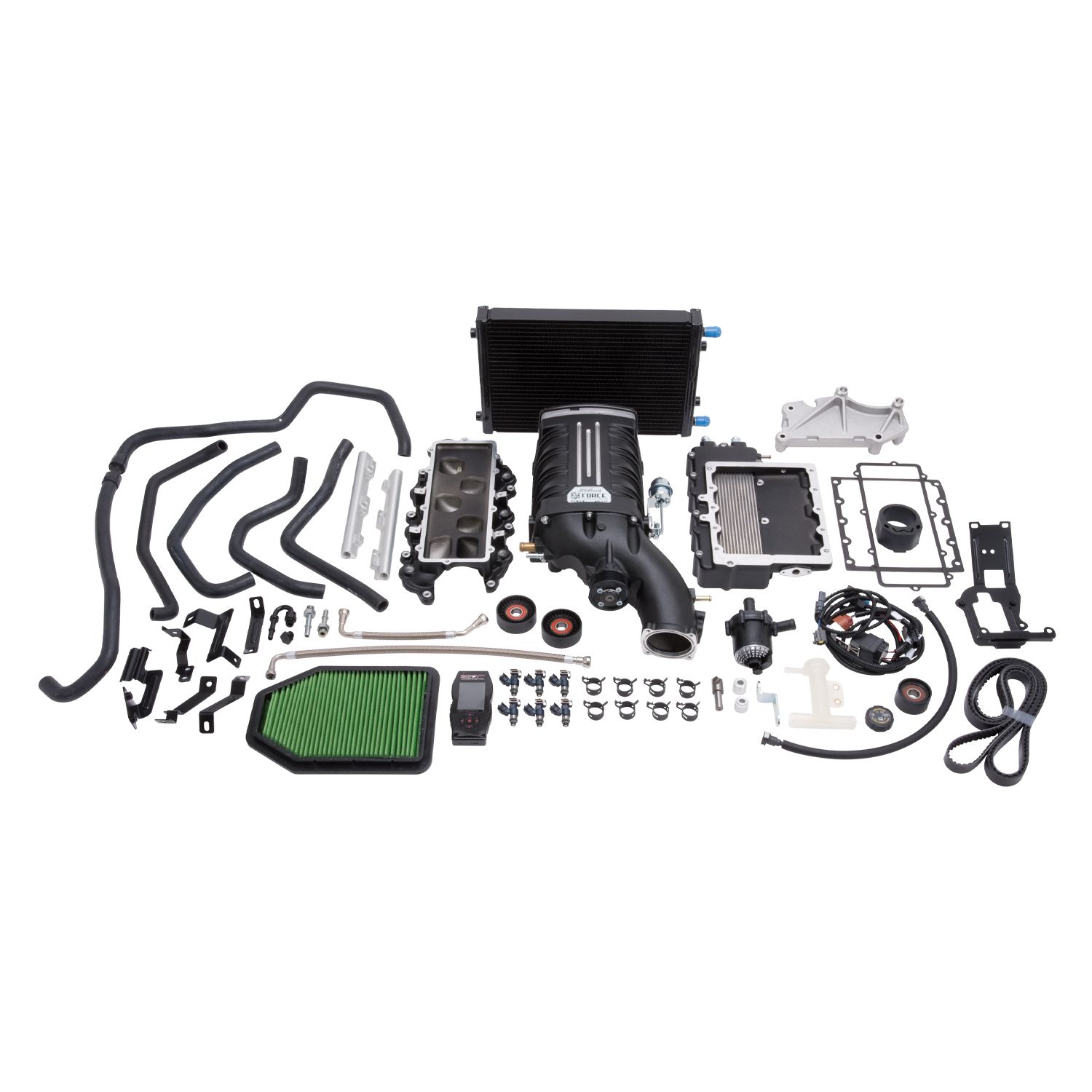

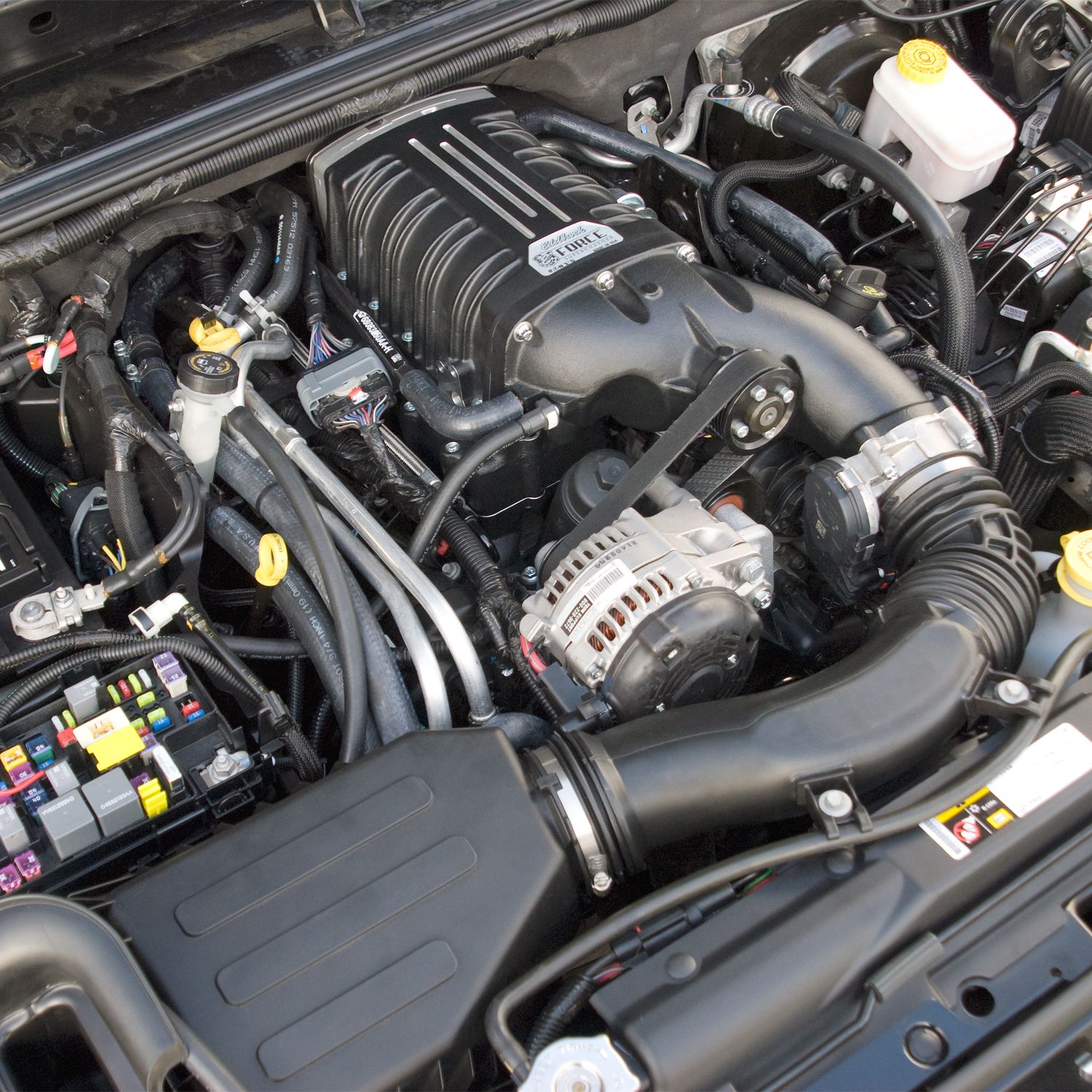

The Edelbrock Supercharger System #1527 for your 2012-14 Jeep Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 engine with a unique design and minimal components that makes it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design having 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

Additional Attributes:

GTIN: 00085347015276
9040: D-215-96
Air Filter Included: Yes
Calibration: Yes
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 42
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: 6.1
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Maximum Boost Pressure: 8
Maximum Horsepower: 317RW (Manual Trans)/285RW (Auto Trans); With Stock Tires
Maximum Pressure Reading: 8
Maximum Torque: 277RW (Manual Trans)/235RW (Auto Trans); With Stock Tires
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 125
Outside Pulley Diameter: 2.625
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 1320
System Type: Stage 1 – Street System
Universal Or Specific Fit: Specific
Vehicle Model: Wrangler

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 33.375 x 26.25 x 17.5625 inches
Weight: 91 PG

PDF:

Supercharger_oil_MSDS
