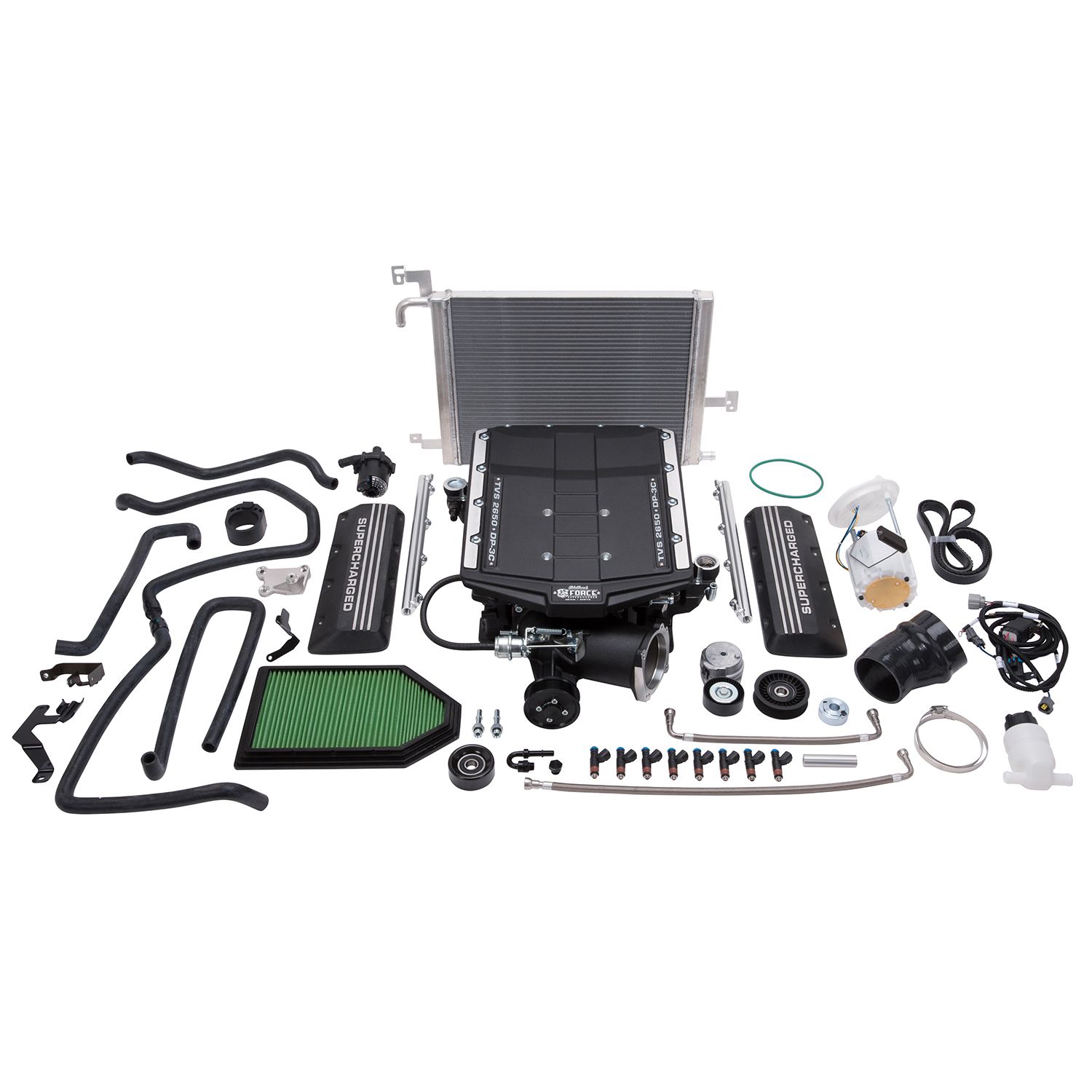

Supercharger Kit

Edelbrock supercharger Stage 1 System part #15170 increases the performance of your 5.7L HEMI to 483 horsepower and 450 ft-lbs of torque to the rear wheels. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Additional Attributes:

GTIN: 00085347151707
9040: D-215-96
Air Filter Included: Yes
Calibration: No
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 46
Fuel Pump Included: Yes
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: Stock
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 3.5
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2650
System Type: Stage 1 – Street System
Tensioner Included: Yes
Universal Or Specific Fit: Specific
Vehicle Model: Charger

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 41.75 x 33.25 x 25.75 inches
Weight: 134 PG

PDF:

Supercharger_oil_MSDS
