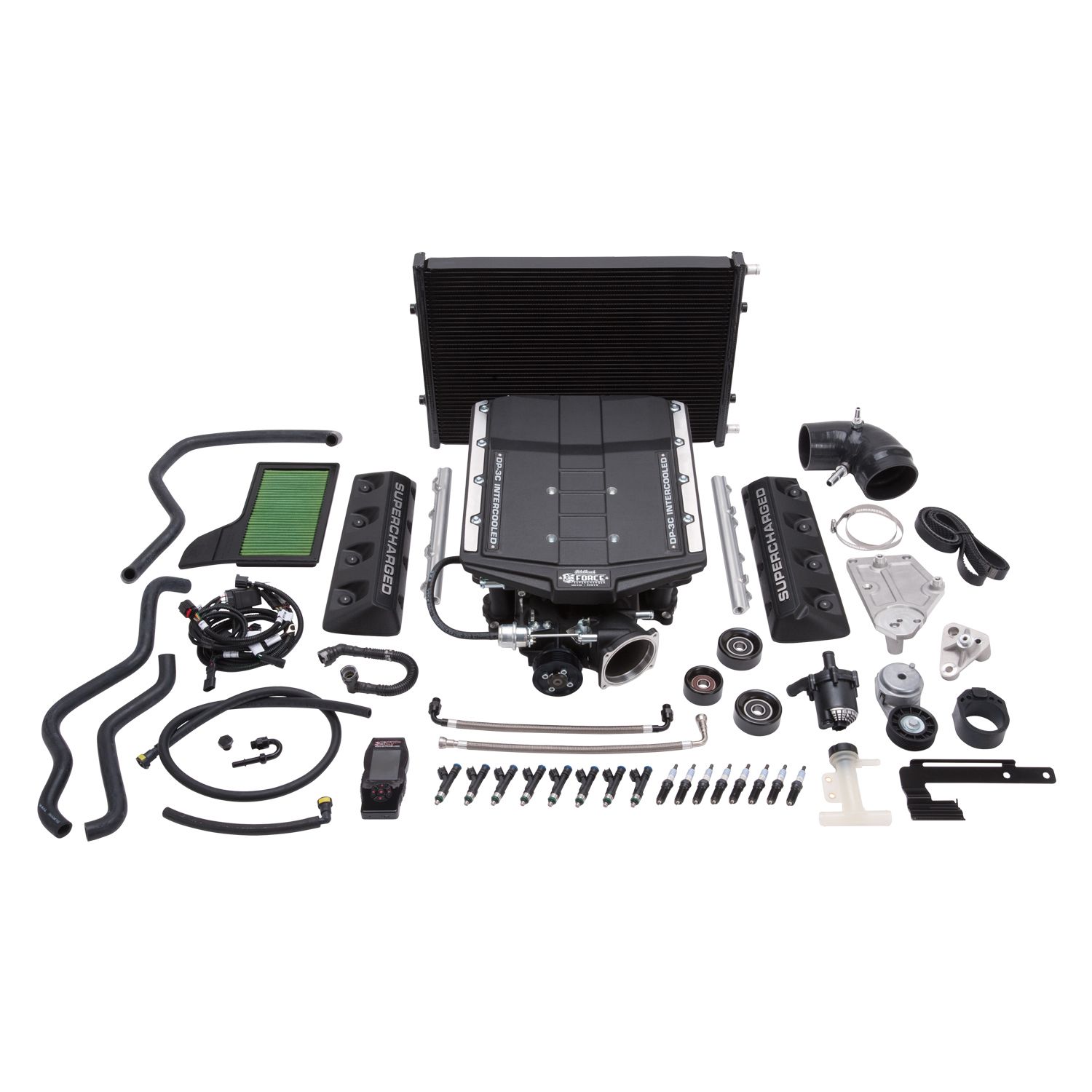

Supercharger Kit

The Edelbrock E-Force Supercharger Stage 1 system part #1586 for 2015-17 Mustangs increases the performance of your Coyote engine to 690 horsepower and 588 ft/lbs. of torque at the crank . The core of this system is the Eaton Gen VI 2300 TVS Supercharger rotating assembly with a four lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. The Edelbrock #1586 system is emissions legal and provide the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit will include a tune for 91 or 93 octane fuels.

Additional Attributes:

GTIN: 00085347015863
9040: D-215-107
Maximum Boost Pressure: 11
Maximum Pressure Reading: 11
Pulley Belt Width: 6.0
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Obsolete

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 31.75 x 25 x 20 inches
Weight: 144 PG

PDF:

Supercharger_oil_MSDS
