Supercharger Kit

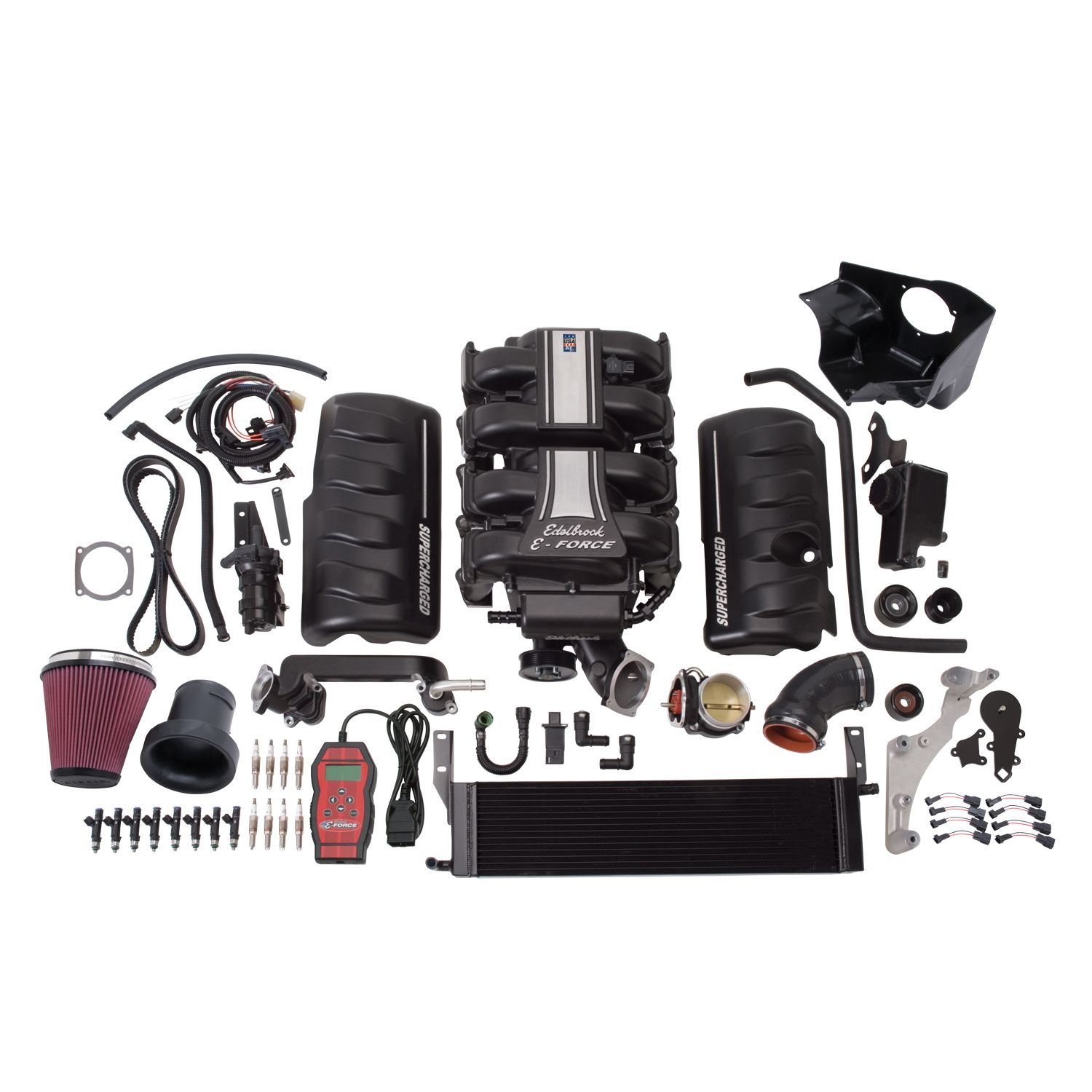

The Edelbrock supercharger Stage 2 system part #15856 for 2005-09 Ford Mustang increases the performance of your 4.6L 3V engine to 529 horsepower and 494 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This upgrade is intended for racing applications only and is not legal for use on pollution-controlled vehicles. A properly completed race-only form will need to be signed and submitted by the customer and accepted by Edelbrock to receive the race-only calibration file. A race-only calibration file will need to be modified by the customer for the specific race engine configuration.

Additional Attributes:

GTIN: 00085347158560
Air Filter Included: Yes
Calibration: Yes
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 60
Fuel Pump Included: Yes
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: Stock
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Maximum Horsepower: 529
Maximum Torque: 494
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 3.25
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
Spark Plugs Included: Yes
System Type: Stage 2 – Street/Strip System
Tensioner Included: Yes
Universal Or Specific Fit: Specific
Vehicle Model: Mustang

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 44 x 44 x 26 inches
Weight: 178 PG
