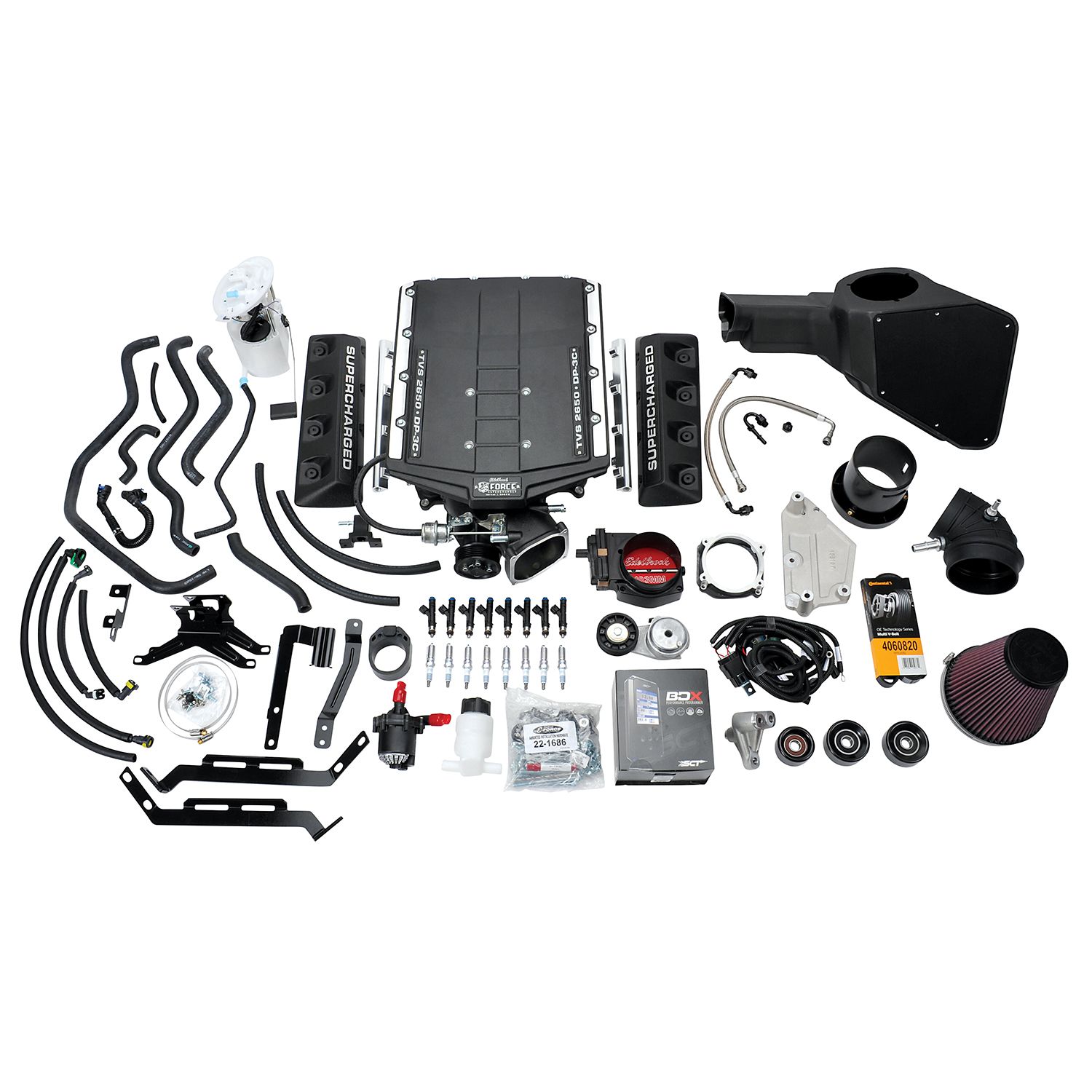

Supercharger Kit

Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System #15839 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty.

Additional Attributes:

GTIN: 00085347158393
9040: D-215-107
Air Filter Included: Yes
Calibration: Yes
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 78
Fuel Pump Included: Yes
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: 6.67
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Maximum Boost Pressure: 15.5
Maximum Horsepower: 610RW
Maximum Pressure Reading: 15.5
Maximum Torque: 499RW
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 3.25
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2650
Spark Plugs Included: Yes
System Type: Stage 2 – Street/Strip System
Universal Or Specific Fit: Specific
Vehicle Model: Mustang

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 44 x 44 x 26 inches
Weight: 178 PG

PDF:

Supercharger_oil_MSDS
