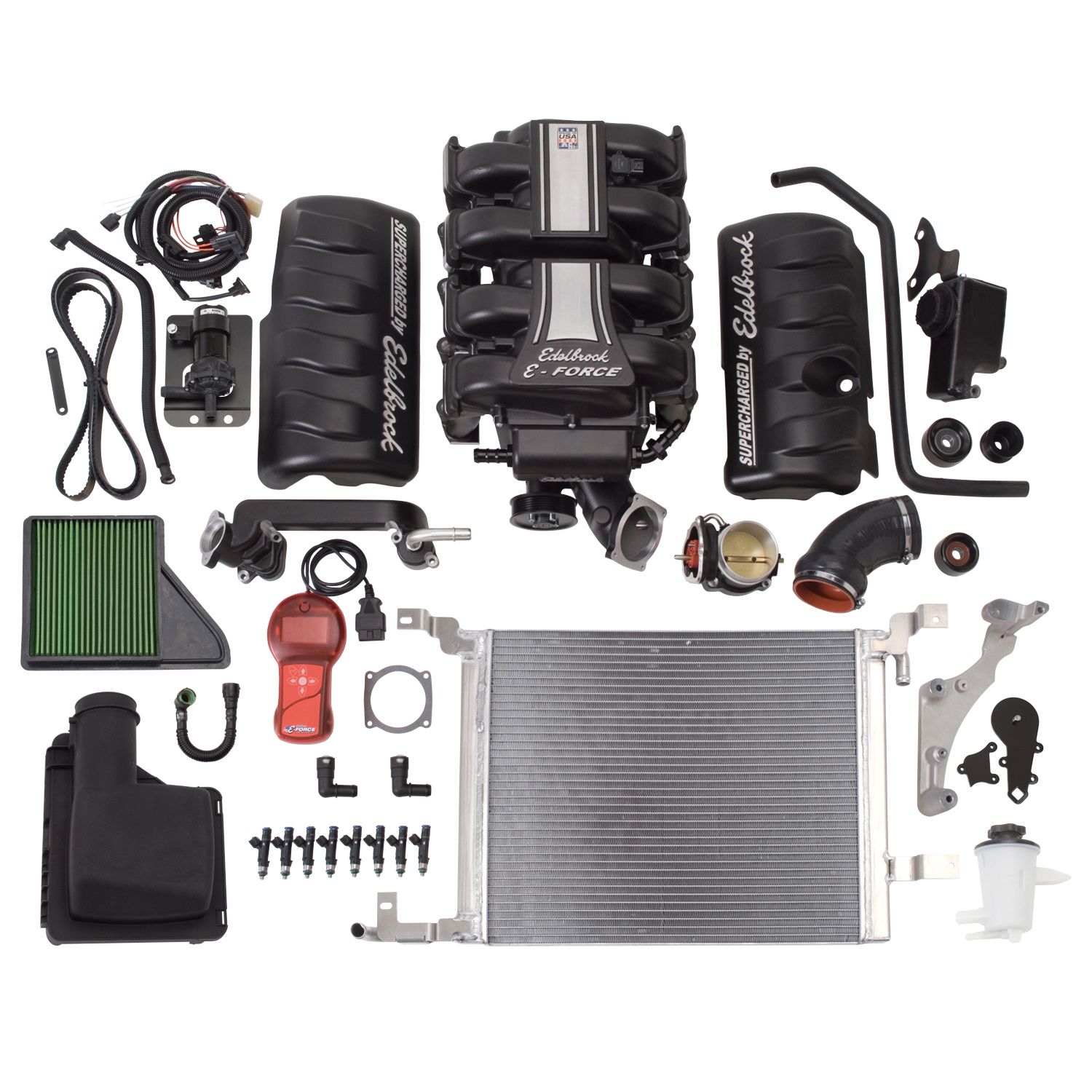

Supercharger Kit

The Edelbrock supercharger Stage 1 Street system part #1582 for 2010 Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1582 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Additional Attributes:

GTIN: 00085347015825
9040: D-215-89
Air Filter Included: Yes
Calibration: Yes
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 41
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: 6.67
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Maximum Boost Pressure: 4.75
Maximum Horsepower: 466
Maximum Pressure Reading: 4.75
Maximum Torque: 439
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 3.875
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Stage 1 – Street System
Tensioner Included: Yes
Universal Or Specific Fit: Specific
Vehicle Model: F-150

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 50 x 40 x 26 inches
Weight: 202 PG

PDF:

Supercharger_oil_MSDS
