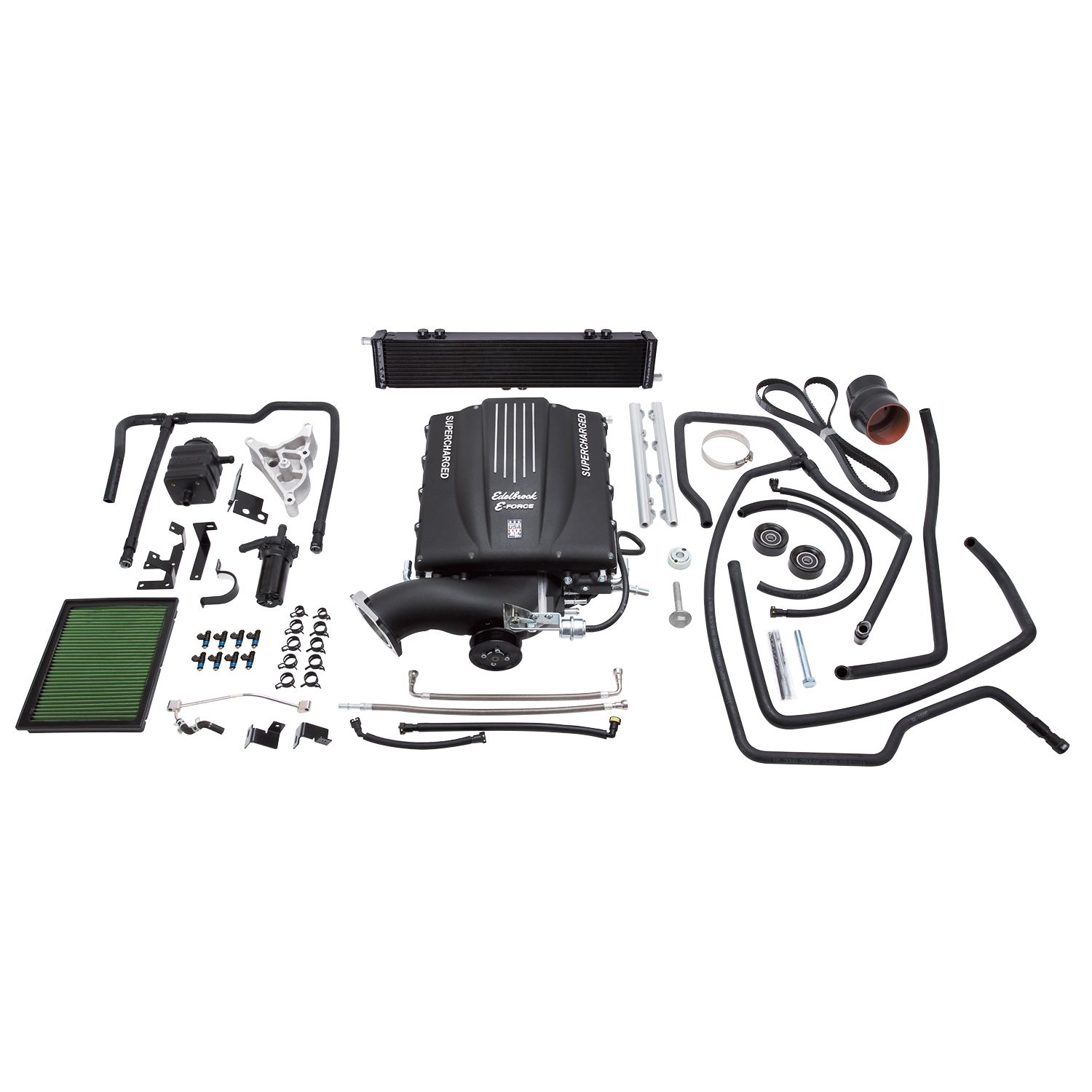

Supercharger Kit

The Edelbrock supercharger Stage 1 Street system part #15770 for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic increases the performance of your 6.0L Gen III engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer). The Edelbrock #15770 Supercharger also works with the 4.8L & 5.3L Gen III engines, HP & Torque numbers will vary. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. The #15770 system increases the performance of your 4.8L Gen III engine to 339 horsepower and 359 ft-lbs of torque and for the 5.3L Gen III engine increases to 339 horsepower and 359 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer).

Additional Attributes:

GTIN: 00085347157709
9040: D-215-110
Air Filter Included: Yes
Calibration: No
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 42
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: 7.5
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 4.125
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Stage 1 – Street System
Universal Or Specific Fit: Specific
Vehicle Model: Silverado

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 41.75 x 33.25 x 25.75 inches
Weight: 177 PG

PDF:

Supercharger_oil_MSDS
