Supercharger Kit

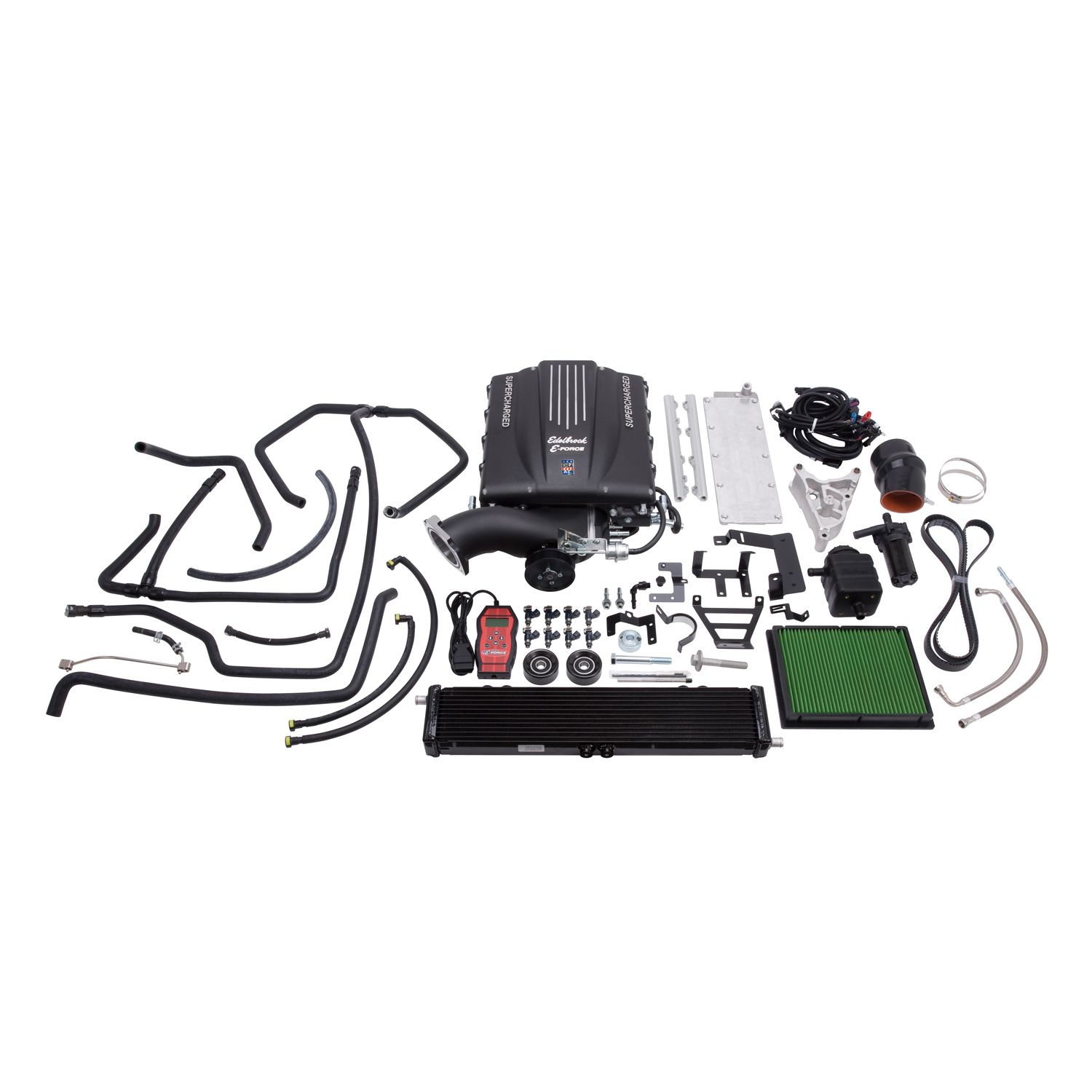

The Edelbrock supercharger Stage 1 Street System part #1564 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1564 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Additional Attributes:

GTIN: 00085347015641
9040: D-215-110
Air Filter Included: Yes
Calibration: Yes
Center Housing Cooling Type: Intercooler
Finish: Black Powder Coated
Fuel Injector Type: 42
Gasket Or Seal Included: Yes
Harmonic Balancer Diameter: 7.5
Hose Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Maximum Boost Pressure: 6
Maximum Horsepower: 384RW
Maximum Pressure Reading: 6
Maximum Torque: 390RW
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150
Outside Pulley Diameter: 4.125
Pulley Belt Width: 6-Rib
Quantity: Kit
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Rotor Type: Eaton TVS 2300
System Type: Stage 1 – Street System
Universal Or Specific Fit: Specific
Vehicle Model: Escalade ESV

Extended Information:

Emissions : 1
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 41.75 x 33.25 x 25.75 inches
Weight: 177 PG

PDF:

Supercharger_oil_MSDS
