Standard Engine Spin On Adapter with 1/2″ NPT Ports, 18×1.5mm Engine Thread

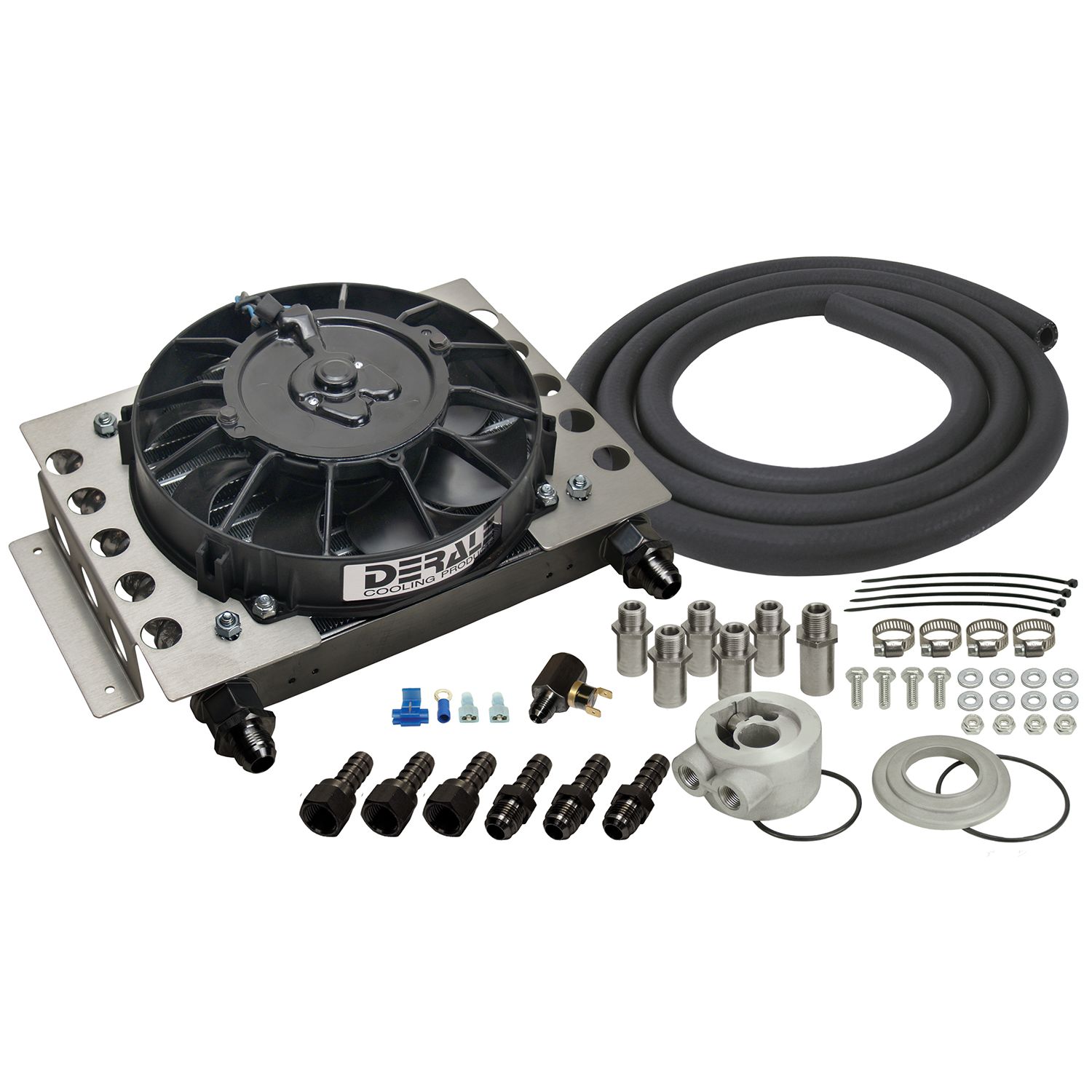

With its own air supply, this popular Atomic-Cool Remote Engine Oil Cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, this universal kit comes with a complete installation kit to install easily on most vehicle engines. See application guide for detailed applications. Also included is an 180°F in-line thermostat for activating the electric fan.

Additional Attributes:

GTIN: 00083277154508
Amp draw: 4.8
CFM: 500
Color: Black
Cooler style: Plate & Fin
Depth: 4-5/16
Fan size: 8
Height: 9-3/8
Hose length: 10
Hose size: 1/2
Inlet dim: 8-9/16
Inlet size: 5/8″-18 o-ring female x -8AN male
Mounting: 11-5/8 x 4
Prop 65: Yes
Rated functional: 250psi working / 300psi burst strength
Sandwich adapter inlet size: 3/8 NPT
Width: 12-3/4

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 19.25 x 6.75 inches
Weight: 8.5 PG

PDF:

15450
