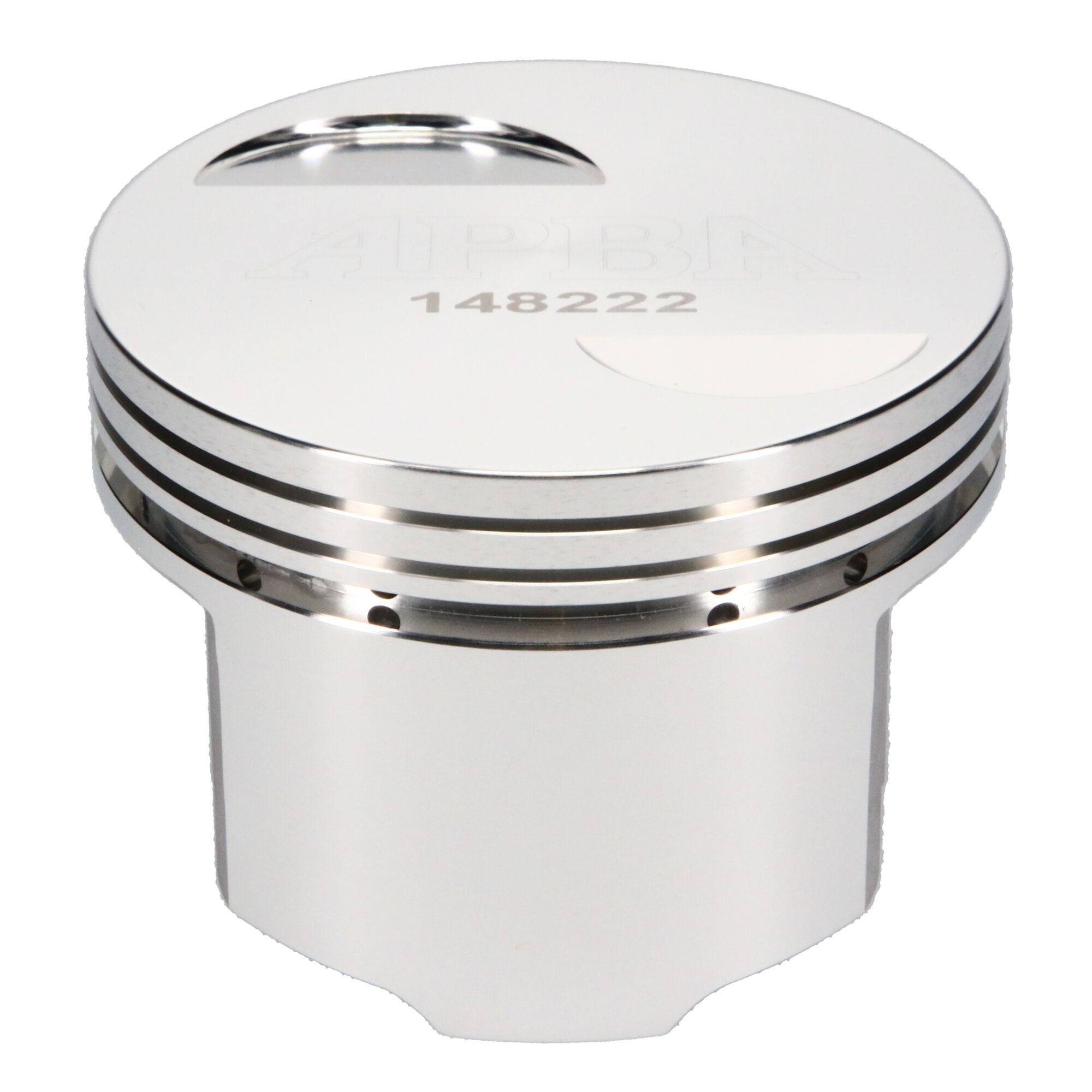

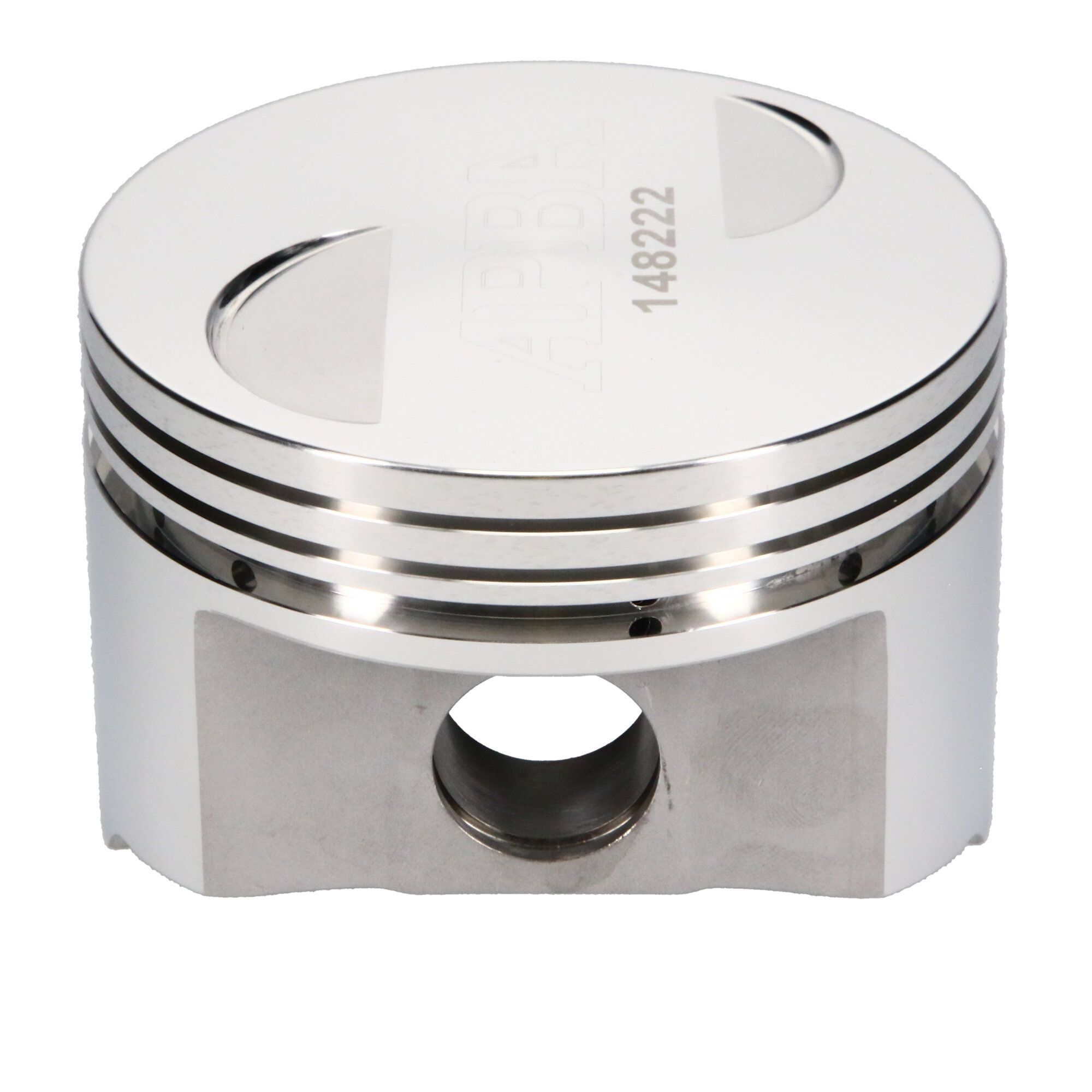

SRP – Ford, Pin.to, 3.820 in. Bore, Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Additional Attributes:

GTIN: 00193564251404
Add-On: J640F4-3820
Bore Diameter – Web: 3.820 IN
Bore Diameter: 3.820
Compression Height: 1.090
Cylinder Head: PINTO
EBAY Category ID: 33623
Engine – Web: Pinto
Engine Type: ICE
Engine: Pinto
Forging Type: FSR
Industry: Automotive
Make – Web: Ford
Make: Ford
Oil Ring Thickness: 0.188
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Piston Average Weight: 342
Piston Head Type: Flat
Piston Material: 4032
Piston Series: SRP
Piston Volume: -1.00
Product Market: Domestic
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 Warning Label.JPG
Prop 65 Yes/No: Yes
Ring Set Included: No
Second Compression Ring Thickness: 0.0600
Top Compression Ring Thickness: 0.0600
Wrist Pin Length: 2.500
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.130

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 5 x 9 x 5 inches
Weight: 5.5 PG
