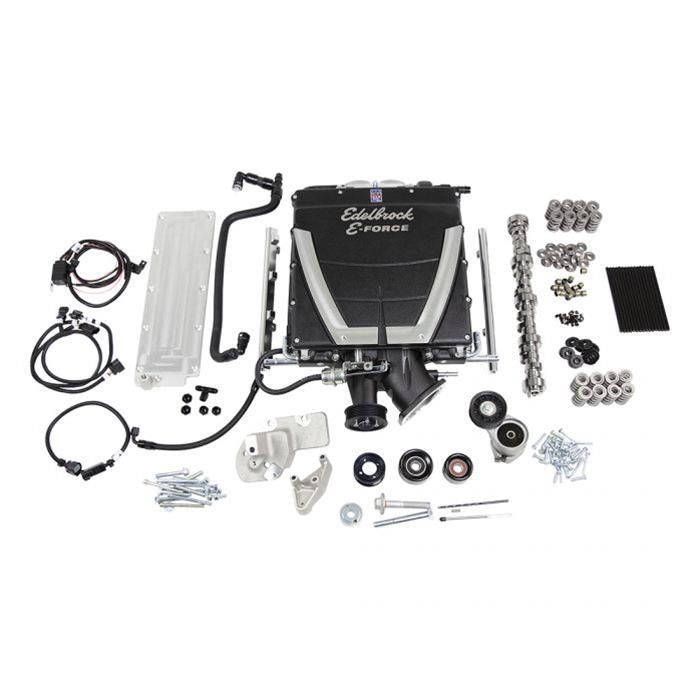

Race Supercharger Kit for GM LS3

Additional Attributes:

GTIN: 00036584413653
Advertised Exhaust Duration: 302
Advertised Intake Duration: 291
Application: 2007-2014 GM LS3 Rectangle Port
Assembly Lubricant Included: No
Basic Operating RPM Range: 2,300-7,400
C.A.R.B. E.O. Number: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam Type: Hydraulic Roller
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Exhaust Duration at .050 inch Lift: 247
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.614
Exhaust Valve Lift: 0.614
Finish: Black Powder Coated
Fuel Injector Type: N/A
Grind Number: 281MGH15
Heat Exchanger Length: N/A
Heat Exchanger Reservoir Capacity: N/A
Heat Exchanger Width: N/A
Includes Air to Water Water Pump?: No
Includes Coil Covers?: No
Includes Fuel Injectors?: No
Includes Heat Exchanger Coolant Hoses?: No
Includes Heat Exchanger Mounting Hardware?: No
Includes Heat Exchanger Reservoir?: No
Includes Heat Exchanger?: No
Includes Intercooler Core?: No
Includes MAP Sensor?: Yes
Includes Tune?: No
Intake Duration at .050 Inch Lift: 233
Intake Seals Included?: Yes
Intake Valve Lift with Factory Rocker Arm Ratio: 0.612
Intake Valve Lift: 0.612
Lifter Type: Hydraulic Roller
Lobe Separation: 115
Mounting Bracket Included: Yes
Outside Pulley Diameter: 2.625, 3.500
Recommended Cam Install Kit: 5621
Recommended Max-Lift BSR Shaft Mount Rocker System: 1981-16
Recommended Upgraded Stock Rocker Arms: 1477-16
Supercharger Displacement: 2300
Supercharger Housing Material: Cast Aluminum
Supercharger Mounting Hardware Included?: Yes
Supercharger Rotor Design: Eaton Twin Vortices
System Type: Race
Universal Or Specific Fit: Universal
Usage: Street/Strip
Water Pump Hose Outlet Size: N/A
Water Pump Output: N/A

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Electronically Announced

Packaging:

Quantity of Each: 1
Package UOM: KT
Weight:

PDF:

F2016-1
