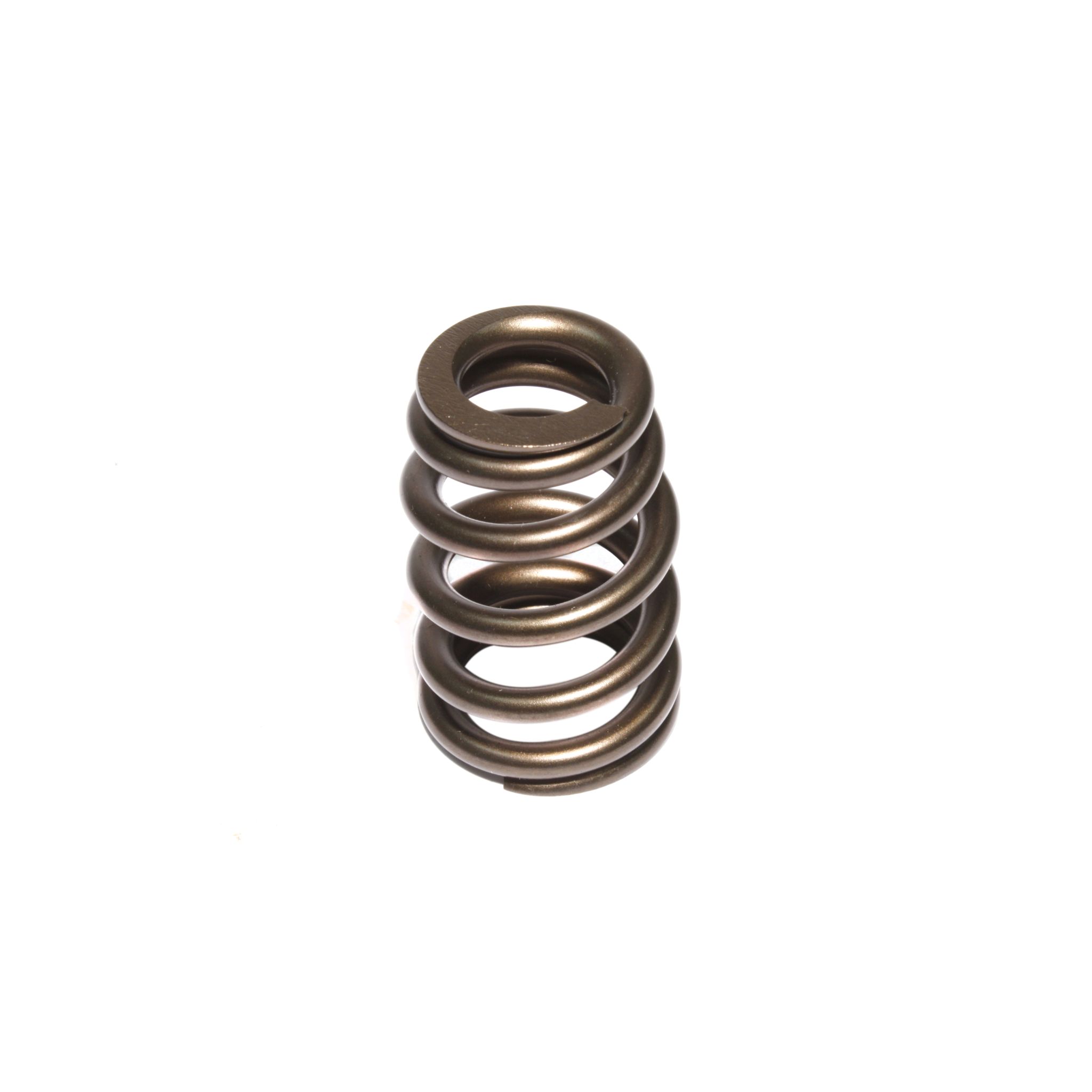

Race Sportsman 1.454″ OD Beehive Spring; 1.800″ Installed Height; 1 Spring

Yielding Greater Spring Stability. Handles valve train stress more efficiently. Increases harmonic resistance for greater stability. Eliminates damaging harmonics. Increases high RPM horsepower and durability.

Additional Attributes:

GTIN: 00036584188131
Amazon ASIN: B002EE24OA
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Coil Bind Height: 1.1
Compatible .570″ Guide Diameter Spring Seat: 4696-1
Compatible .630″ Guide Diameter Spring Seat: 4697-1
Compatible Retainer: 785-1
Compatible Shims: 4757
Compatible Spring Cup (O.D. Locator): 4704-1
Damper: No
Number of Springs: 1
Outer Bottom Spring Inside Diameter: 1
Outer Bottom Spring Outside Diameter: 1.454
Outer Top Spring Inside Diameter: 0.731
Outer Top Spring Outside Diameter: 1.185
Seat Height: 1.8
Seat Pressure: 160
Spring Rate: 400
Valve Spring Series: Race Sportsman

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 6 x 4 x 2 inches
Weight: 0.8 PG
