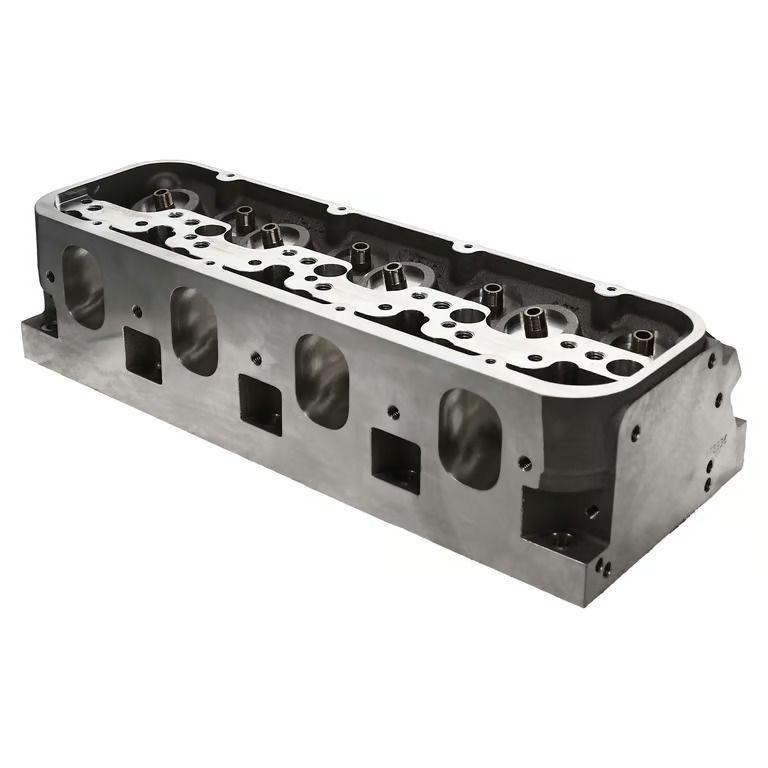

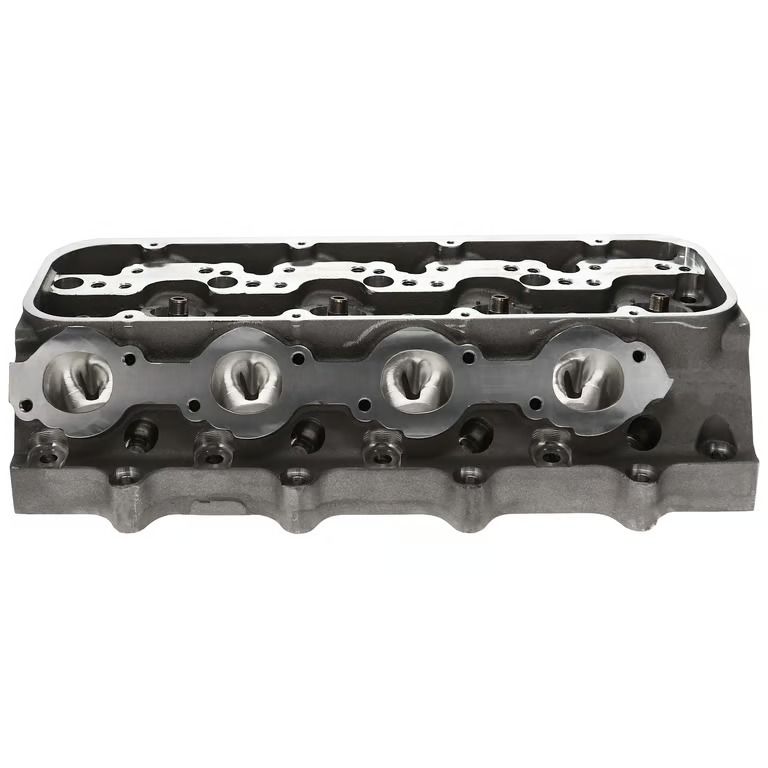

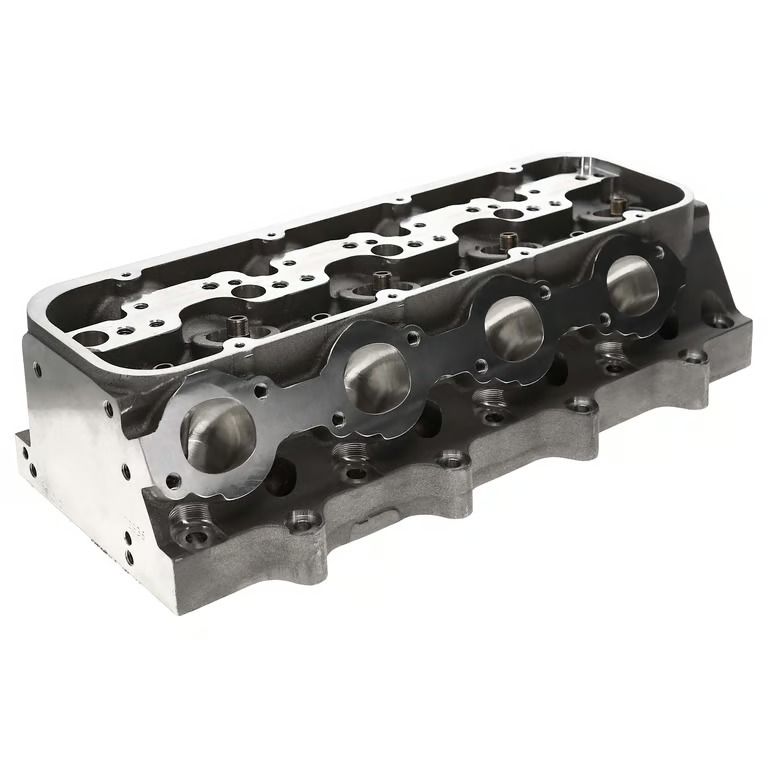

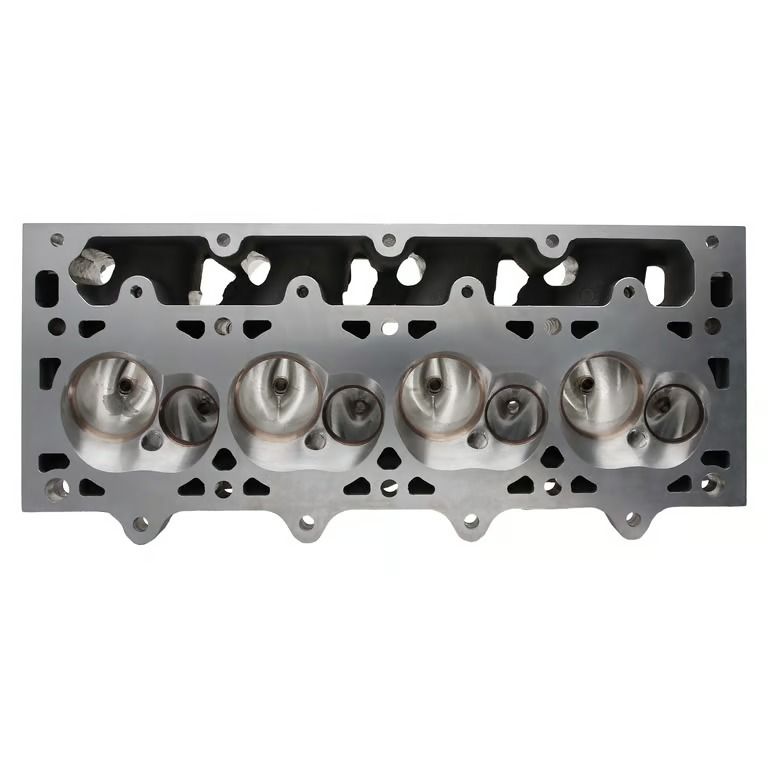

Race Series Chevrolet LS Gen III Head – 368.00 CC Port, 57.00 CC Chamber

Recommended for maximum competition LS engines with 4.155 inch bore or larger. Drag race, maximum competition, naturally aspirated, heavy nitrous or forced induction applications. Dart's New Race Series 10 Deg LS cylinder head is the ultimate choice for maximum competition. Designed with raised Pro Stock oval ports, canted valves and highly efficient wedge style combustion chambers, the Race Series 10 Deg LS is a radical departure from traditional LS heads in one other area. The intake and exhaust valve locations for each cylinder have been reversed. This feature has been the standard for maximum power wedge engines for decades. It is recommended that you contact a Dart technical representative before placing an order for this item. Detailed information about your planned engine build will help to ensure that you choose the right configuration for your motor and that any special parts are taken into consideration.

Additional Attributes:

GTIN: 00807051003666
CNC Ported: Yes
Combustion Chamber Volume: 57.00
Cylinder Head Material: Cast Aluminum Alloy
Cylinder Head Series: Race Series
EBAY Category ID: 33617
Engine – Web: LS Gen III
Engine Type: ICE
Engine: LS Gen III
Exhaust Valve Diameter: 1.600
Industry: Automotive
Intake Runner Volume: 368.00
Intake Valve Diameter: 2.300
Make – Web: Chevrolet
Make: Chevrolet
Material: Cast Aluminum Alloy
Port Volume: 368.00
Product Type: Engine Cylinder Head
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Valve Angle: 10
Valve Spring Type: Bare

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.25 x 7 x 9 inches
Weight: 24 PG
