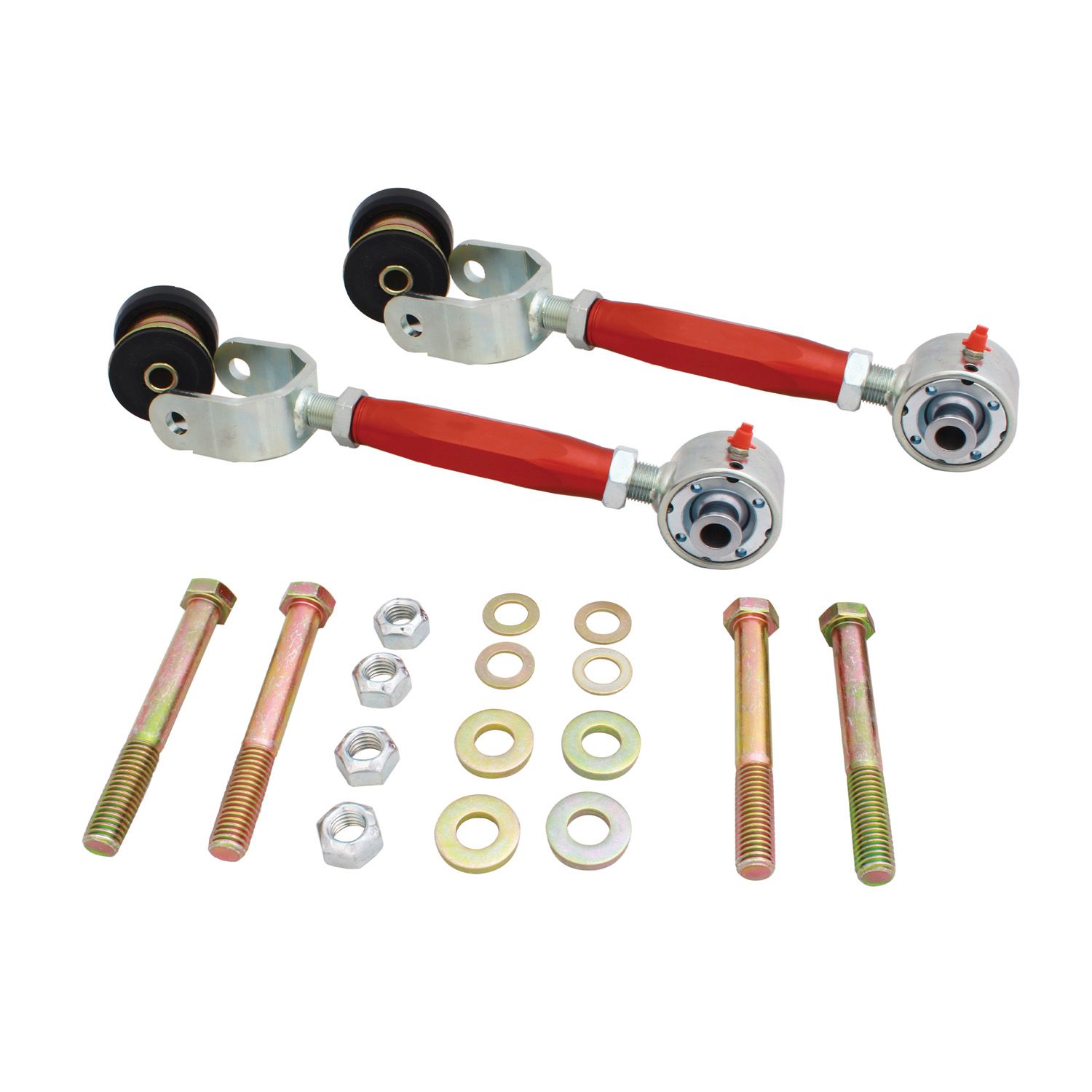

QA1 Suspension Trailing Arm 5247

All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. This keeps the tires planted firmly on the ground for improved traction and a more predictable, better handling car. For a long-lasting finish, tubular and boxed trailing arms are powder-coated gloss black, while the adjustable arms are zinc plated and anodized. Boxed Trailing Arms are constructed from 0.120'' wall cold rolled steel tubing for maximum strength and flex elimination. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Tubular Trailing Arms are constructed from 1-1/4'' diameter, 0.120'' wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight. These trailing arms have fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings. Heavy-Duty Adjustable Trailing Arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end to allow the rear suspension to move more freely and eliminate bushing bind. All parts sold in pairs.

Additional Attributes:

GTIN: 00806990064530
Bushing Color: Black
Construction: Tubular
Pre-Greased: Yes
Grease Fitting Included: Yes
Bushings Included: Yes
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Greaseable: Yes
Bushing Material: Polyurethane
Mounting Type: Bolt On
Manufacturer Part Number: 5247
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
UPC: 806990064530

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 6.5 x 3.5 inches
Weight: 8.55 PG

PDF:

5247-5249_REV_9919-118_10-26-2017 Adjustable Trailing Arm
