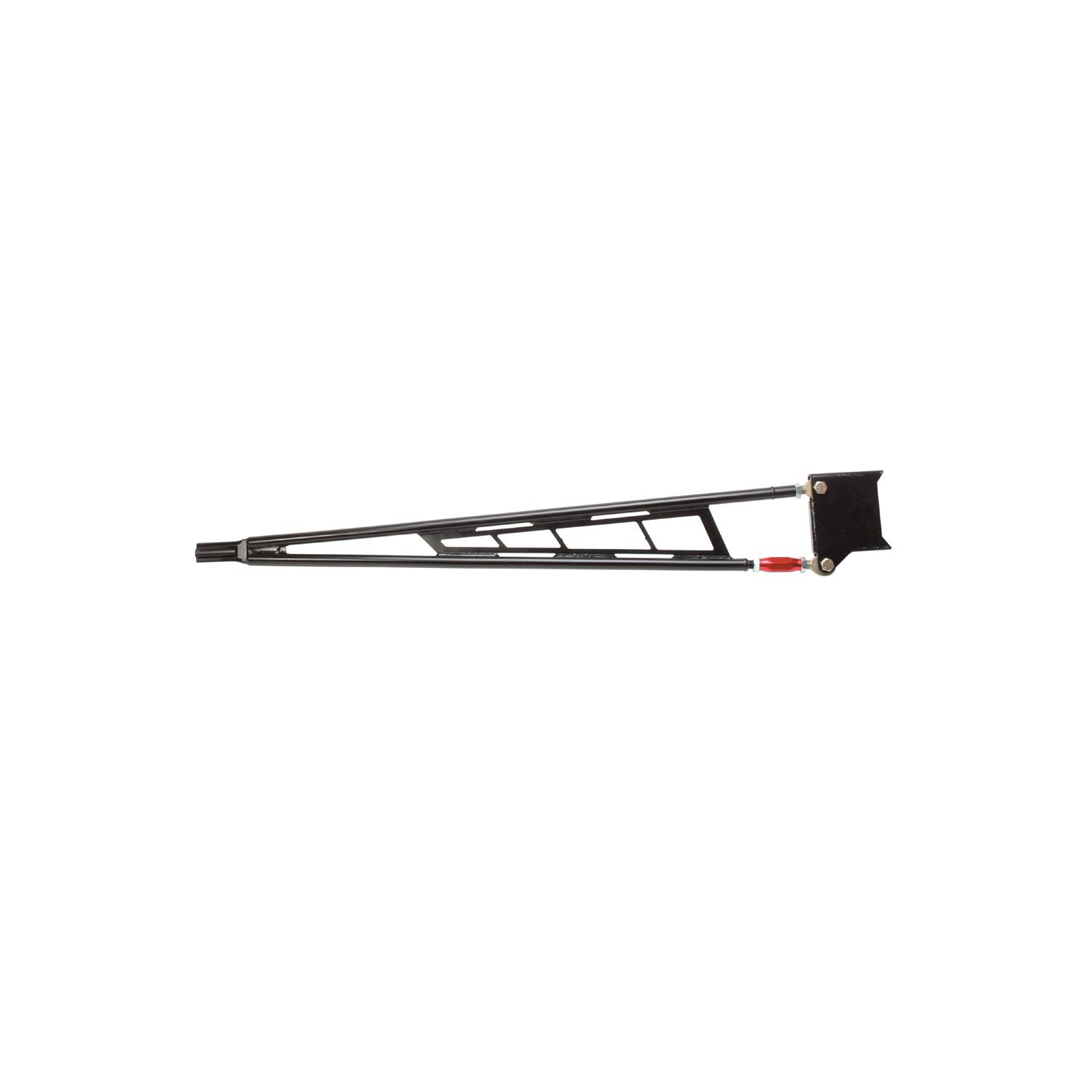

QA1 Suspension Subframe 5282

QA1's Torque Arms feature strong tubular construction and a graphite/polyurethane front bushing to reduce wheel-hop caused by excessive flex under hard accelerations and cornering. Adjustable Torque Arms are built from 1" x .120" wall tubing. They feature 3/4" spherical rod ends, allowing easy pinion angle adjustment. Powder coated black for durability with grade 8 bolts. Made in the USA. Fits vehicles with GM corporate 10-bolt rear ends in which front locator of stock torque arms has lips facing away from driveshaft. Can be used on 1982-83 Camaro/Firebird with 1984 or newer mount.

Additional Attributes:

GTIN: 00806990064714
Manufacturer Part Number: 5282
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No: Yes
UPC: 806990064714

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 59 x 8.15 x 6.1 inches
Weight: 19.3 PG

PDF:

5282_REV_11-20-2015 Adjustable torque arm
