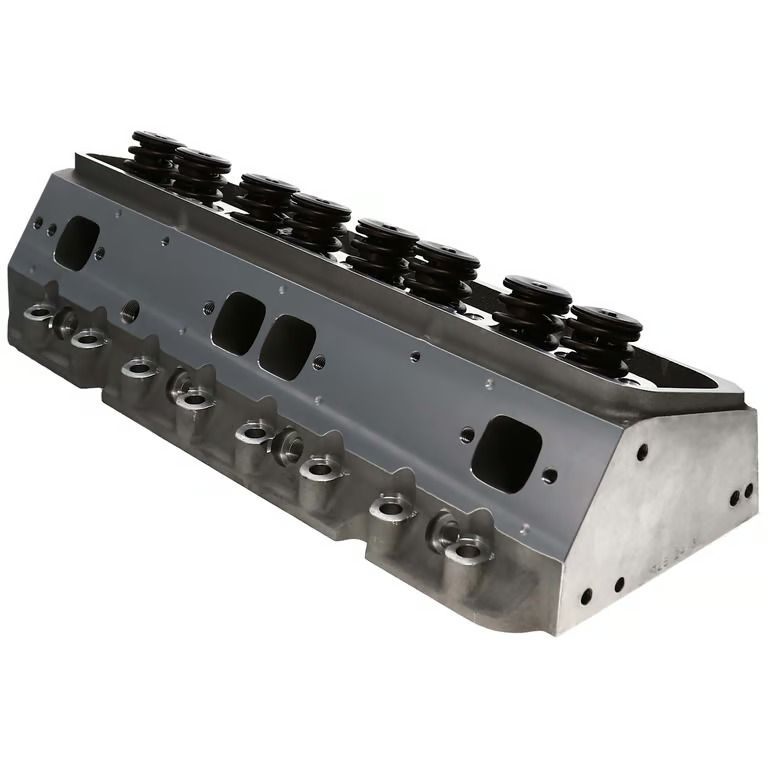

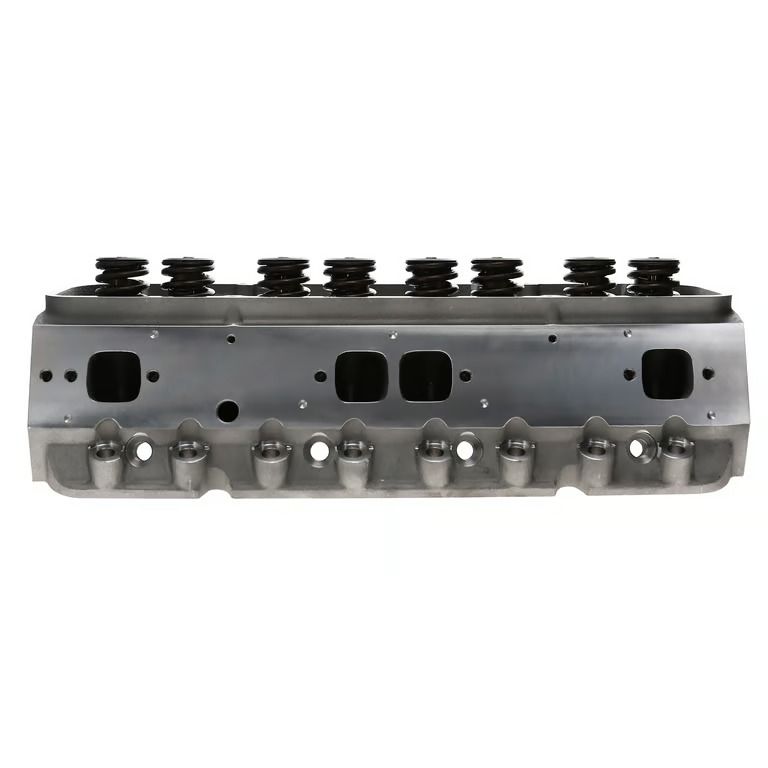

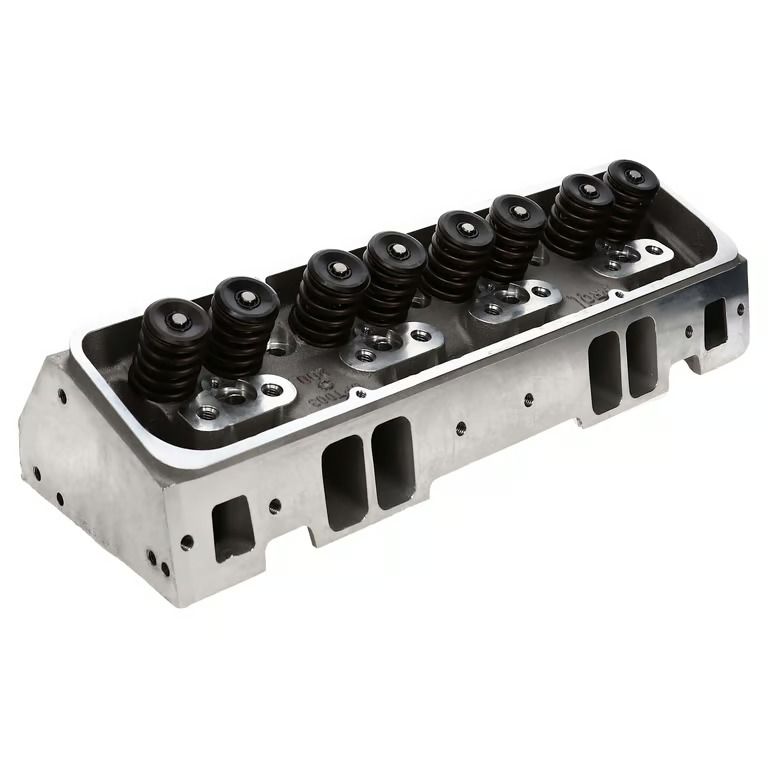

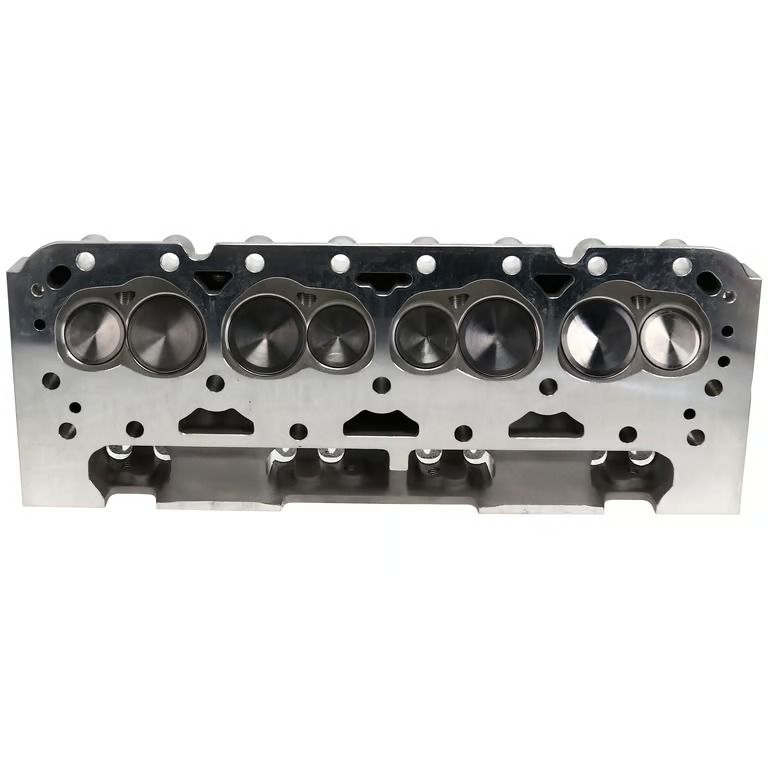

Pro1 Chevrolet Small Block Head – 200.00 CC Port, 64.00 CC Chamber

Street performance, restricted oval track, and marine performance upgrade. Mid-range to 6,500 RPM. Best for 383-434 cubic inch engines. Dart PRO1 23 Deg 200cc Platinum series heads offer increased air flow at high valve lift for large displacement engines. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Best of all, our precision cast ports produce outstanding airflow without time consuming porting. Assemblies include Stainless Steel valves, premium springs, locks, retainers, studs, guide plates and seals.

Additional Attributes:

GTIN: 00807051004380
CNC Ported: Yes
Combustion Chamber Volume: 64.00
Cylinder Head Material: RMR Cast Aluminum Alloy
Cylinder Head Series: Pro1
EBAY Category ID: 33617
Engine – Web: Small Block
Engine Type: ICE
Engine: Small Block
Exhaust Valve Diameter: 1.600
Industry: Automotive
Intake Runner Volume: 200.00
Intake Valve Diameter: 2.020
Make – Web: Chevrolet
Make: Chevrolet
Material: RMR Cast Aluminum Alloy
Port Volume: 200.00
Product Type: Engine Cylinder Head
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Valve Angle: 23
Valve Spring Diameter: 1.550
Valve Spring Maximum Lift: 0.700
Valve Spring Type: Double

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 22.25 x 7 x 9 inches
Weight: 28 PG
