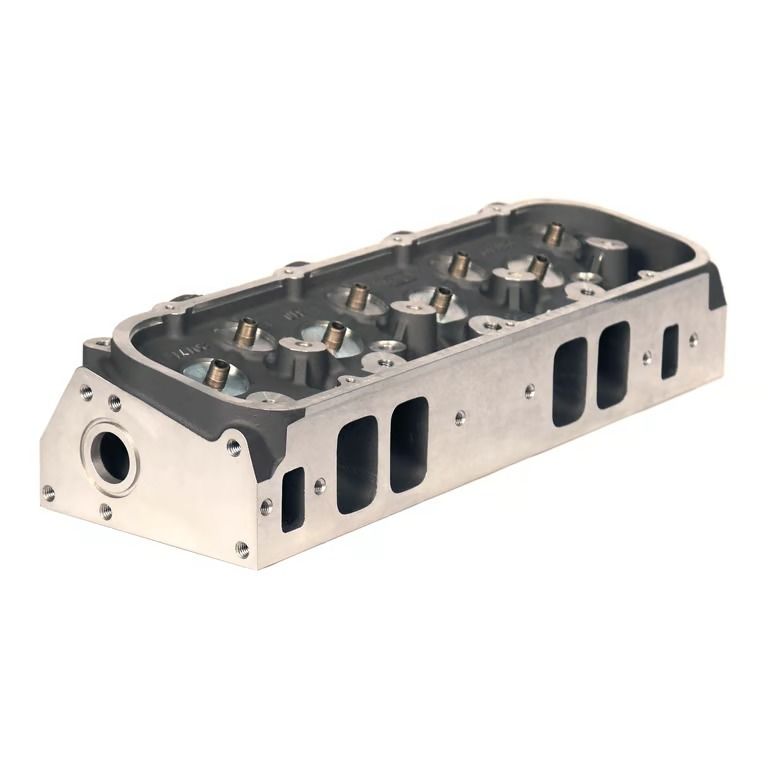

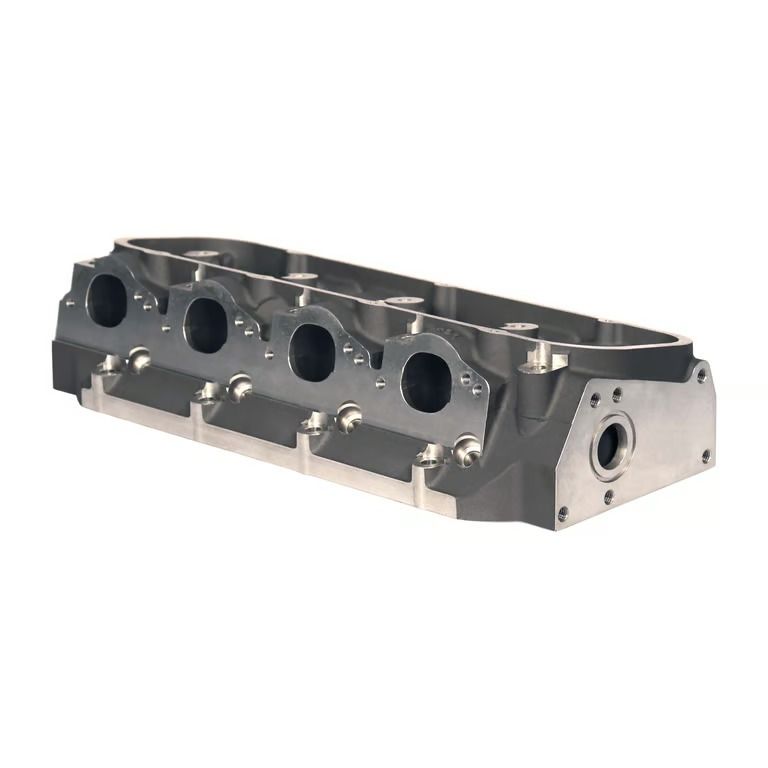

Pro1 Chevrolet Big Block Head – 345.00 CC Port, 121.00 CC Chamber

Maximum street or marine performance, bracket racing, heads up and super classes. Over 7,000 RPM, 540+ cubic inches. The PRO1 24 Deg 345cc cylinder head is for uncompromising performance and racing applications which favor high RPM power over low end flexibility. Best for big cubic inch, high RPM use. Rolled valve angles, improved spark plug location, extra long intake valves, raised exhaust ports, and fast burn chambers. Works with off the shelf pistons, valve train components, and intake manifolds. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.

Additional Attributes:

GTIN: 00807051011777
CNC Ported: Yes
Combustion Chamber Volume: 121.00
Cylinder Head Material: RMR Cast Aluminum Alloy
Cylinder Head Series: Pro1
EBAY Category ID: 33617
Engine – Web: Big Block
Engine Type: ICE
Engine: Big Block
Exhaust Valve Diameter: 1.880
Industry: Automotive
Intake Runner Volume: 345.00
Intake Valve Diameter: 2.300
Make – Web: Chevrolet
Make: Chevrolet
Material: RMR Cast Aluminum Alloy
Port Volume: 345.00
Product Type: Engine Cylinder Head
Prop 65 (C, R or CR): CR
Prop 65 Yes/No: Yes
Valve Angle: 24
Valve Spring Type: Bare

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24 x 10.25 x 8 inches
Weight: 34 PG
