Pro Flo 4 EFI ECU and Electronics Kit for Ford 289/302 Engines

This Pro-Flo 4 ECU and Electronics Kit for Ford 289/302 engines offers an economical, plug-and-play solution for enthusiasts who want to keep their existing EFI Induction system (intake manifold, fuel rails, and accessories) but want the performance advantages of the Pro-Flo 4 EFI system.

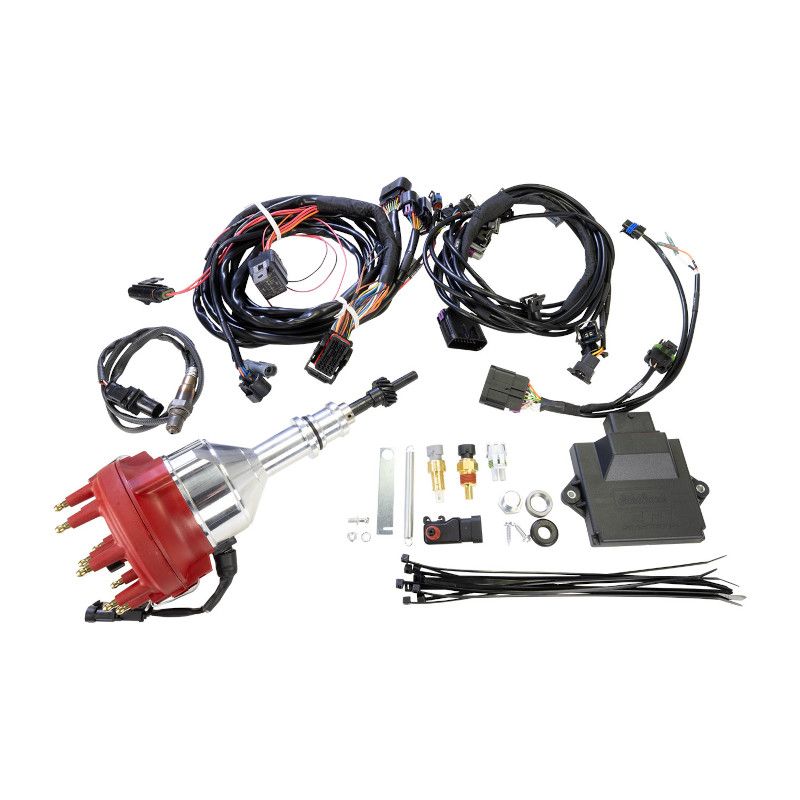

Pro Flo 4 EFI ECU and Electronics kits include supporting sensors, a distributor, an ECU, a wide-band O2 sensor, a wiring harness, and components for Ford 289/302 applications. This EFI system has both fuel and spark control features. The ECU includes a learning capability feature that adjusts the fuel injection calibration to maintain the specified target air-fuel ratio. Minimal setup and tuning adjustments are required with Edelbrock’s E-Tuner Software for IOS and Android tablets and cell phones. The software includes base calibrations for most applications and necessary adjustments for AFR target, ignition curve, idle speed, acceleration tuning, coolant fans, rev limiter, etc.

The customer must provide an induction system including a manifold, throttle body, fuel rails, and injectors. Also, a fuel pump, regulator, or fuel lines are not included. Users must refer to the Calibration Matrix in the instructions for the required injector size, depending on engine cubic inches and HP requirements. Required injector sizes 29 lb./hr., 35 lb./hr., 42 lb./hr., and 60 lb./hr. Compatibility with forced induction applications requires 80 lb./hr. injectors.

Additional Attributes:

GTIN: 00085347899234
Fuel Pressure Regulator Included: No
Datalogging Support: Yes
Self-Tuning: Yes

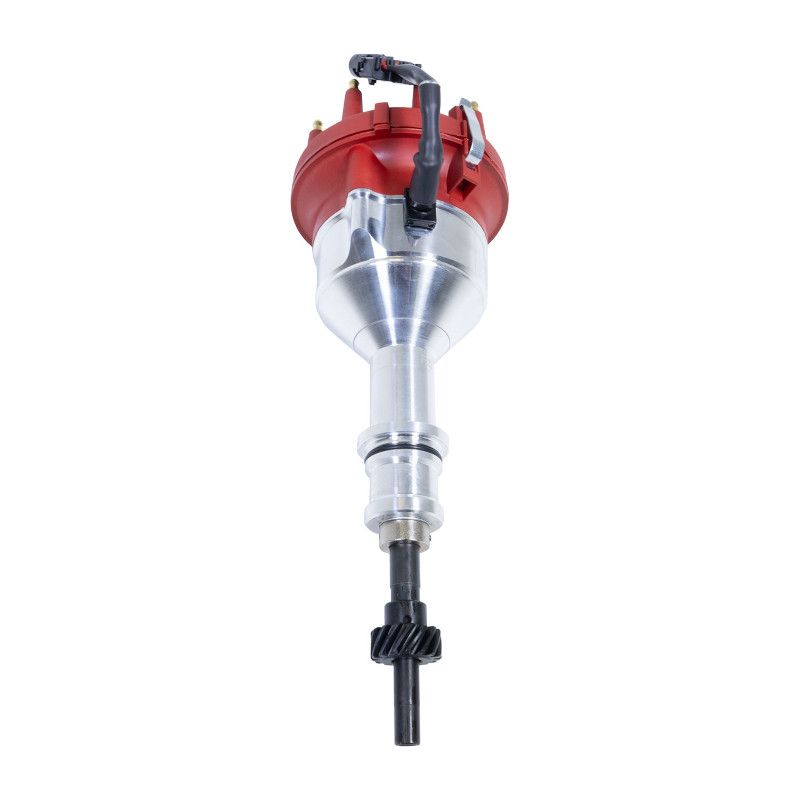

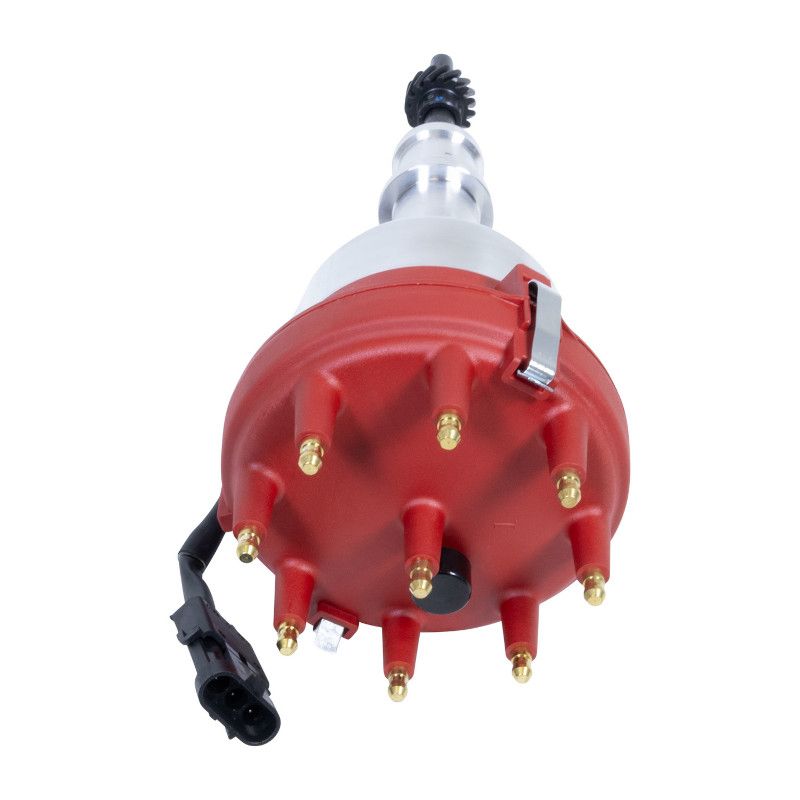

Distributor Included: Yes
Fuel Pump Included: No
Fuel Injectors Included: No
Cross sell / Upsell Part Numbers: 35930 29215
Data Logger: Yes
Display Included: No
Drive-By-Wire Capable: No
ECU Included: Yes
EGR: No
Fuel Rails Included:: No
Handheld Controller Included: No
IAC Motor Included: No
IAT Sensor Included: Yes
Injection Style: Sequential Port
Intake Manifold Included: No
MAP Sensor Included: Yes
Maximum Horsepower W/ Gas: 900
Metering Style: Speed Density
Notes: System tuning supported by E Tuner 4 App
Oxygen Sensor Included: Yes
Power Adder Compatible: Yes
Prop 65 – Long Label: WARNING: This product can expose you to Tetrabromobisphenol A, Nickel, Carbon Black, Nickel Monoxide, 2-Methylimidazole, Cobalt, Antimony trioxide, and Cadmium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Prop 65 Y/N: Y
Quantity: Sold as a kit
Related Products: All Edelbrock and FAST EFI Ford 289/302 Manifolds 22746 Ignition Coil FAST and Edelbrock Throttle Bodies IAC Adapter FAST #307022, Edelbrock #3855 Edelbrock Pico and Siemens Fuel Injectors 29LbHr, 35LbHr, 42LbHr. 60LbHr, 80LbHr Air Cleaners EFI Fuel systems 36031 Edelbrock Fuel Sump 8041 Throttle and Trans Kick Down Bracket
Required Products: Fuel Injection Intake assembly including Fuel Rails and Injectors
Throttle Body Included: No
Timing Control Compatible: Yes
TPS Sensor Included: No
Transmission Controller Included: No
User Tunable: Yes
Wiring harness included: Yes

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 20.1 x 14.8 x 8.8 inches
Weight: 11.6 PG

PDF:

63-35715 Install Instructions PF4
