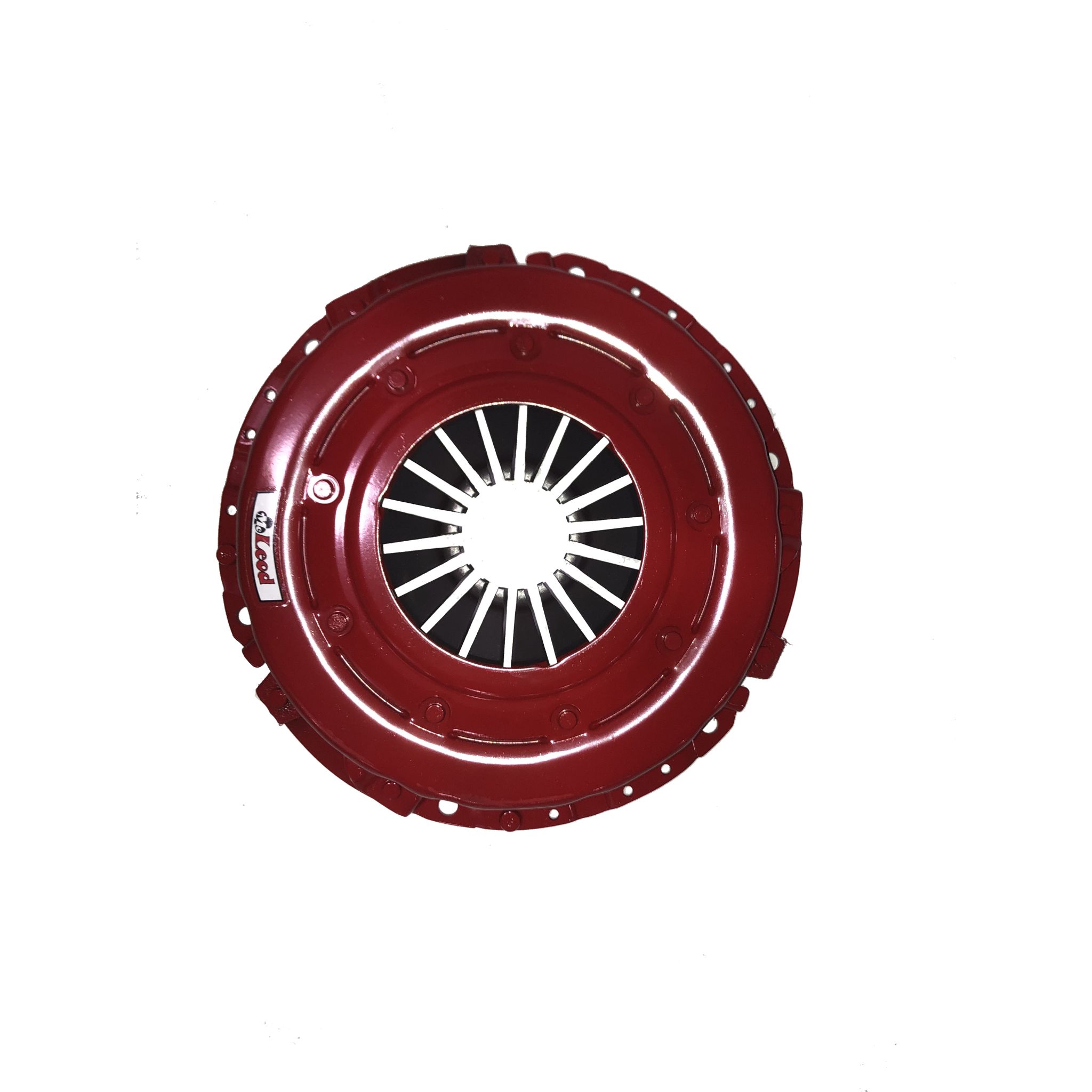

Pressure Plate:Diaphragm: 12″ B&B Pattern: #2600 :GM/Mopar

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles–domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

Additional Attributes:

GTIN: 00887753018823
Application: GM, Mopar, AMC
Bolt Circle: 12-5/8In.
Bolt Holes Dia: 3/8 x 16
Clamp Load: 2400 Lbs
Counterweight Assist: No
Dowel Pins Required: No
Hardware Included: No
Make: GM, Mopar, AMC
Pressure Plate Diameter (in.): 12.000
Pressure Plate Pattern: Borg & Beck Even Pattern
SFI Approved: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 13.25 x 3.25 inches
Weight: 20 PG

PDF:

McLeodProductInstructions
