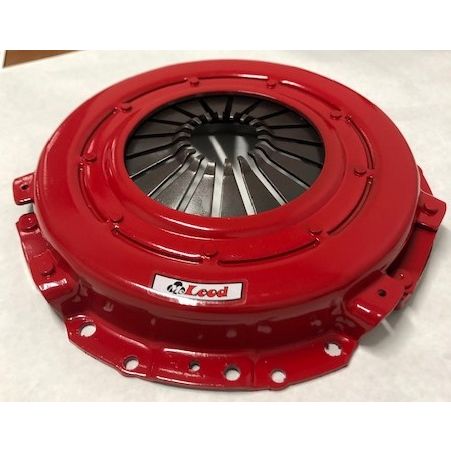

Pressure Plate:Diaphragm: 11″ 2005 To 10 Mustang: #2570 :Ford

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles–domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

Additional Attributes:

GTIN: 00887753018618
Application: 2005-2010 Mustang
Bolt Circle: 12-3/8In.
Bolt Holes Dia: 10mm
Clamp Load: 2570 Lbs
Counterweight Assist: No
Dowel Pins Required: Yes
Hardware Included: No
Make: Ford
Pressure Plate Diameter (in.): 11.000
Pressure Plate Pattern: Borg & Beck Even Pattern
SFI Approved: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 14.5 x 13.25 x 3.25 inches
Weight: 20 PG

PDF:

McLeodProductInstructions
