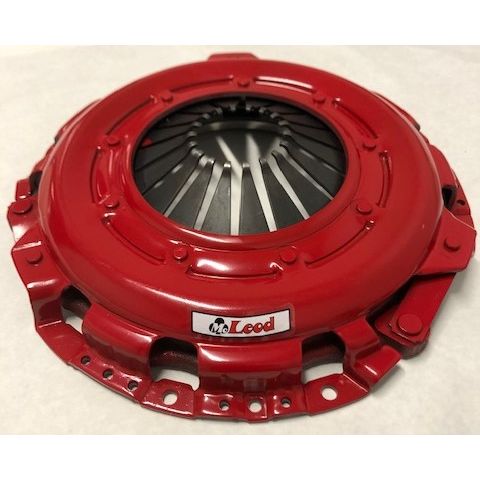

Pressure Plate:12″ Diaph:Ford W/ Long Pattern:5/16″ Bolts

McLeod Racing makes quality performance pressure plates for a wide variety of vehicles–domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!

Additional Attributes:

GTIN: 00887753018847
Application: Ford Big Block 429-460; Big Block Fe 332-428
Bolt Circle: 3-9/16
Bolt Holes Dia: 5/16 x 18
Clamp Load: 2250 Lbs
Counterweight Assist: No
Dowel Pins Required: No
Hardware Included: No
Make: Ford
NOTE:: Fingers are laser cut for large shaft top loader 1.750In. guide tube.
Pressure Plate Diameter (in.): 12.000
Pressure Plate Pattern: Ford Long Pattern
SFI Approved: Yes

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 13.25 x 14.5 x 3.25 inches
Weight: 25 PG

PDF:

McLeodProductInstructions
