PowerFlo Lift Pump and Fuel System Upgrade kit for 11-16 Powerstroke (Long Bed)

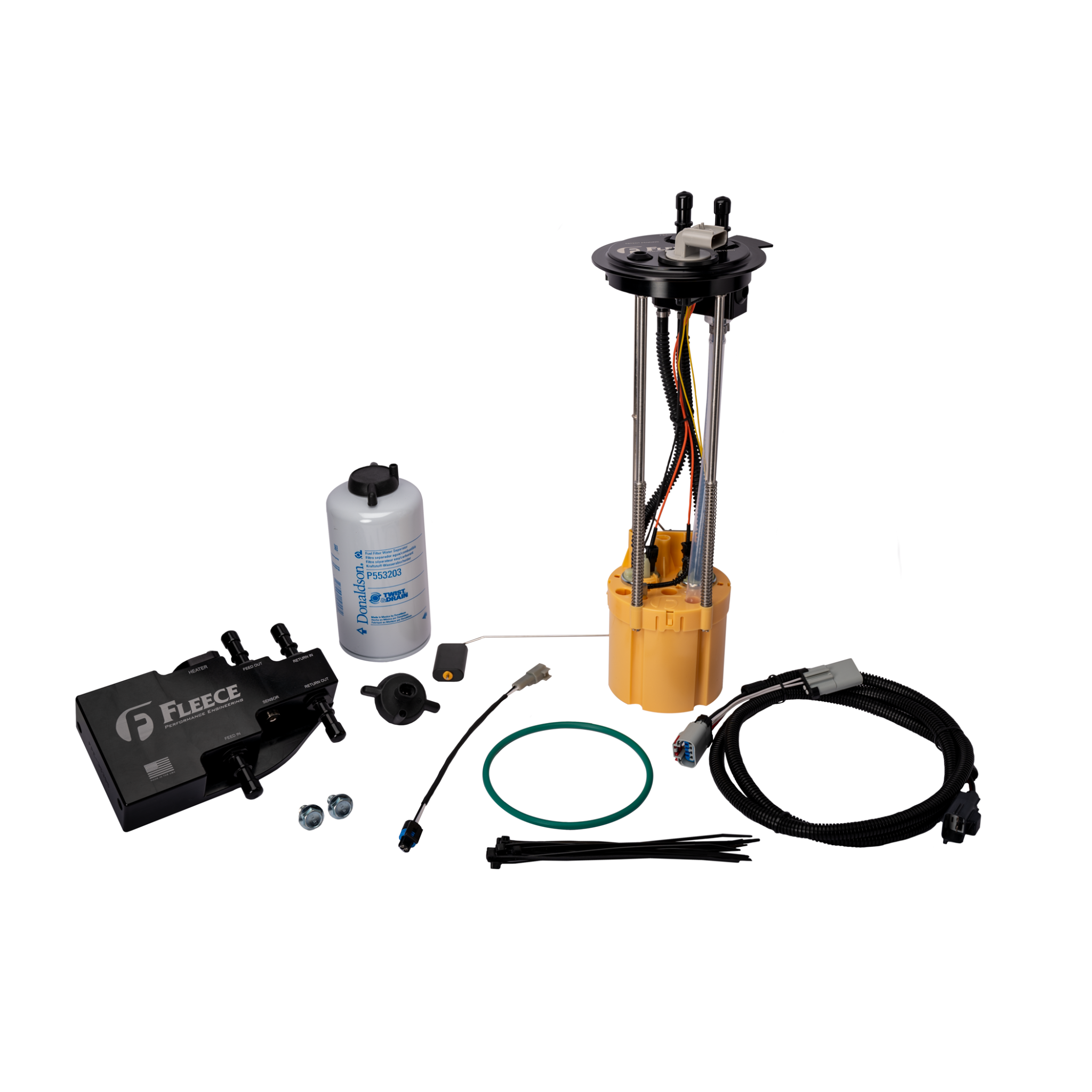

This product has also been tested and verified with 2011-2016 trucks equipped with and S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit. Kit includes: PowerFlo Lift Pump with integral fuel level sender Filter base with Donaldson (P/N P553203) and provision for optional fuel heater (4 micron rating at 99% efficiency) Water-in-fuel sensor Chassis wiring harness and WIF sensor extension harness Fuel sending unit tank O-ring Mounting hardware Cross-Reference: Year FPE Part Number Replaces FORD OE Part Number 2011-2016FPE-FMC-1116-SBBC3Z 9275-A 2011-2016FPE-FMC-1116-LBBC3Z 9275-B Application Notes Operating pressure of: 65-70 psi at idle This product has been tested and verified to work with 2011-2016 trucks equipped with an S&S Diesel Motorsport DCR conversion kit and the S&S Diesel Motorsport CP4 Disaster Prevention Kit. This product has been confirmed to fit Titan and S&B aftermarket fuel tanks.

Additional Attributes:

GTIN: 00670875719286
Emissions Certification Link: https://ww2.arb.ca.gov/sites/default/files/aftermarket/devices/eo/d-834-18.pdf
Emissions Certification: CARB EO D-834-18
Emissions_Certifications: CARB EO # D-834-18
Prop 65 (C, R or CR): CR
Prop 65 – Short Label: Prop 65 WARNING: Cancer & Reproductive Harm – P65Warnings.ca.gov
Prop 65 Yes/No: YES

Extended Information:

Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 23 x 11 x 13 inches
Weight: 20 PG

PDF:

FPE-2023-109_FPE-PF-FMC-1116-SB_LB
