Performance Intercooler Kit, fits Ford Mustang EcoBoost 2024+, Black Polished

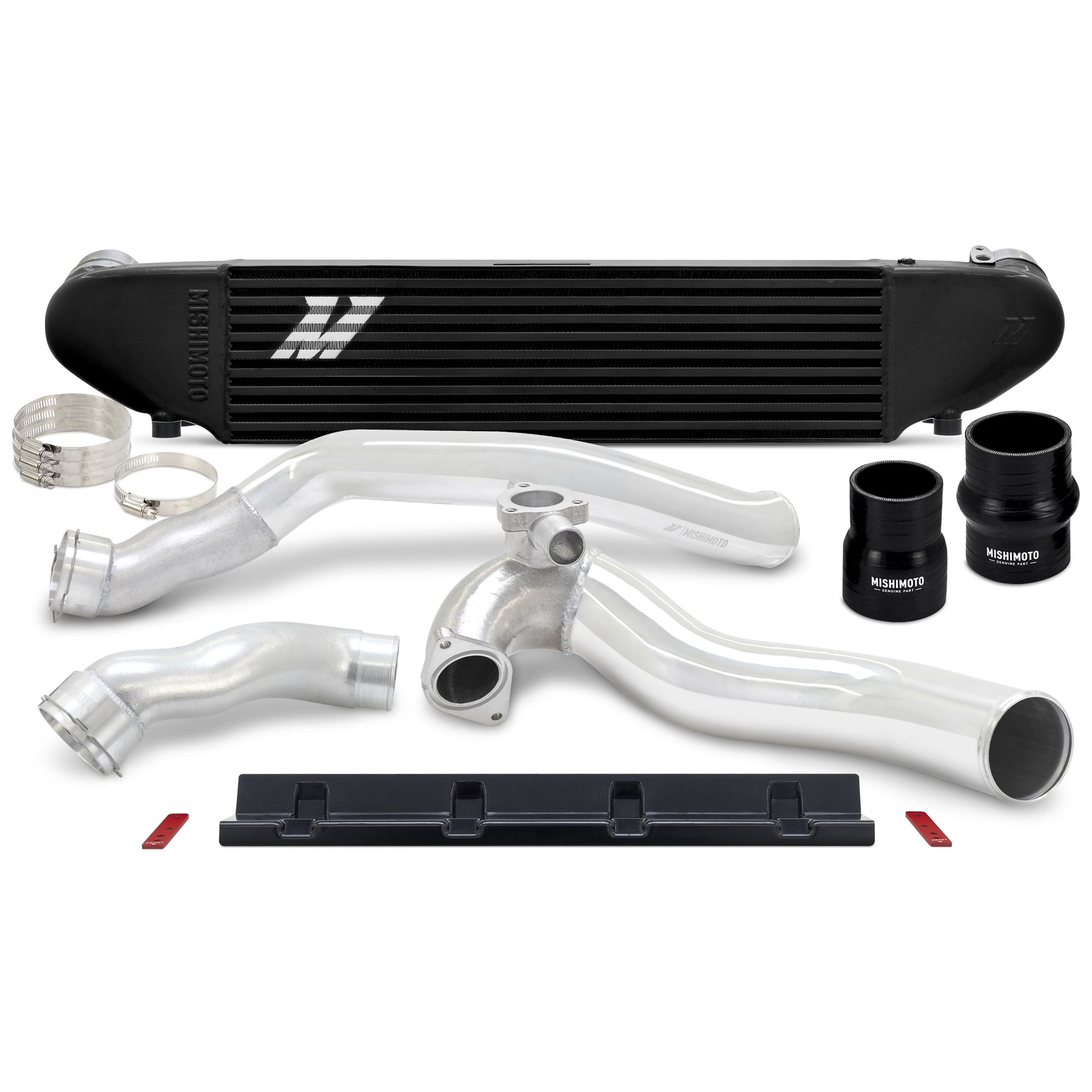

Upgrade your 2024+ Ford Mustang EcoBoost with the Mishimoto Intercooler and Pipe Kit, a complete system designed to maximize airflow, lower intake temps, and boost performance. This kit combines a direct-fit bar-and-plate intercooler with high-flow hot-side and cold-side aluminum pipes, delivering safe, tune-free power gains.
—

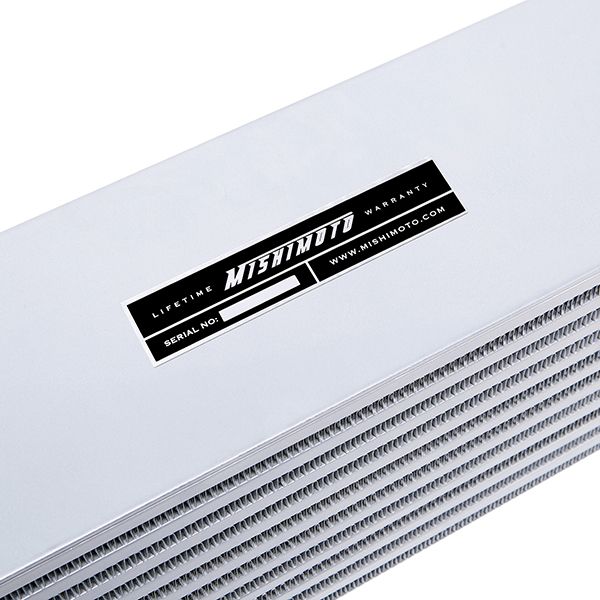

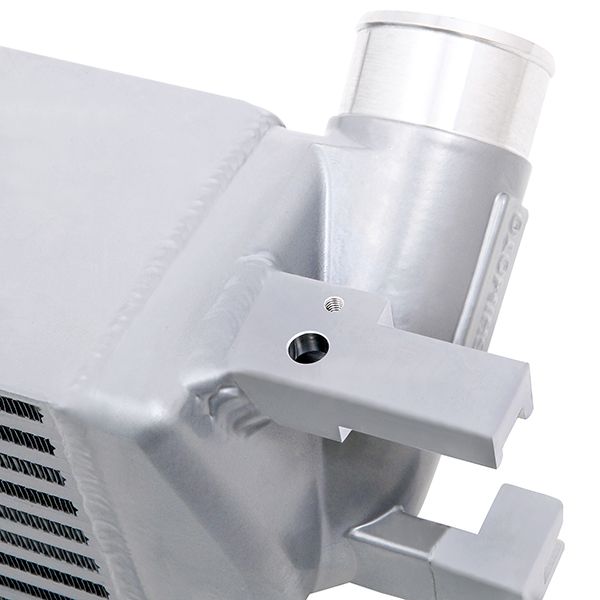

The intercooler features cast aluminum end tanks and fits in the stock location with a 60% increase in core volume. Oversized 63mm inlets/outlets improve flow, while a diverter plate ensures even air distribution. Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce NVH. Four EPDM rubber sandwich mounts isolate vibration and add rigidity. Gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning, and a pre-drilled NPT port allows for auxiliary sensors or data logging.
—
The included intercooler pipes are made from durable aluminum with cast connections for strength and precise fitment. A cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install. CNC-machined quick-disconnect fittings, DuraCore™ silicone couplers, high-torque worm-gear clamps, and an ID-matched transition coupler ensure secure, high-flow connections. Extra clearance also allows compatibility with the Mishimoto performance radiator.
—
Available in polished or wrinkle black finishes, the Mishimoto Intercooler and Pipe Kit provides improved airflow, reduced intake temps, better underhood aesthetics, and long-term durability. Installation is straightforward with all hardware included, and every kit is backed by the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00840197725627
Install Difficulty: 3
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F
SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
SellingPoint04: Largest possible core in stock location with 60% more volume than factory
SellingPoint05: Designed to mount to subframe with four rubber sandwich mounts for rigidity and vibration isolation
SellingPoint06: DuraCore™ silicone couplers designed to withstand high temperature and boost pressures
SellingPoint07: Includes CNC quick-disconnect fittings and high-torque worm-gear clamps for secure fitment
SellingPoint08: Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment
SellingPoint09: ID-matched transition coupler on cold side for smooth airflow into intercooler
SellingPoint10: Diverter plate in hot side end tank offers even airflow distribution
SellingPoint11: Intercooler available in silver or black for sharp aesthetics behind the grille
SellingPoint12: Pipes available in polished or wrinkle black finish for a clean underhood look
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2024+ Ford Mustang EcoBoost
TechSpec Centerline Radius: 3.15
TechSpec Chassis Codes: S650
TechSpec Core Height (in): 6.08
TechSpec Core Length (in): 22.83
TechSpec Core Thickness (in): 3.54
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.3L EcoBoost I4
TechSpec Includes: (1) Mishimoto Performance Intercooler–(1) Deflector Panel Kit–(1) Bracket Kit–(2) Hot Side Pipes–(1) Cold Side Pipe–(2) Duracore Couplers–(4) Spring Clamps–(2) O-Rings–(3) Buttonhead Locking Bolts–(1) Tree Clip Zip Tie–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.44
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 526
TechSpec Outlet (in): 2.44
TechSpec Overall Height (in): 6.5
TechSpec Overall Length (in): 35.7
TechSpec Overall Width (in): 5.3
TechSpec Pipe Diameter: 2.75
TechSpec Weight (lbs): 17

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: BX
Dimension: 42 x 11 x 11 inches
Weight: 39 PG

PDF:

MMINT-MUS4-24_Install-Guide_REVA
