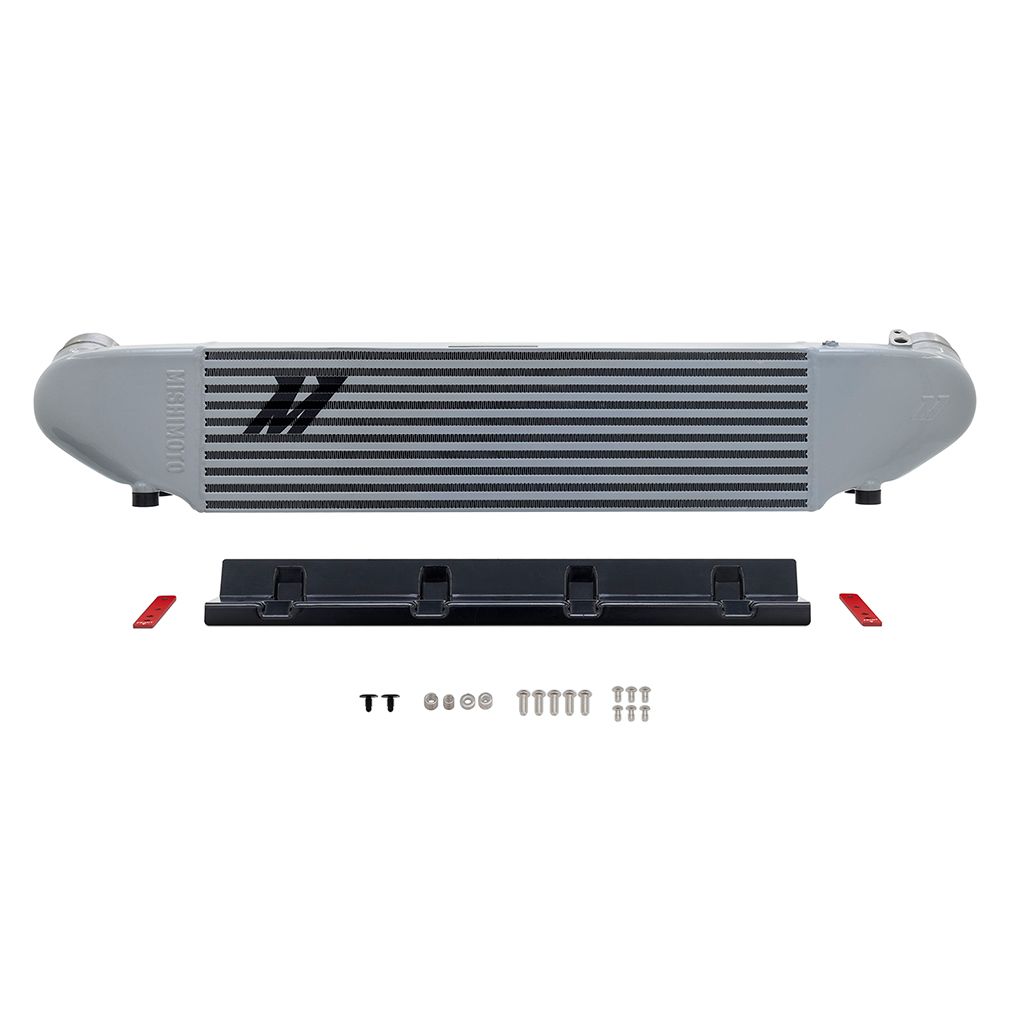

Performance Intercooler, Fits Ford Mustang EcoBoost 2024+, Silver

Take your 2024+ Ford Mustang EcoBoost to the next level with the Mishimoto Performance Intercooler. Engineered for maximum cooling efficiency and reliability, this direct-fit intercooler is built to handle the demands of spirited driving while remaining safe to run on the stock tune. Featuring a robust bar-and-plate core with cast aluminum end tanks, it delivers improved airflow, reduced intake temperatures, and increased power for your EcoBoost Mustang.
—
The Mishimoto intercooler boasts the largest possible core size that can fit in the stock location, providing a 60% increase in core volume compared to the factory unit. Oversized 63mm inlet and outlet diameters outflow the stock system for better charge air movement, while a diverter plate in the hot-side end tank promotes even airflow distribution across the core. Gains of up to 12 horsepower and 11 ft-lbs of torque can be achieved without any tuning required.
—
Installation is simple and fully compatible with stock ducting and both OEM and Mishimoto intercooler pipes, with no cutting required. Foam sealing strips ensure maximum airflow through the core, and a custom vacuum-formed bottom air deflector improves underbody flow while reducing NVH thanks to its ribbed structure. To support the increased weight of the larger core, the intercooler mounts directly to the subframe using four EPDM rubber sandwich mounts, isolating vibration and increasing overall rigidity.
—
Every intercooler comes equipped with a pre-drilled and tapped NPT sensor port for data logging or the addition of auxiliary sensors. All necessary hardware is included for a straightforward installation.
—
The Mishimoto Performance Intercooler for the 2024+ Ford Mustang EcoBoost is built for enthusiasts who want lower intake temps, increased power, and a long-lasting solution to keep their Mustang running strong. Like all Mishimoto products, this intercooler is backed by the Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00840197725573
Install Difficulty: 3
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune
SellingPoint02: Reduces charged-air temperatures at outlet by up to 60°F
SellingPoint03: Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
SellingPoint04: Largest possible core without modification in stock location
SellingPoint05: Mounts to subframe with rubber sandwich mounts for vibration isolation and superior support
SellingPoint06: Hot-side end tank features diverter plate for even airflow
SellingPoint07: Foam strips and custom bottom air deflector maximize airflow and reduce NVH
SellingPoint08: Impressive 60% increased core size over stock
SellingPoint09: Includes all necessary hardware for installation
SellingPoint10: Available in silver or black for sharp aesthetics behind the grille
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ford Mustang EcoBoost 2024+
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: S650
TechSpec Core Height (in): 6.08
TechSpec Core Length (in): 22.83
TechSpec Core Thickness (in): 3.54
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: 2.3L EcoBoost I4
TechSpec Includes: (1) Mishimoto Performance Intercooler–(1) Deflector Panel Kit–(1) Bracket Kit–Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.44
TechSpec Maximum Recommended Boost Pressure (PSI): 50
TechSpec Maximum Recommended Horsepower: 526
TechSpec Outlet (in): 2.44
TechSpec Overall Height (in): 6.5
TechSpec Overall Length (in): 35.7
TechSpec Overall Width (in): 5.3
TechSpec Weight (lbs): 12.3

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: BX
Dimension: 42 x 11 x 11 inches
Weight: 29 PG

PDF:

MMINT-MUS4-24_Install-Guide_REVA
