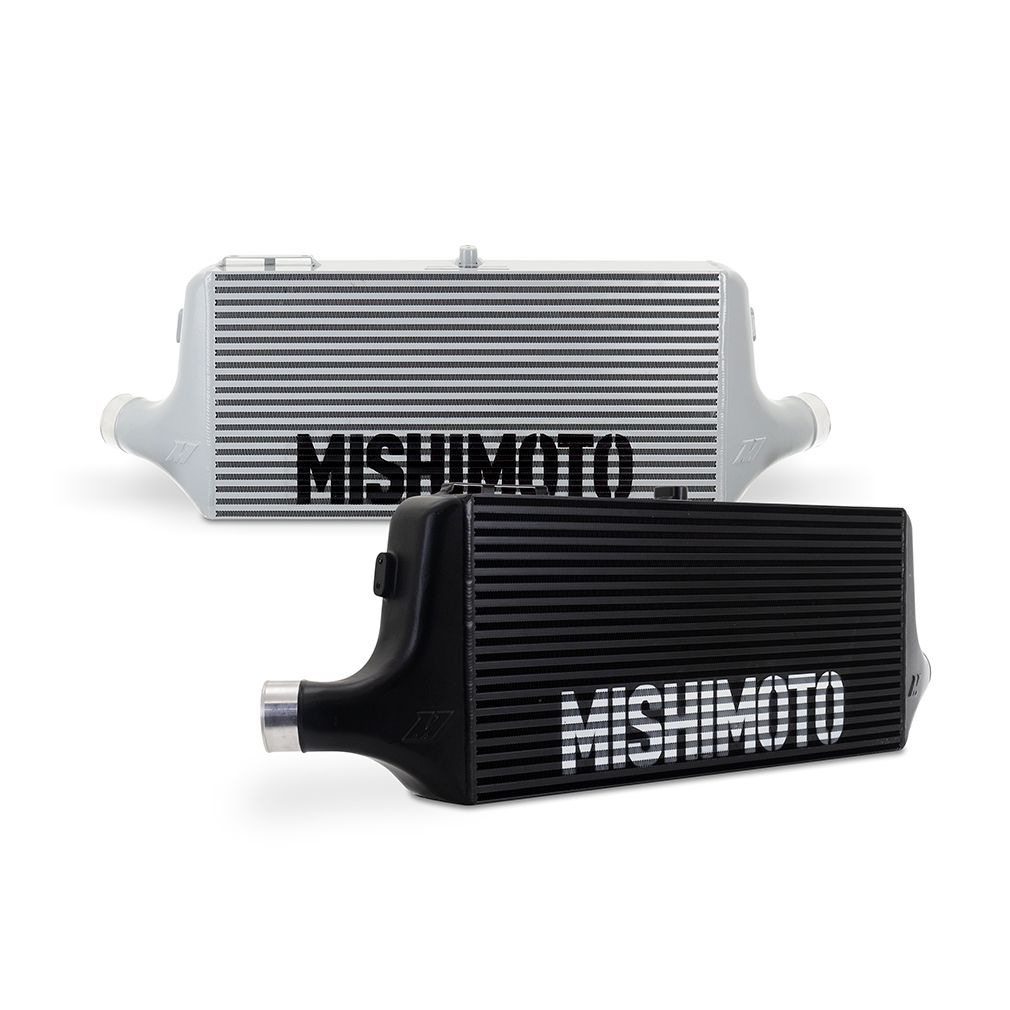

Mishimoto Universal Intercooler L-Line

Big power requires big cooling, and Mishimoto is here to deliver. This Mishimoto universal L-line intercooler features a massive 4"-thick core that's capable of supporting up to 1,000 horsepower. The one-piece, cast-aluminum end tanks are far stronger than cut-and-weld tanks, making them capable of holding up to 60 PSI of boost. Large 2.4" inlet and outlets ensure ample flow, while the 26.57"x12.4" bar-and-plate core effectively transfers heat out of your charge air. Unlike many stock plastic end tank intercoolers, our end tanks are precision TIG-welded to the core for durability and reliability, pass after pass.—-This universal L-line intercooler features three integrated mounts with pre-threaded M6 holes to make fabricating mounts and installing easy. The center support mount also ensure the intercooler is properly supported for aggressive driving. An integrated harness/sensor mount makes keeping your wires safe and tidy easy. This intercooler is available in a durable sleek silver or stealth black powder-coated finish. Like all our performance products, this universal L-line bar-and-plate intercooler is backed by our Mishimoto Lifetime Warranty.

Additional Attributes:

GTIN: 00840197720905
Install Difficulty: 3
OptionLabel: Black
Prop 65 – Short Label: WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Durable bar-and-plate core provides superior heat transfer and effectively reduce charge air temps
SellingPoint02: Massive, 4″-thick core and 2.4″ inlet/outlet support up to 1,000 horsepower
SellingPoint03: Robust, one-piece cast aluminum end tanks withstand up to 60 PSI of boost pressure
SellingPoint04: Three integrated mounting points with pre-threaded M6 holes make mounting easy
SellingPoint05: Included bracket for harnesses or sensors keeps wiring safe and secure
SellingPoint06: Precision TIG-welded joints won’t crack under pressure
SellingPoint07: Available in durable stealth black or sleek silver powder-coated finish
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Centerline Radius: N/A
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): 12.14
TechSpec Core Length (in): 26.57
TechSpec Core Thickness (in): 3.93
TechSpec Core Type: Bar-and-Plate
TechSpec Engine Codes: N/A
TechSpec Includes: (1) Universal L-Line Intercooler– Mishimoto Lifetime Warranty
TechSpec Inlet (in): 2.4
TechSpec Installation Notes: N/A
TechSpec Maximum Recommended Boost Pressure (PSI): 60
TechSpec Maximum Recommended Horsepower: 1000
TechSpec Note: N/A
TechSpec Outlet (in): 2.4
TechSpec Overall Height (in): 12.89
TechSpec Overall Length (in): 40.22
TechSpec Overall Width (in): 6
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Pipe Shape: N/A
TechSpec Weight (lbs): N/A

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: BX
Dimension: 44 x 8 x 15 inches
Weight: 31.81 PG
