McLaren 720S / 765LT Twin Intercooler Set (Superseded 8352)

CSF's McLaren 720S/765LT High-Performance Twin Intercooler Set – the new advantage for the absolute best quarter-mile traps and half-mile speeds, designed for the fastest and most powerful McLarens in the world.

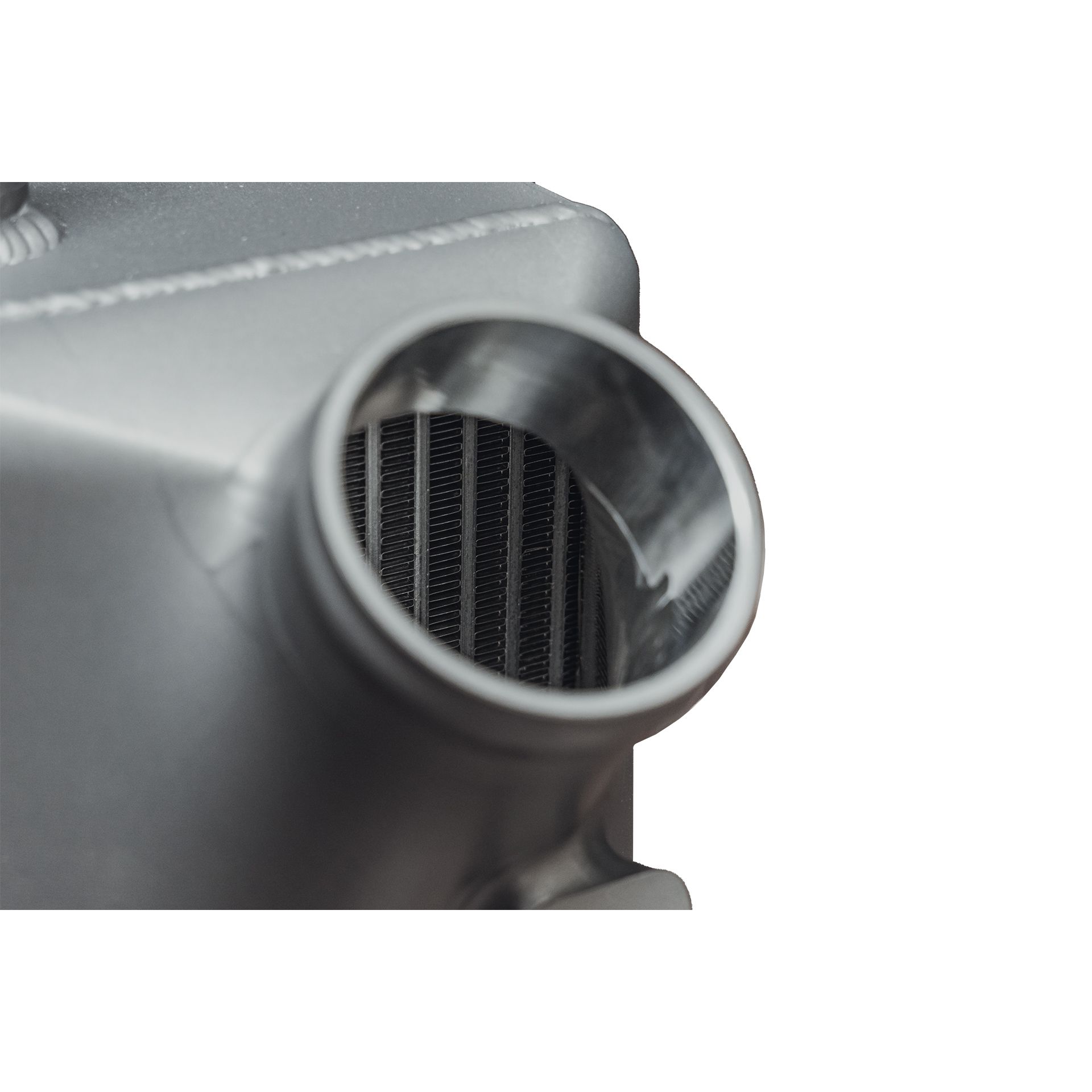

  • Custom-Spec High-Performance CSF Bar/Plate Core Built In-House
  • Made in the USA
  • 68% Increase in Core Volume vs. OEM – Efficiency Tested at 99% by M Engineering vs. OEM 94%
  • Single Core Dual-Pass Design vs. Inefficient Multiple Core Design Found in Competitors Lower Quality/Less Efficient Offerings
  • Pressure Tested to 4bar (58psi)
  • CNC Machined 6061 Aluminum Billet End Tanks Designed and Produced by RK Autowerks
  • Finished in CSF’s Aerospace-Grade Thermal Dispersion Space Grey Coating for Maximum Heat Transfer Efficiency and OEM+ Aesthetic
  • Integrated Dual 1/8-NPT Methanol Injection Bungs Positioned on Outlet Tank for Post-Intercooling Reduction of IATs – Come Pre-Plugged For Vehicles Without Methanol Injection (Can Also Be Used As Sensor Ports)
  • Complete Drop-in Fit Package With No Modifications Required for Installation (Can Be Installed From the Rear Wheel Well Without Removing the Downpipes)

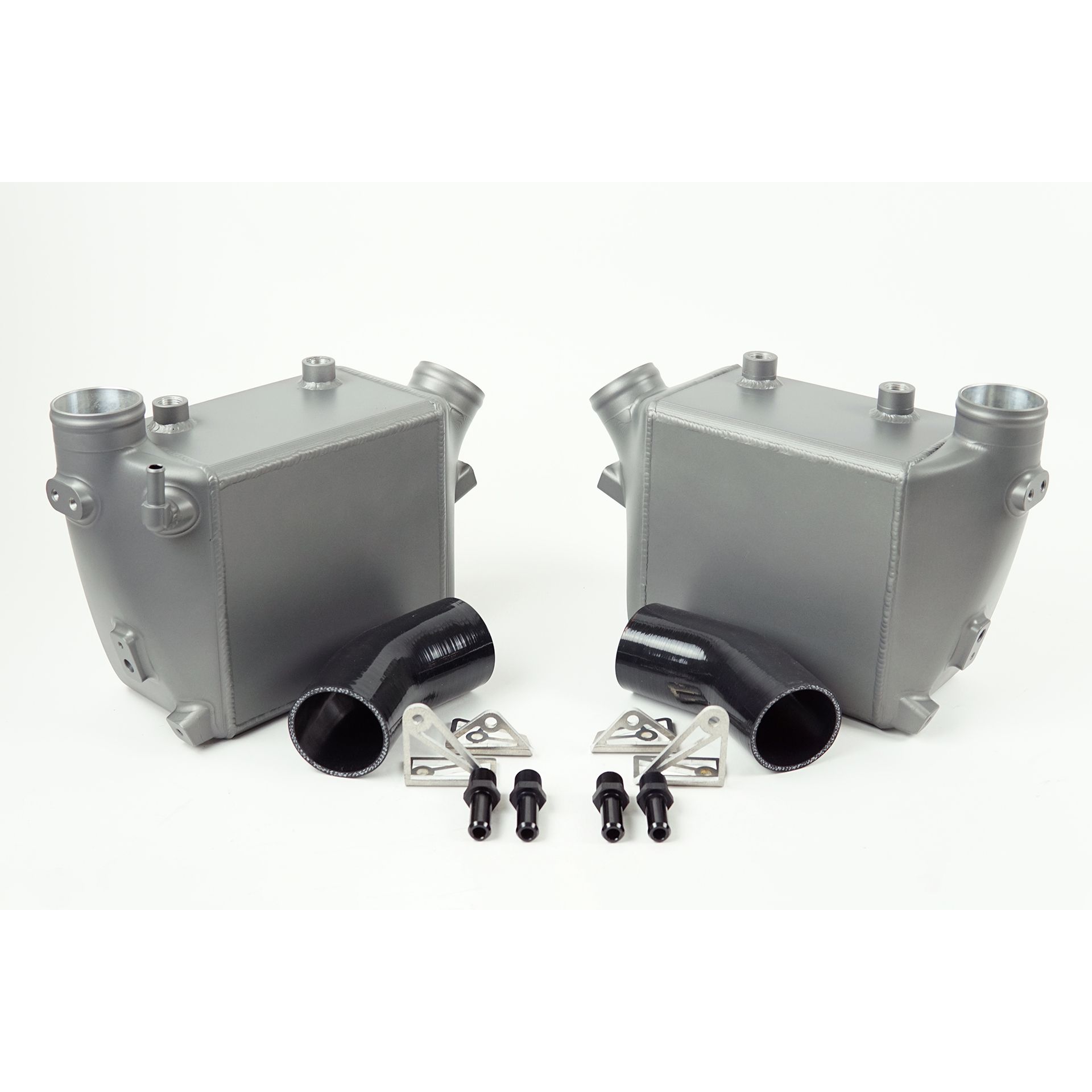

  • Includes Laser-Cut Machined Brackets and Reinforced Silicone Couplers for Throttle Body Connections
SKU GQPL-8186 Category

$ 0.00

The CSF #8186 has been superseded to the CSF #8352 to address fitment for Spider models and streamline manufacturing amid supply chain challenges. The result is an all-new, reengineered Charge-Air-Cooler system developed in partnership with CSF’s strategic partner PWR. Compact, more efficient, and now compatible with Spider models, this next-generation system sets a new benchmark in performance cooling for the McLaren 720S, 765LT, GT, plus the new 750S and GTS.

Additional Attributes:

GTIN: 00710353081860
Color: Thermal Grey Heat Dispersion Cerakote
Core Color: Raw Aluminum
Core Length: 217mm
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 160mm
Core Width: 205mm
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Outlet Type: Barbed
Prop 65 Yes/No: No
Type: Air-to-Water
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Superseded

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 18 x 12 x 18 inches
Weight: 39 PG
