McLaren 720S / 765LT / 750S / GT / GTS Charge-Air-Coolers

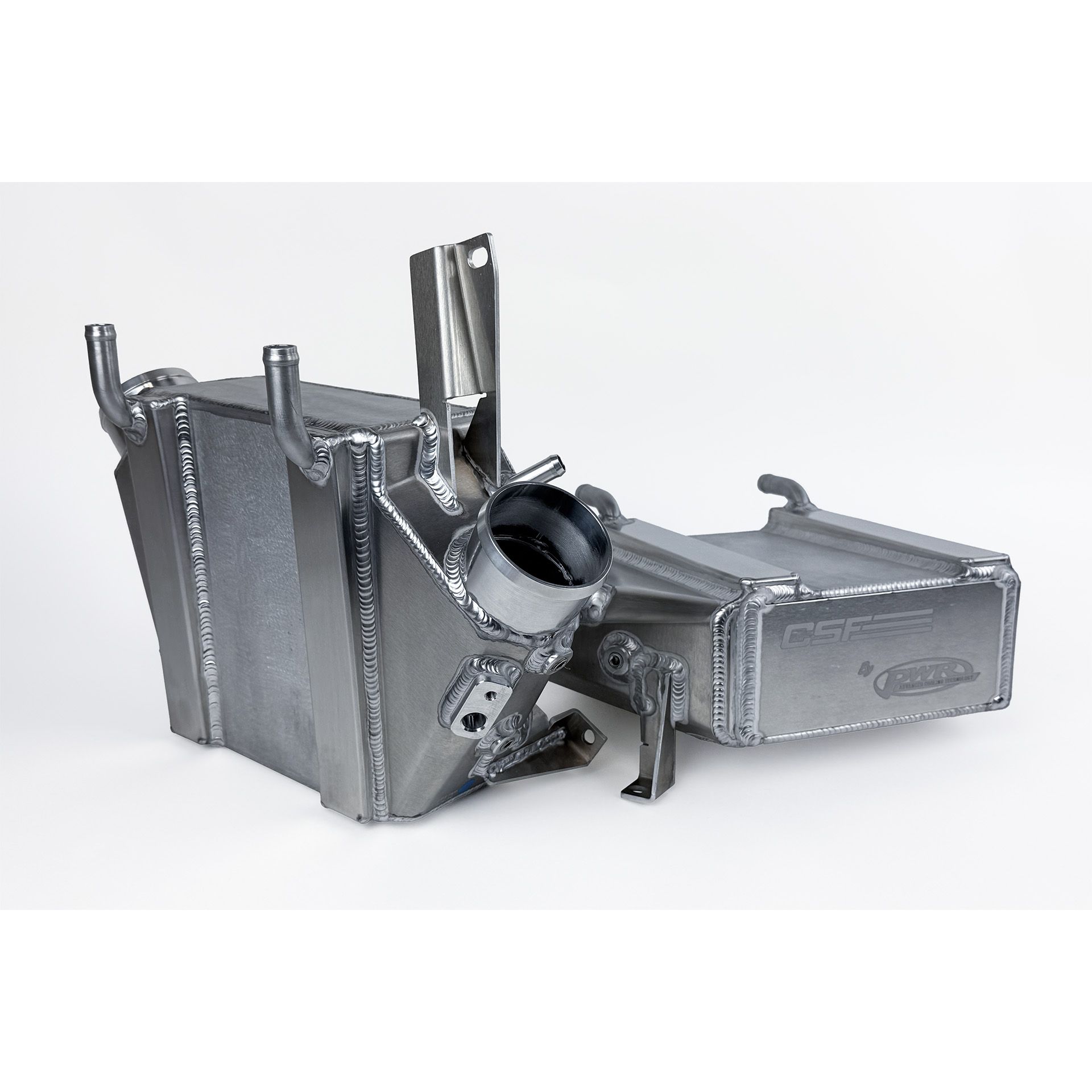

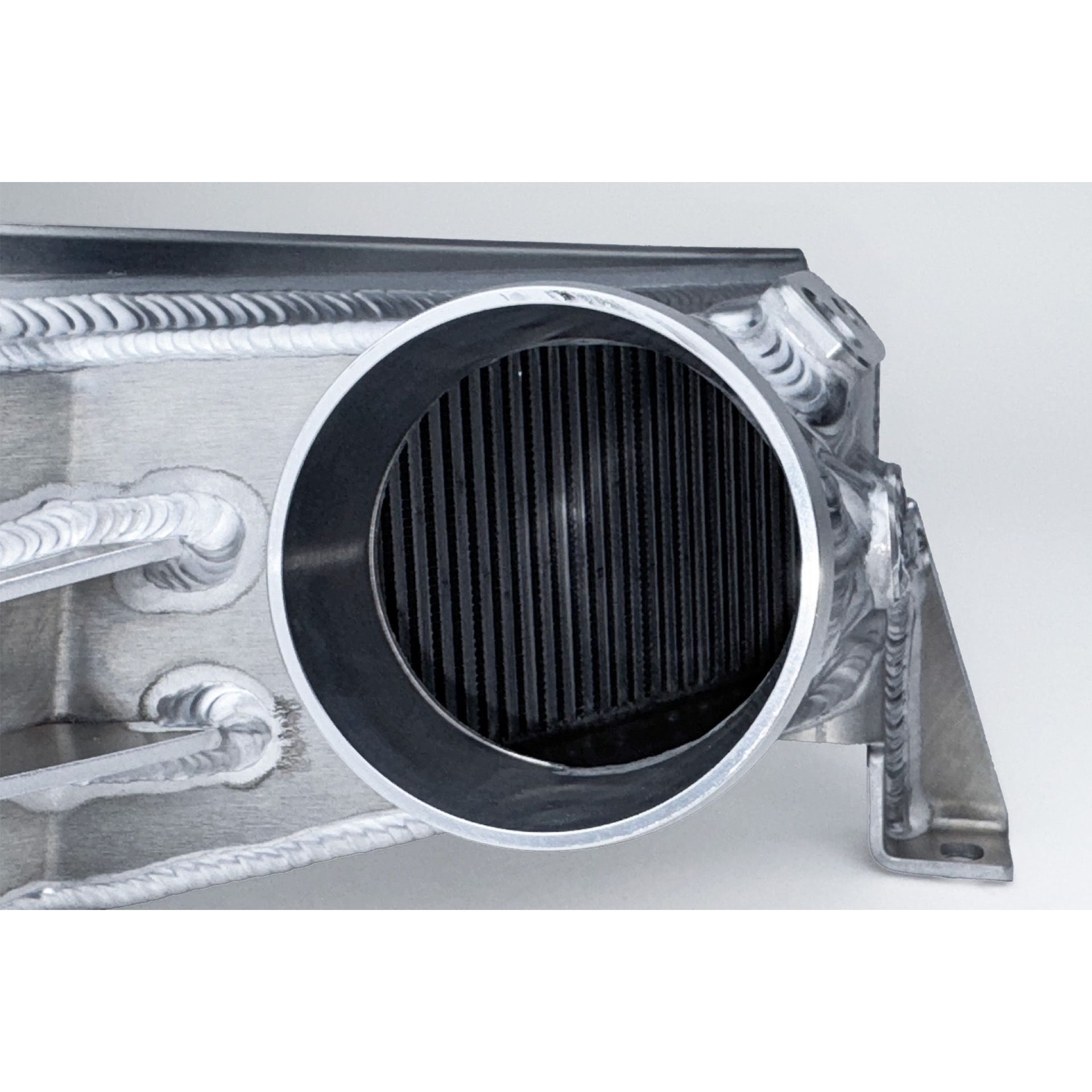

Tank Design & Construction: One of the other shortcomings of the factory coolers is their ability to handle high boost. The factory coolers are an all metal construction with extrusion formed tanks brazed to the cores. This is much stronger than the more common plastic tank with crimped-on gasket seals, but it still leaves room for improvement. The brazed joint is still a weak spot in the system and can burst at higher boost pressures. The new CSF Charge-Air-Coolers fully TIG welded the all aluminum tanks to the cores. This construction method offers the strongest possible coolers that will handle much higher boost pressures than the factory coolers.

Additional Attributes:

GTIN: 00710353083529
Color: Silver
Core Color: Silver
Core Length: 220mm
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 87mm
Core Width: 194mm
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Outlet Type: Barbed
Prop 65 Yes/No: No
Type: Air-to-Water
Universal Or Specific Fit: Specific

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 25 x 25 x 25 inches
Weight: 50 PG
