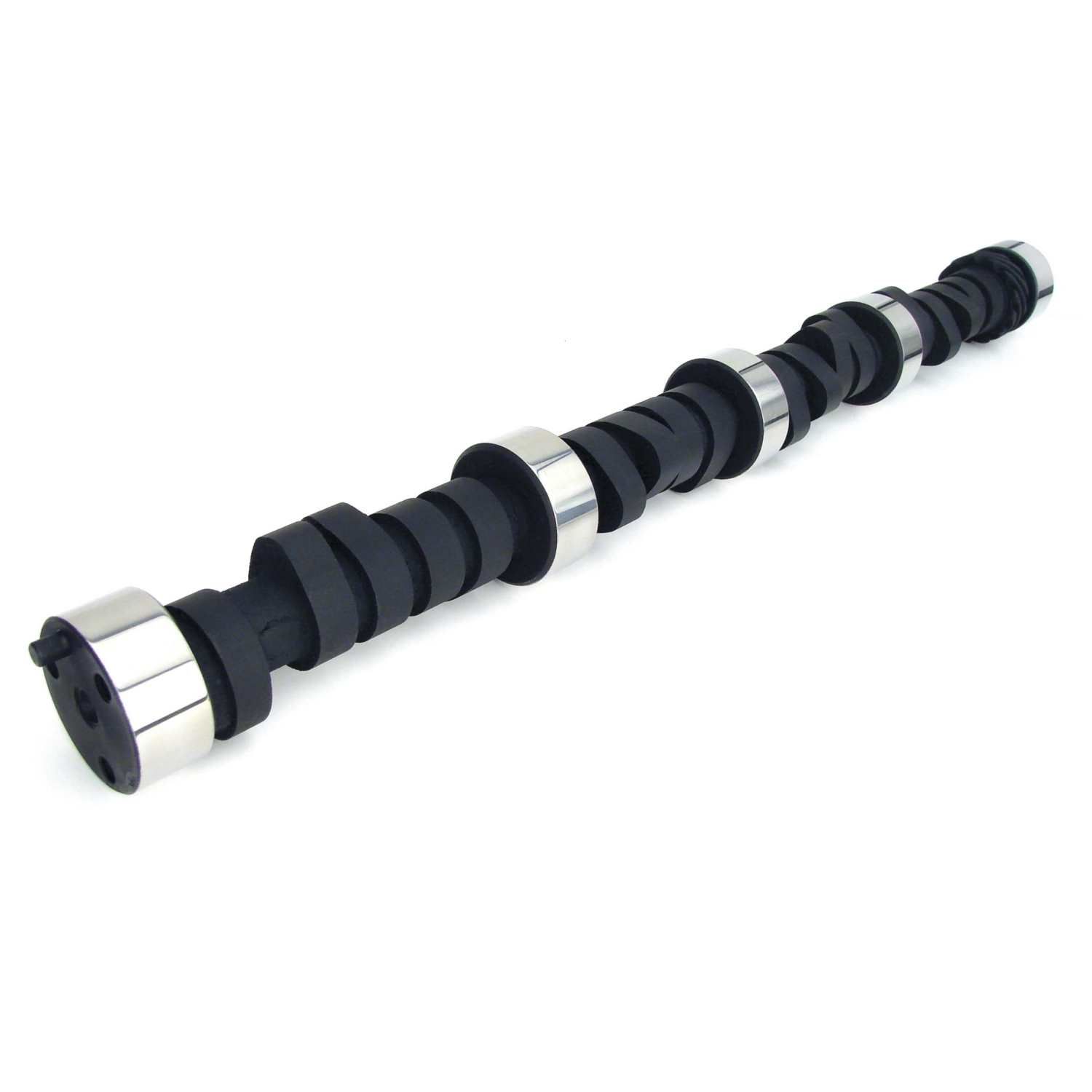

Magnum 224/224 Hydraulic Flat Cam for Chevrolet Big Block 396-454

the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.

Additional Attributes:

GTIN: 00036584520221
Grind Number: 270H
Advertised Exhaust Duration: 270
Advertised Intake Duration: 270
Amazon ASIN: B000CEQD9G
Assembly Lubricant Included: Yes
Basic Operating RPM Range: 1,500-5,800
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Cam and Lifter Kit Upgrade: CL11-207-3
Cam Type: Hydraulic Flat Tappet
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Camshaft Series: Magnum
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Exhaust Duration at .050 inch Lift: 224
Exhaust Valve Lift: 0.51
Grind Number: 270H
Intake Duration at .050 Inch Lift: 224
Intake Valve Lift: 0.51
K-Kit Upgrade: K11-207-3
Lifter Type: Hydraulic Flat Tappet
Lifters Included: No
Lobe Separation: 110
SK-Kit Upgrade: SK11-207-3
Usage: Street/Strip
Valve Springs Required: Yes

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 24.2 x 2.9 x 2.1 inches
Weight: 10.7586 PG
