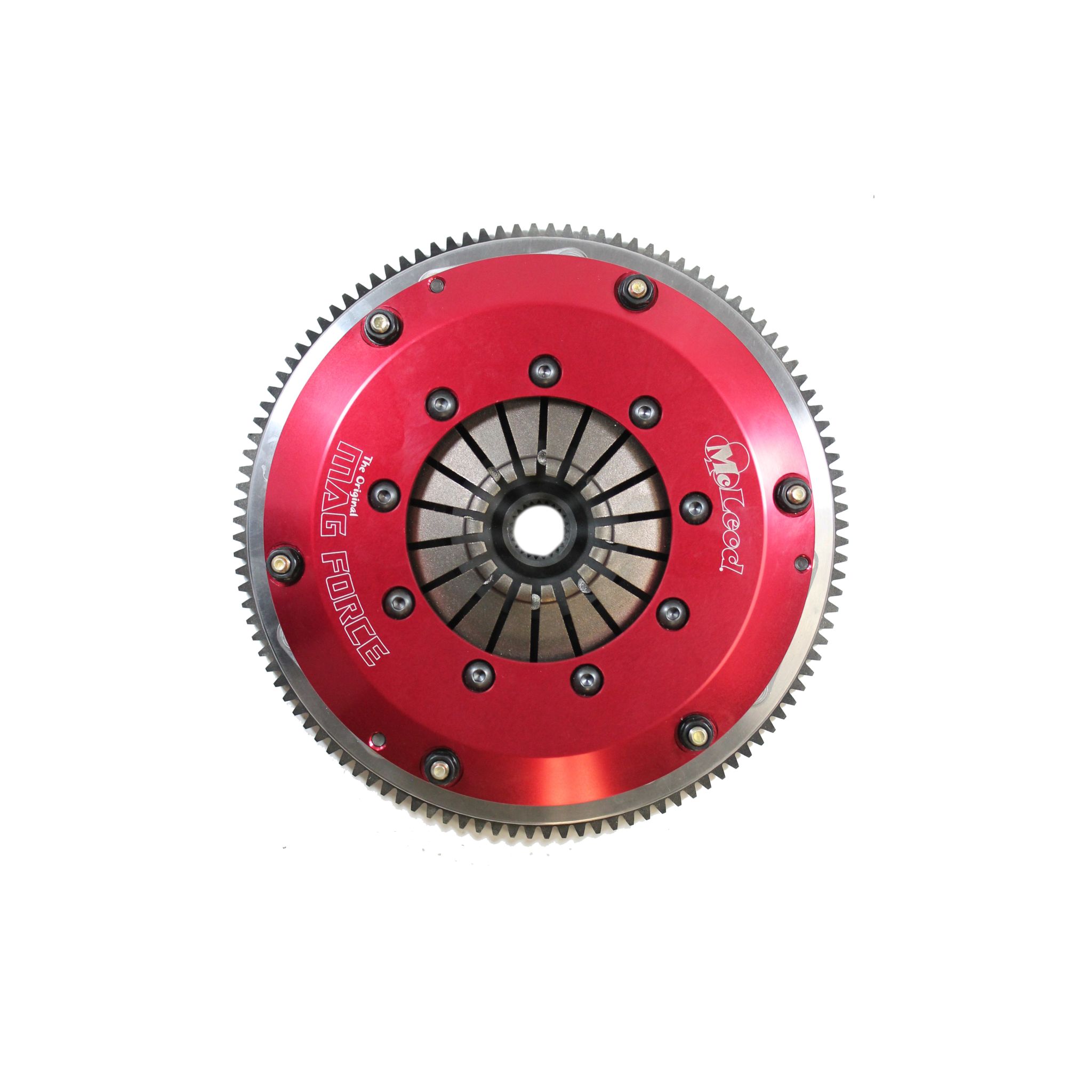

Mag ForceSE: 2 Disc: Strap Drive: BMW 2000-06 E46: 35MM x 10: 112T

Mag Force SE – Rated up to 700 HP, this clutch system is perfect for high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, ceramic discs, this is your ideal clutch for the street or Road Racing, Drag Racing and Salt Flats Time trials.

Additional Attributes:

GTIN: 00887753316141
Alignment Tool Included: Yes
Clutch Disc Quantity: 2
Clutch Usage: Performance
Disc Diameter (in.): 8.000
Disc Material: Ceramic
Disc Style: Segmented
Engine Balance: Internal
Flywheel Included: Yes
Flywheel Material: Billet aluminum
Hardware Included: Yes
Hub Style: Solid
Input Shaft Diameter (mm): 35
Input Spline Quantity: 10
Make: BMW E46
Pilot Bushing Included: No
Pressure Plate Style: Diaphragm
Quantity: Sold as a kit.
Ring Gear Tooth Quantity: 112-tooth
Throwout Bearing Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: EA
Dimension: 16 x 17 x 5.5 inches
Weight: 25 PG

PDF:

McLeodProductInstructions
